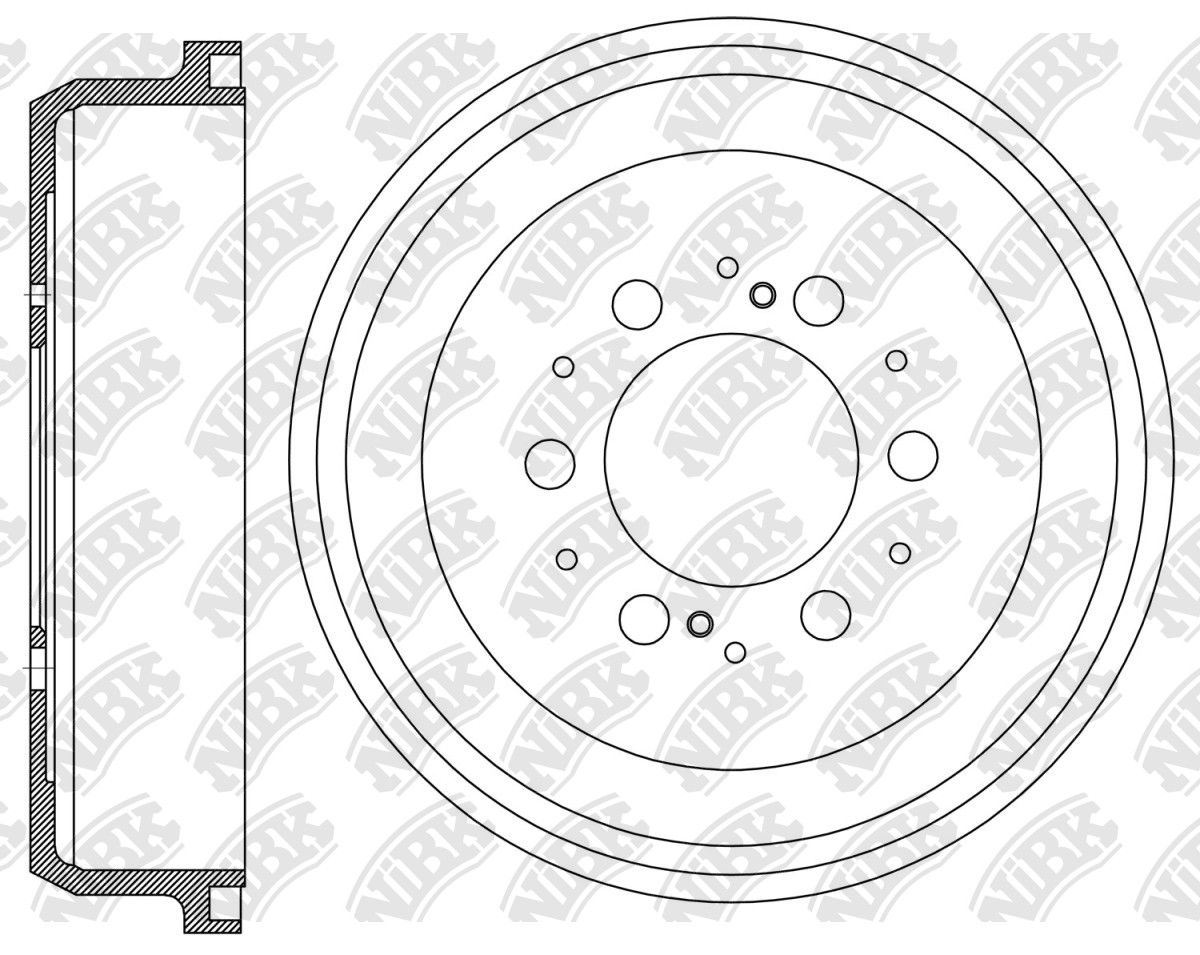

DRUM BRAKE » DN1214
Specification
Outter Ø
343
Num. of holes
6
Hole Ø
14.5
Centering Diameter
106
Height
83.1
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000
Cross Reference
TOYOTA
42431-04020
TOYOTA
42431-04030
TOYOTA
42431-35110
TOYOTA
42431-35180
TOYOTA
42431-35200
TOYOTA
42431-35210
TOYOTA
42431-60120
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.88~08.97 | 2400 | 22R-E | RN110L | RN1005V | PN1387PN1219 | DN1214 | FN2305 | |
| 11.95~11.02 | 2700 | 3RZ-FE | RZN180L | RN1128VRN1830V | PN1219PN1387 | DN1214 | FN2305 | |
| 11.95~12.02 | 2700 | 3RZ-FE | RZN185 | RN1128VRN1830V | PN1219PN1387 | DN1214 | FN2305 | |
| 11.95~12.02 | 3000 | 1KZ-T | KZN185L | RN1128VRN1830V | PN1219 | DN1214 | FN2305 | |
| 08.88~11.95 | 3000 | 3VZ-E | VZN110 | RN1005V | PN1351PN1219PN1387 | DN1214 | FN2305 | |
| 08.89~11.95 | 3000 | 3VZ-E | VZN120 | RN1005VRN1056V | PN1351PN1219 | DN1214 | FN2305 | |
| 08.88~11.95 | 3000 | 3VZ-E | VZN130 | RN1056VRN1005V | PN1351PN1387PN1219 | DN1214 | FN2305 | |
| 11.95~08.00 | 3400 | 5VZ-FE | VZN180L | RN1830VRN1128V | PN1219PN1387 | DN1214 | FN0686FN2305 | |
| 11.95~12.02 | 3400 | 5VZ-FE | VZN185 | RN1830VRN1128V | PN1387PN1219 | DN1214 | FN2305 |
| 07.01~08.07 | 2000 | 1RZ-E | RZY220 | RN1535V | PN1237 | DN1214 | FN2305FN2366FN2330FN2297FN2296 | FN2298 |
| 07.01~ | 2000 | 1TR-FE | TRY220 | RN1535V | PN1237 | DN1214 | FN2297FN2366FN2305FN2296FN2330 | FN2298 |
| 08.04~09.07 | 2500 | 2KD-FTV | KDY270 | RN1535V | PN1237 | DN1214 | FN2305 | |
| 08.04~09.07 | 2500 | 2KD-FTV | KDY280 | RN1535V | PN1237 | DN1214 | FN2362FN2296FN2305FN2297 | FN2298 |
| 09.07~ | 3000 | 1KD-FTV | KDY221 | RN1535V | PN1237 | DN1214 | FN2366FN2305FN2296FN2330FN2297 | FN2298 |
| 09.06~02.15 | 3000 | 1KD-FTV | KDY221R | RN1535V | PN1237 | DN1214 | FN2305FN2286 | |
| 07.10~ | 3000 | 1KD-FTV | KDY231 | RN1535V | PN1237 | DN1214 | FN2366FN2286FN2296FN2305FN2297 | FN2298 |
| 01.07~ | 3000 | 1KD-FTV | KDY271 | RN1535V | PN1237PN1077 | DN1214 | FN2305 | |
| 01.07~ | 3000 | 1KD-FTV | KDY281 | RN1535V | PN1237 | DN1214 | FN2362FN2305 | |
| 05.99~07.01 | 3000 | 5L | LY152 | RN1535V | PN1237 | DN1214 | FN2305FN2260 | |
| 05.99~07.01 | 3000 | 5L | LY162 | RN1535V | PN1237 | DN1214DN1107 | FN2260FN2280FN2276FN2305FN1179 | |
| 07.01~08.04 | 3000 | 5L | LY220 | RN1535V | PN1237 | DN1214 | FN2296FN2366FN2297FN2305FN2330 | FN2298 |
| 07.01~08.04 | 3000 | 5L | LY270 | RN1535V | PN1237 | DN1214 | FN2305FN2330 |
| 10.96~05.99 | 2800 | 3L | LY151 | RN1358V | PN1237 | DN1214 | FN2305 | |
| 10.96~05.99 | 2800 | 3L | LY161 | RN1358V | PN1237 | DN1214 | FN2305 |
| 01.90~12.95 | 2400 | 2L | LH118L | RN1304V | PN1237 | DN1214 | FN2305 | |
| 01.84~12.89 | 2400 | 2L | LH66LV | RN1358V | PN1237 | DN1214 | FN2305 | |
| 08.87~05.95 | 2400 | 2L | LH85 | RN1358V | PN1237 | DN1214 | FN2305 | |
| 08.89~07.99 | 2800 | 3L | LH119V | RN1304V | PN1237 | DN1214 | FN2305 | |
| 01.95~10.96 | 2800 | 3L | LY151 | RN1358V | PN1237 | DN1107DN1214 | FN2305FN2260 | |
| 04.95~10.96 | 2800 | 3L | LY161 | RN1358V | PN1237 | DN1214DN1107 | FN2260FN2305 | |
| 08.89~10.96 | 3000 | 1KZ-TE | KZH138V | RN1304V | PN1237 | DN1253DN1214 | FN2305 |
| 08.89~08.93 | 2800 | 3L | LH107 | PN1237 | DN1214 | FN2305 | ||
| 08.89~10.96 | 2800 | 3L | LH109V | RN1304V | PN1237 | DN1214DN1253 | FN2305 | |
| 10.90~08.93 | 2800 | 3L | LH117G | PN1237 | DN1214 | FN2305 | ||
| 08.93~08.98 | 2800 | 3L | LH129V | RN1304V | PN1237 | DN1214 | FN2305 | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH106 | RN1304V | PN1237 | DN1214 | FN2305 | |
| 08.93~08.04 | 3000 | 1KZ-TE | KZH116G | RN1304V | PN1237 | DN1214DN1253 | FN2305 | |
| 08.93~10.96 | 3000 | 1KZ-TE | KZH126G | RN1304V | PN1237 | DN1214DN1253 | FN2305 |
| 01.87~12.89 | 2200 | 4Y | YH66LV | RN1358V | PN1237 | DN1214 | FN2305 | |
| 01.90~12.95 | 2400 | 2RZ-FE | RZH109 | RN1304V | PN1237 | DN1214 | FN2305 |
| 08.97~08.99 | 2000 | 1RZ-E | RZN167 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.88~08.97 | 2400 | 2L | LN110L | RN1005V | PN1387PN1219 | DN1214 | FN2305 | |
| 08.97~08.01 | 2400 | 2L-T | LN165L | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~12.03 | 2400 | 2L-T | LN165R | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.91~08.97 | 2400 | 2L-TE | LN108 | RN1005V | PN1387PN1219 | DN1214 | FN2305 | |
| 08.95~08.97 | 2400 | 2L-TE | LN112 | RN1005V | PN1219PN1387 | DN1214 | FN2305 | |
| 08.97~08.99 | 2400 | 2L-TE | LN165 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~08.99 | 2400 | 2L-TE | LN170H | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.01~08.05 | 2500 | 2KD-FTV | KDN165 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.01~08.05 | 2500 | 2KD-FTV | KDN170L | RN1005V | PN1387 | DN1214 | FN2305 | |
| 05.15~ | 2500 | 2KD-FTV | KUN112 | RN2397VRN1664V | PN1803 | DN1214 | FN2402 | |
| 07.98~04.05 | 2700 | 3RZ-#E | RZN169L | RN1005V | PN1387 | DN1214 | FN2305 | |
| 07.98~04.05 | 2700 | 3RZ-FE | RZN169H | RN1005V | PN1387 | DN1214 | FN2305 | |
| 07.98~04.05 | 2700 | 3RZ-FE | RZN169R | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.91~08.97 | 2800 | 3L | LN107 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.94~08.97 | 2800 | 3L | LN109 | RN1005V | PN1387PN1219 | DN1214 | FN2305 | |
| 08.97~03.06 | 2800 | 3L | LN166L | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~03.06 | 2800 | 3L | LN166R | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.93~11.95 | 3000 | 1KZ-TE | KZN130W | RN1056V | PN1351 | DN1214 | FN2305 | |
| 08.97~03.06 | 3000 | 1KZ-TE | KZN165R | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~03.06 | 3000 | 1KZ-TE | KZN190 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 01.89~01.14 | 3000 | 1KZ-TE | KZN205L | RN1005V | PN1219PN1387 | DN1214 | FN2305 | |
| 08.97~07.04 | 3000 | 5L | LN167 | RN1005V | PN1387 | DN1214 | FN2305 | |
| 01.01~12.04 | 3000 | 5L | LN200L | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~09.09 | 3000 | 5L-E | LN167R | RN1005V | PN1387 | DN1214 | FN2305 | |
| 11.97~07.04 | 3000 | 5L-E | LN172H | RN1005V | PN1387 | DN1214 | FN2305 | |
| 08.97~03.06 | 3000 | 5L-E | LN172R | RN1005V | PN1387 | DN1214 | FN2305 |
| 04.89~08.91 | 2000 | 3Y-E | YN130G | RN1005V | PN1219PN1387 | DN1214 | FN2305 | |
| 08.91~08.93 | 2400 | 2L-TE | LN130W | RN1056V | PN1351 | DN1214 | FN2305 | |
| 07.98~11.02 | 2700 | 3RZ-FE | RZN180W | RN1128V | PN1219 | DN1214 | FN2305 | |
| 11.95~11.02 | 2700 | 3RZ-FE | RZN185W | RN1128V | PN1219 | DN1214 | FN2305 | |
| 08.00~11.02 | 3000 | 1KD-FTV | KDN185G | PN1387 | DN1214 | FN2305 | ||
| 08.00~11.02 | 3000 | 1KD-FTV | KDN185W | RN1128V | PN1219 | DN1214 | FN2305 | |
| 11.95~08.00 | 3000 | 1KZ-TE | KZN185W | RN1128V | PN1219 | DN1214 | FN2305 | |
| 07.98~11.02 | 3400 | 5VZ-FE | VZN180W | PN1387 | DN1214 | FN2305 | ||
| 11.95~11.02 | 3400 | 5VZ-FE | VZN185W | RN1128V | PN1219 | DN1214 | FN2305 |
| 04.90~04.96 | 2400 | 22R | RJ77 | RN1139V | PN1219PN0548 | DN1214 | FN2305 | |
| 01.85~12.96 | 2400 | 2L-T | LJ77L | RN1139V | PN1219PN1387 | DN1214 | FN2305 | |
| 01.90~12.96 | 2800 | 3L | LJ79RV | RN1139V | PN1387PN1219 | DN1214 | FN2305 |
| 04.97~09.02 | 2700 | 3RZ-FE | RZJ95R | RN1128V | PN1387PN1219 | DN1214RN1216V | PN1243FN2305 | FN0642 |
| 04.96~08.00 | 2800 | 3L | LJ95 | RN1128V | PN1219 | DN1214 | FN2305 | |
| 04.96~08.00 | 2800 | 3L | LJ95L | RN1128V | PN1219 | DN1214 | FN2305 |
| 09.93~07.98 | 2700 | 3RZ-F | RCK10 | PN1157 | DN1214 | FN2305 | ||
| 01.92~08.94 | 3000 | 3VZ-E | VCK20L | RN1056V | PN1351 | DN1214 | FN2305 | |
| 08.94~07.98 | 3400 | 5VZ-FE | VCK11L | PN1157 | DN1214 | FN2305FN2280FN1179 | ||
| 08.94~07.98 | 3400 | 5VZ-FE | VCK21L | RN1056V | PN1351 | DN1214 | FN2305 |
| 01.94~01.04 | 2700 | 3RZ-FE | RZN171 | RN1830V | PN1219PN1830 | DN1214 | FN2305FN0686 | |
| 08.98~09.04 | 2700 | 3RZ-FE | RZN191 | RN1830V | PN1830 | DN1214 | FN2305FN0686 | |
| 02.98~09.04 | 2700 | 3RZ-FE | RZN196 | RN1830V | PN1219PN1830 | DN1214 | FN0686FN2305 | |
| 01.95~09.04 | 3400 | 5VZ-FE | VZN170 | RN1830VRN1128V | PN1830PN1387PN1219 | DN1214 | FN0686FN2305 | |
| 02.98~12.05 | 3400 | 5VZ-FE | VZN195L | RN1830V | PN1387PN1830PN1219 | DN1214 | FN0686FN2305 |
| 02.99~12.01 | 3400 | 5VZ-FE | VCK30 | RN2354V | PN1482PN1411 | DN1253DN1213DN1214 | FN2305FN0686 | |
| 02.99~12.01 | 3400 | 5VZ-FE | VCK40L | RN2354V | PN1482PN1411 | DN1253DN1213DN1214 | FN2305FN0686 | |
| 02.99~11.01 | 4700 | 2UZ-FE | UCK30L | RN2354V | PN1411PN1482 | DN1253DN1213DN1214 | FN0686FN2305 | |
| 02.99~11.01 | 4700 | 2UZ-FE | UCK40 | RN2354V | PN1411PN1482 | DN1214DN1253DN1213 | FN2305FN0686 |
