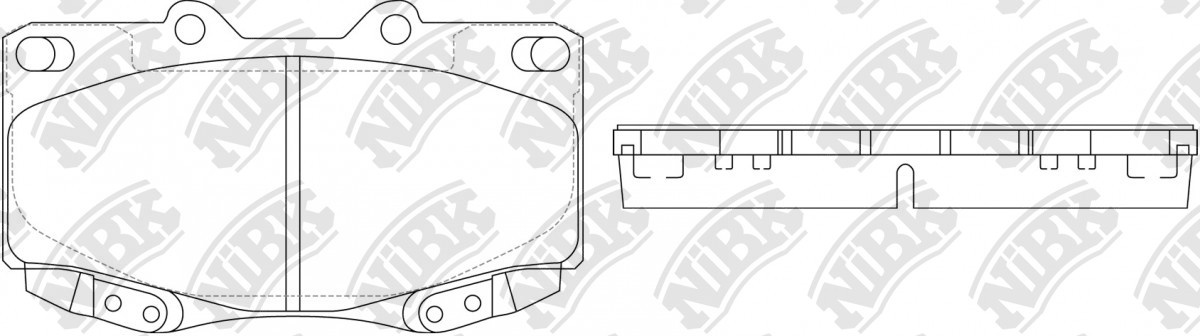

BRAKE PADS » PN1830
Specification
Length-1
119.2
Width-1
68
Thickness-1
17
Pcs In Set
4
Brake System
Sumitomo
Cross Reference
AKEBONO
AN-547WK
AKEBONO
AN-547WKT
BENDIX AUS
DB1739
FMSI
D799-7671
KASHIYAMA
D2215
TOYOTA
04465-04030
TOYOTA
04465-04050
TOYOTA
04465-04060
TOYOTA
04465-0J140
TOYOTA
04465-0K020
TOYOTA
04465-0K070
TOYOTA
04465-0K140
TOYOTA
04465-0K141
TOYOTA
04465-0K200
TOYOTA
04465-0K230
TOYOTA
04465-YZZE4
TOYOTA
0446504010
TOYOTA
044650K220
TOYOTA
04465YZZQ5
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.05~04.12 | 2500 | 2KD-FTV | KUN50 | RN1319V | PN1482PN1830 | FN0620 | ||
| 01.05~04.16 | 2500 | 2KD-FTV | KUN60L | RN1664VRN1319V | PN0548PN1482PN1830 | DN1102 | FN0620 | |
| 01.05~04.16 | 2500 | 2KD-FTV | KUN60R | RN1319V | PN1830PN1482PN0548 | DN1102 | FN0620 | |
| 01.05~04.12 | 2700 | 2TR-FE | TGN51L | RN1664V | PN1830PN1482 | DN1102 | FN0620 | |
| 01.05~08.07 | 2700 | 2TR-FE | TGN51R | RN1319V | PN1830 | FN0620 | ||
| 01.05~03.12 | 2700 | 2TR-FE | TGN61R | RN1319V | PN1830PN0548PN1482 | FN0620 | ||
| 01.05~08.08 | 3000 | 1KD-FTV | KUN51R | RN1664VRN1319V | PN1482PN1830 | FN0620 |
| 08.85~08.05 | 2400 | 2L | LN145R | RN1026VRN1475V | PN1830PN1166 | DN1209DN1215 | FN2330FN2252 | |
| 08.01~08.05 | 2500 | 2KD-FTV | KDN145 | RN1475V | PN1166PN1830 | DN1215 | FN2252 | |
| 10.05~04.15 | 2500 | 2KD-FTV | KUN10 | PN1801PN1802PN1830 | FN0620FN2335 | |||
| 02.05~12.15 | 2500 | 2KD-FTV | KUN25L | RN1319V | PN1482PN1830PN0548 | DN1102 | FN0620 | |
| 03.05~03.12 | 2500 | 2KD-FTV | KUN25R | RN1664VRN1319V | PN1830PN0548PN1482 | DN1102 | FN0620 | |
| 01.05~10.15 | 2500 | 2KD-FTV | KUN35L | RN1319V | PN1830 | FN0620 | ||
| 08.04~12.08 | 2700 | 2TR-FE | TGN26L | RN1319V | PN1830 | DN1102 | FN0620 | |
| 01.04~12.08 | 2700 | 2TR-FE | TGN36L | RN1319VRN1664V | PN1830PN1482PN0548 | FN0620 | ||
| 04.05~10.08 | 2700 | 2TR-FE | TGN36L | RN1319V | PN1830PN0548 | FN0620 | ||
| 08.04~03.12 | 3000 | 1KD-FTV | KUN26R | RN1664VRN1319V | PN1482PN1830PN0548 | DN1102 | FN0620 | |
| 01.04~10.11 | 3000 | 1KD-FTV | KUN36L | RN1319V | PN1830PN1482 | DN1102 | FN0620 | |
| 05.04~12.15 | 3000 | 1KD-FTV | KUN36R | RN1319VRN1664V | PN0548PN1830 | DN1102 | FN0620 | |
| 07.05~12.15 | 3000 | 5L-E | LAN25L | RN1319V | PN1830PN0548PN0828 | FN0620 | ||
| 04.01~10.08 | 3000 | 5L-E | LAN25R | RN1319V | PN0828PN0548PN1830 | DN1102 | FN0620 | |
| 05.05~10.08 | 3000 | 5L-E | LAN35R | RN1319V | PN1830PN0548 | DN1102 | FN0620FN2305 | |
| 02.05~ | 4000 | 1GR-FE | GGN25 | PN1830PN1802 | FN0620 |
| 01.94~01.04 | 2700 | 3RZ-FE | RZN171 | RN1830V | PN1830PN1219 | DN1214 | FN0686FN2305 | |
| 08.98~09.04 | 2700 | 3RZ-FE | RZN191 | RN1830V | PN1830 | DN1214 | FN2305FN0686 | |
| 02.98~09.04 | 2700 | 3RZ-FE | RZN196 | RN1830V | PN1830PN1219 | DN1214 | FN2305FN0686 | |
| 01.95~09.04 | 3400 | 5VZ-FE | VZN170 | RN1830VRN1128V | PN1830PN1387PN1219 | DN1214 | FN0686FN2305 | |
| 02.98~12.05 | 3400 | 5VZ-FE | VZN195L | RN1830V | PN1387PN1830PN1219 | DN1214 | FN0686FN2305 |
