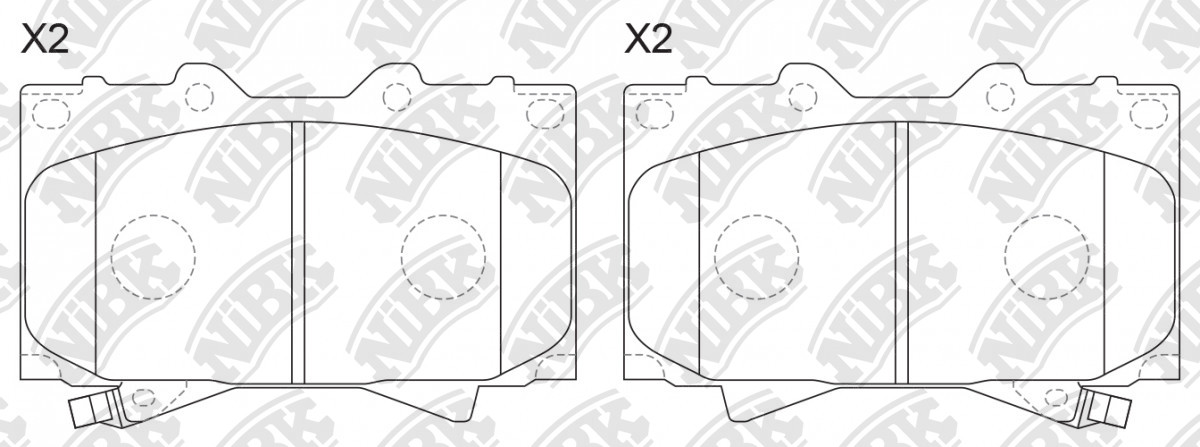

BRAKE PADS » PN1411

Specification

Length-1
119.3
Width-1
78.5
Thickness-1
17.3
Pcs In Set
4

Variation

PN1411S[NiBK]

Cross Reference

AKEBONO
A-498WK
AKEBONO
AN-498WK
BENDIX AUS
DB1365
BENDIX AUS
DB1438
BENDIX EUR
572451B
FMSI
D772
FMSI
D772-7639
FMSI
D812-7687
KASHIYAMA
D2177
KASHIYAMA
D2177M02
TOYOTA
04465-60120
TOYOTA
04465-60150
TOYOTA
04465-60151
TOYOTA
04465-60160
TOYOTA
04465-60170
TOYOTA
04465-60171
TOYOTA
04465-60190
TOYOTA
04465-60220
TOYOTA
04465-60230
TOYOTA
04465-60240
TOYOTA
04465-60250
TOYOTA
04465-60340
TOYOTA
04465-60370
TOYOTA
04465-YZZF6
TOYOTA
044650C011
TOYOTA
044650C012
TOYOTA
0446560140
TOYOTA
04465YZZCM
TOYOTA
V9118-A072
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.98~08.07 4700 2UZ-FE UZJ100 RN1224V PN1411 RN1215V PN1412 FN8905
08.23~ 2800 1GDFTV GDJ79R RN1604V PN1411 DN1225 FN2306
01.07~ 4000 1GR-FE GRJ71L RN1604V PN1411 RN1976VDN1225 FN1179FN2306PN1243FN2280 FN0642
08.14~07.15 4000 1GR-FE GRJ76K RN1604V PN1411 RN1976V PN1243 FN0642
08.12~ 4000 1GR-FE GRJ78L RN1604V PN1411 RN1976VDN1225 FN2306FN2280PN1243FN1179 FN0642
08.14~05.16 4000 1GR-FE GRJ79K RN1604V PN1411 RN1976V PN1243 FN0642
01.07~ 4000 1GR-FE GRJ79L RN1604V PN1411 RN1976V PN1243FN1179FN2280 FN0642
01.07~ 4000 1GR-FE GRJ79R RN1604V PN1411 RN1976V FN2306FN2280PN1243FN1179 FN0642
01.90~09.23 4200 1H-Z HZJ71L RN1604V PN1411 DN1225RN1976V FN2280PN1243FN2306FN1179 FN2280FN0642FN1179
08.99~08.04 4200 1H-Z HZJ71V RN1604V PN1411 DN1225 FN1179FN2280
08.99~08.04 4200 1H-Z HZJ74 RN1604V PN1411 RN1976V FN1179PN1243FN2280
08.90~01.04 4200 1H-Z HZJ74V RN1604V PN1411 DN1225 FN1179FN2280
08.99~08.04 4200 1H-Z HZJ76K RN1604V PN1411 DN1225RN1976V PN1243FN2280FN1179 FN0642
01.07~ 4200 1H-Z HZJ76L RN1604V PN1411 RN1976V FN1179PN1243FN2280 FN0642
01.07~ 4200 1H-Z HZJ76R RN1604V PN1411 RN1976VDN1225 FN1179FN2280PN1243 FN0642
08.99~08.04 4200 1H-Z HZJ76V RN1604V PN1411 DN1225 FN2280FN1179 FN0642
04.96~08.04 4200 1H-Z HZJ77 PN1411PN1219 FN1179FN2280
08.98~ 4200 1H-Z HZJ78L RN1604V PN1411 DN1225RN1976V FN2306FN1179PN1243FN2280 FN0642
08.98~ 4200 1H-Z HZJ78R RN1604V PN1411 RN1976V FN2280PN1243FN1179FN2306 FN0642
01.90~01.07 4200 1H-Z HZJ79 RN1604V PN1411 DN1225RN1976V FN2280FN1179PN1243 FN0642
08.99~09.17 4200 1H-Z HZJ79L RN1604V PN1411 RN1976VDN1225 FN2280FN2306PN1243FN1179 FN0642
08.99~ 4200 1H-Z HZJ79R RN1604V PN1411 DN1225RN1976V FN1179PN1243FN2280 FN0642
08.16~ 4200 1H-Z HZJ79R DCB RN1604V PN1411 DN1225 FN2306
08.99~07.09 4500 1FZ-FE FZJ71L RN1604V PN1411 DN1225 FN2280FN1179
01.90~07.09 4500 1FZ-FE FZJ74 RN1604V PN1411 FN1179FN2280
01.90~07.09 4500 1FZ-FE FZJ78 RN1604V PN1411 DN1225 FN2280FN1179
08.98~07.09 4500 1FZ-FE FZJ79L RN1604V PN1411 DN1225RN1976V PN1243FN1179FN2280 FN0642
01.17~09.23 4500 1VD-FTV VDJ76L RN1604V PN1411 DN1225 FN2306
01.07~09.23 4500 1VD-FTV VDJ76R RN1604V PN1411 RN1976VDN1225 PN1243FN1179FN2280 FN0642
01.07~ 4500 1VD-FTV VDJ78L RN1604V PN1411 RN1976V FN1179FN2280PN1243 FN0642
01.07~ 4500 1VD-FTV VDJ78R RN1604V PN1411 RN1976V FN2280PN1243FN1179 FN0642
05.22~ 4500 1VD-FTV VDJ79L RN1604V PN1411 DN1225 FN2306 FN0642
01.07~ 4500 1VD-FTV VDJ79R RN1604V PN1411 RN1976V PN1243FN1179FN2306FN2280 FN0642
01.98~09.07 4200 1H-Z HZJ105 RN1604V PN1411 RN1607V FN2280FN1179PN1243 FN8905
01.98~08.07 4200 1HD-FT HDJ101K RN1224V PN1411 RN1215V PN1412 FN8905
01.98~09.07 4200 1HD-FTE HDJ100L RN1224V PN1411 DN1224RN1215V PN1412FN2280FN1179 FN8905
08.00~08.07 4200 1HD-FTE HDJ100R RN1224V PN1411 RN1215V PN1412 FN8905
01.98~08.02 4200 1HD-T HDJ100R RN1224V PN1411 RN1215VDN1224 FN1179FN2280PN1412 FN8905
01.98~09.07 4500 1FZ-FE FZJ100 RN1224V PN1411 RN1215VDN1224 PN1412FN2280FN1179 FN8905
01.98~09.07 4500 1FZ-FE FZJ105L RN1604V PN1411 RN1607VDN1224 FN1179PN1243FN2280 FN8905
01.98~09.07 4500 1FZ-FE FZJ105R RN1604V PN1411 RN1607V FN2280PN1243FN1179 FN8905
01.98~09.07 4700 2UZ-FE UZJ100L RN1224V PN1411 RN1215VDN1224 FN2280FN1179PN1412 FN8905
01.98~01.04 4700 2UZ-FE UZJ100R RN1224V PN1411 RN1215V PN1412 FN8905
01.98~08.07 4700 2UZ-FE UZJ100W RN1224V PN1411 RN1215V PN1412 FN8905
01.00~09.02 4700 2UZ-FE UCK35 RN2354V PN1482PN1411 RN1216V PN1243
09.00~09.02 4700 2UZ-FE UCK45 RN2354V PN1482PN1411 RN1216V PN1243 FN0642
02.99~08.04 3400 5VZ-FE VCK30 RN2354V PN1411PN1482 DN1213DN1214DN1253 FN0686FN2305
02.99~08.04 3400 5VZ-FE VCK40L RN2354V PN1411PN1482 DN1214DN1253DN1213 FN2305FN0686
02.99~12.06 4700 2UZ-FE UCK30L RN2354V PN1411PN1482 DN1253DN1214DN1213 FN0686FN2305
02.99~12.06 4700 2UZ-FE UCK40 RN2354V PN1482PN1411 DN1214DN1253DN1213 FN0686FN2305

Exemption from liability: the catalog data is advisory and can be used for reference only
