NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1224V

ROTOR DISC » RN1224V

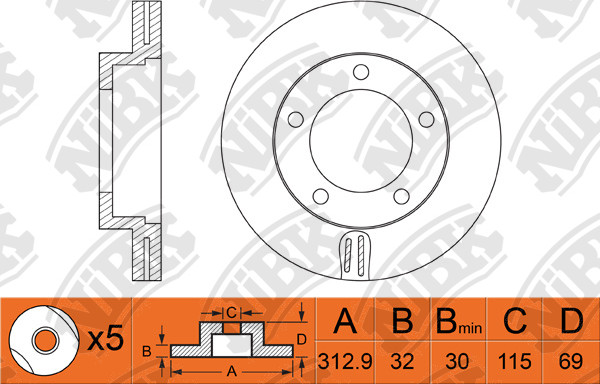

Specification

Type

Vented

Disc Thickness (Max)

32

Num. of holes

5

Height

69.7

Centering Diameter

115

Pitch Circle Ø

144

Front/Rear

Front

Outter Ø

312.9

Drum Ø:

172

Disc Thickness (Min)

29.8

Structure Material

G3000

Variation

RN1224DSET[NiBK]

Cross Reference

TOYOTA

43512-60130

TOYOTA

43512-60170

TOYOTA

43512-60171

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

LEXUS » LX470

01.98~08.07

4700

2UZ-FE

UZJ100

RN1224V

PN1411

RN1215V

PN1412

FN8905

TOYOTA » Land Cruiser 100

01.98~08.07	4200	1HD-FT	HDJ101K	RN1224V	PN1411	RN1215V	PN1412	FN8905
01.98~09.07	4200	1HD-FTE	HDJ100L	RN1224V	PN1411	RN1215V DN1224	FN2280 FN1179 PN1412	FN8905
08.00~08.07	4200	1HD-FTE	HDJ100R	RN1224V	PN1411	RN1215V	PN1412	FN8905
01.98~08.02	4200	1HD-T	HDJ100R	RN1224V	PN1411	DN1224 RN1215V	FN1179 FN2280 PN1412	FN8905
01.98~09.07	4500	1FZ-FE	FZJ100	RN1224V	PN1411	RN1215V DN1224	FN2280 PN1412 FN1179	FN8905
01.98~09.07	4700	2UZ-FE	UZJ100L	RN1224V	PN1411	RN1215V DN1224	PN1412 FN1179 FN2280	FN8905
01.98~01.04	4700	2UZ-FE	UZJ100R	RN1224V	PN1411	RN1215V	PN1412	FN8905
01.98~08.07	4700	2UZ-FE	UZJ100W	RN1224V	PN1411	RN1215V	PN1412	FN8905
