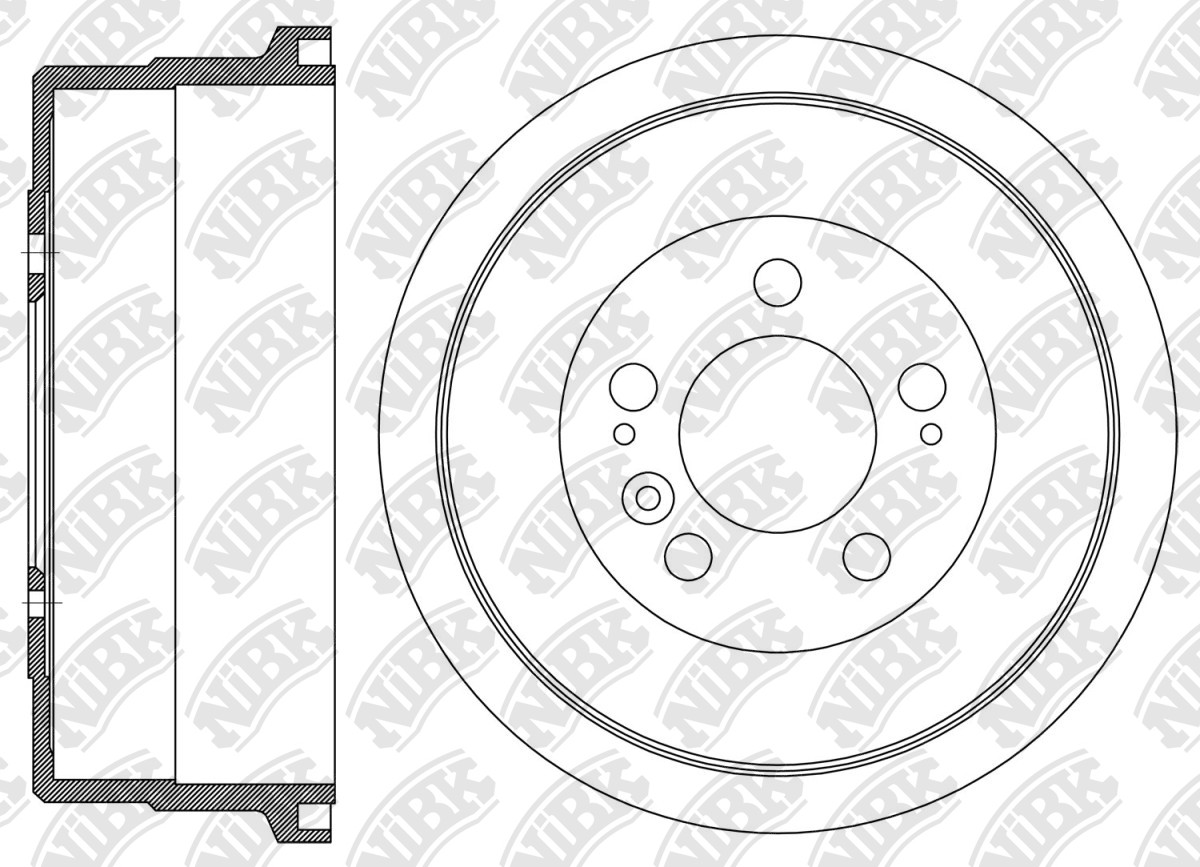

DRUM BRAKE » DN1225

DN1225

Specification

Outter Ø
345
Num. of holes
5
Hole Ø
16.6
Centering Diameter
110
Height
107.9
Pitch Circle Ø
150
Drum Ø
295
Structure Material
G3000

Cross Reference

TOYOTA
42431-60250
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Land Cruiser

08.23~ 2800 1GDFTV GDJ79R RN1604V PN1411 DN1225 FN2306
01.07~ 4000 1GR-FE GRJ71L RN1604V PN1411 DN1225RN1976V FN2306PN1243FN1179FN2280 FN0642
08.12~ 4000 1GR-FE GRJ78L RN1604V PN1411 RN1976VDN1225 FN1179FN2306FN2280PN1243 FN0642
01.90~09.23 4200 1H-Z HZJ71L RN1604V PN1411 RN1976VDN1225 FN2306PN1243FN1179FN2280 FN0642FN1179FN2280
08.99~08.04 4200 1H-Z HZJ71V RN1604V PN1411 DN1225 FN2280FN1179
08.90~01.04 4200 1H-Z HZJ74V RN1604V PN1411 DN1225 FN1179FN2280
08.99~08.04 4200 1H-Z HZJ76K RN1604V PN1411 DN1225RN1976V PN1243FN2280FN1179 FN0642
01.07~ 4200 1H-Z HZJ76R RN1604V PN1411 DN1225RN1976V PN1243FN1179FN2280 FN0642
08.99~08.04 4200 1H-Z HZJ76V RN1604V PN1411 DN1225 FN1179FN2280 FN0642
08.98~ 4200 1H-Z HZJ78L RN1604V PN1411 RN1976VDN1225 FN1179PN1243FN2280FN2306 FN0642
01.90~01.07 4200 1H-Z HZJ79 RN1604V PN1411 RN1976VDN1225 FN1179FN2280PN1243 FN0642
08.99~09.17 4200 1H-Z HZJ79L RN1604V PN1411 RN1976VDN1225 FN1179FN2306FN2280PN1243 FN0642
08.99~ 4200 1H-Z HZJ79R RN1604V PN1411 DN1225RN1976V FN2280PN1243FN1179 FN0642
08.16~ 4200 1H-Z HZJ79R DCB RN1604V PN1411 DN1225 FN2306
08.99~07.09 4500 1FZ-FE FZJ71L RN1604V PN1411 DN1225 FN2280FN1179
01.90~07.09 4500 1FZ-FE FZJ78 RN1604V PN1411 DN1225 FN2280FN1179
08.98~07.09 4500 1FZ-FE FZJ79L RN1604V PN1411 RN1976VDN1225 FN1179FN2280PN1243 FN0642
01.17~09.23 4500 1VD-FTV VDJ76L RN1604V PN1411 DN1225 FN2306
01.07~09.23 4500 1VD-FTV VDJ76R RN1604V PN1411 RN1976VDN1225 FN1179FN2280PN1243 FN0642
05.22~ 4500 1VD-FTV VDJ79L RN1604V PN1411 DN1225 FN2306 FN0642
