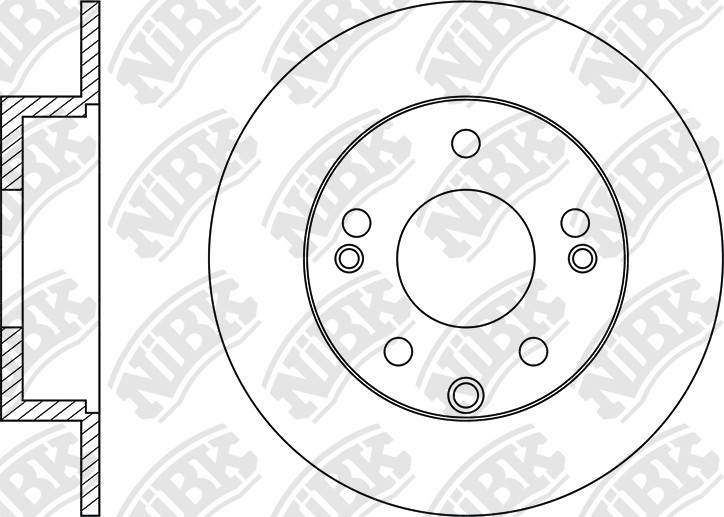

ROTOR DISC » RN1476
Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
54.3
Centering Diameter
76
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
284
Drum Ø:
168
Disc Thickness (Min)
8,4
Structure Material
G3000
Variation
Cross Reference
HYUNDAI
58411-3K100
HYUNDAI
58411-3K110
HYUNDAI
58411-3Q000
HYUNDAI
58411-3S100
HYUNDAI
584110A100
HYUNDAI
584113K150
KIA
58411-3K150
KIA
58411-3S100
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.11~07.14 | 3000 | G6DE | FH41 | RN1547VRN1644V | PN0537PN0536 | RN1476RN1601 | PN0591PN0778 | FN0716 |
| 09.11~06.16 | 3300 | G6DH | HG | RN1547VRN1644V | PN0536PN11001 | RN1476RN1601 | PN0591PN0778 | FN0716 |
| 05.14~10.16 | 2200 | D4HB | PHG15 | RN1644V | PN0799 | RN1476RN1601 | PN0591PN0778 | FN0716 |
| 11.11~06.14 | 3000 | L6DB | PHG11 | RN1547V | PN0536 | RN1476 | PN0591 | FN0716 |
| 09.06~12.07 | 2000 | D4EA | NF04 RHD | RN1348V | PN0377 | RN1476 | PN0591PN0539 | FN11004 |
| 09.04~09.06 | 2000 | D4EA | PA04 LHD | RN1348V | PN0377 | RN1476 | PN0539 | FN11004 |
| 09.04~12.07 | 2000 | G4KA | NF | RN1348VRN1174V | PN0377 | RN1386RN1476 | PN0539 | FN11004 |
| 12.07~01.13 | 2000 | D4EA | NF | RN1348V | PN0377 | RN1476 | PN0591 | FN11004 |
| 12.07~10.10 | 2400 | G4KE | EU41 LHD | RN1348V | PN0377 | RN1476 | PN0591 | FN11004 |
| 09.09~06.14 | 2000 | G4KH | PGFA10 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 07.12~04.14 | 2000 | G4NE | YF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 09.09~07.12 | 2400 | G4KJ | PGFA10 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 09.09~03.14 | 2400 | G4KJ | YF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 11.10~07.12 | 2400 | G4KK | PGFE11 US | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 04.14~03.17 | 1700 | D4FD | PC114 LHD | RN1653V | PN0578 | RN1476 | PN0436 | FN11008 |
| 04.14~07.17 | 2400 | G4KJ | PC215 US/CND | RN1653V | PN0052PN0578 | RN1476 | PN0436 | FN11008 |
| 01.09~01.16 | 2400 | G4KJ | PJG08 | RN1547V | PN0052 | RN1476 | PN0436 | |
| 01.09~03.11 | 2700 | G6EA | PJG08 | RN1547V | PN0052 | RN1476 | PN0436 | |
| 01.09~01.16 | 3500 | G6DC | PJG08 | RN1547V | PN0052 | RN1476 | PN0436 |
| 02.18~01.20 | 1700 | D4FD | PD418 | RN1653V | PN0578PN0739 | RN1476 | PN0436 | FN11008 |
| 05.10~06.13 | 2400 | G4KJ | PTF11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 01.09~01.16 | 2400 | G4KJ | VG | RN1547V | PN0052 | RN1476 | PN0436 | |
| 01.09~03.11 | 2700 | G6EA | VG | RN1547V | PN0052 | RN1476 | PN0436 | |
| 01.16~06.19 | 3000 | L6DB | YG | RN1547V | PN0955 | RN1476 | PN0956 | FN11008 |
| 01.09~01.16 | 3500 | G6DC | PJG08 | RN1547V | PN0052 | RN1476 | PN0436 |
| 03.12~ | 2000 | G4KD | GN | RN1644V | PN11001PN0739 | RN1476 | PN0591 | FN0716 |
| 01.10~01.13 | 2000 | G4KD | PTF11 RHD | RN1174VRN1644V | PN11001PN0635 | RN1307RN1476 | PN0591 | FN0716 |
| 03.10~09.13 | 2000 | G4NA | PTF11 LHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
| 10.15~04.18 | 2000 | G4ND | PD416 LHD | RN1653VRN1644V | PN0578 | RN1601RN1476 | PN0436PN0538 | FN11008 |
| 02.18~01.20 | 2000 | G4ND | PD418 | RN1653VRN1644V | PN0578 | RN1476RN1601 | PN0538PN0436 | FN11008 |
| 03.10~03.14 | 2000 | G4NE | PTFE11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 03.10~09.13 | 2400 | G4KE | PTF11 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
| 04.13~03.16 | 2400 | G4KE | PTF14 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
| 10.15~02.18 | 2400 | G4KJ | PD416 | RN1653V | PN0578 | RN1476 | PN0436 | FN11008 |
| 10.15~02.18 | 2400 | G4KJ | PD516 | RN1653V | PN0578 | RN1476 | PN0436 | |
| 03.10~09.13 | 2400 | G4KJ | PTF11 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 12.11~09.13 | 2400 | G4KJ | TFA12 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 04.13~02.16 | 2400 | G4KJ | TFA14 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 04.13~02.16 | 2400 | G4KK | PTFE14 | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
| 03.10~09.13 | 2400 | G4KK | TF | RN1348V | PN0536 | RN1476 | PN0591 | FN0716 |
