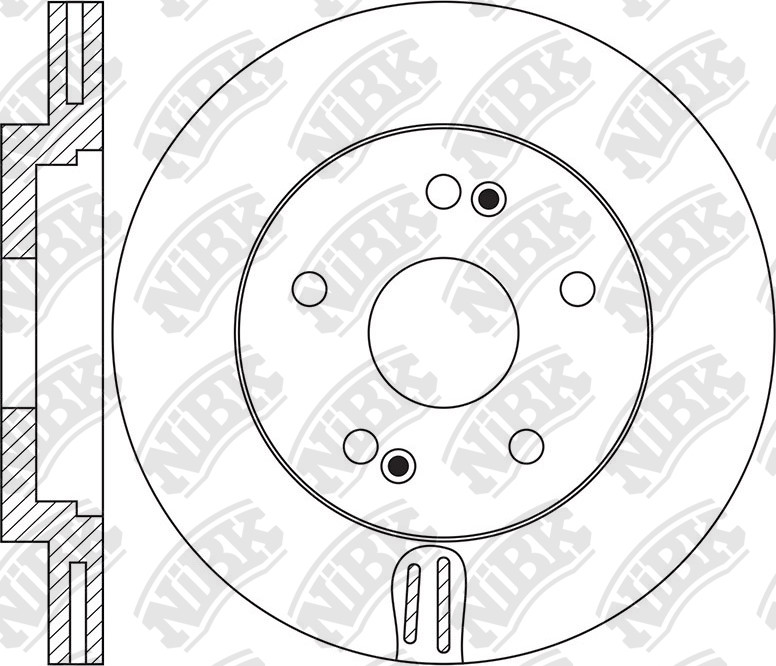

ROTOR DISC » RN1653V
Specification
Type
Vented
Front/Rear
Front
Outter Ø
305
Num. of holes
5
Disc Thickness (Max)
25
Height
46.8
Centering Diameter
69
Pitch Circle Ø
114.3
Drum Ø:
145
Disc Thickness (Min)
23
Structure Material
G3000
Cross Reference
HYUNDAI
51712-C1000
HYUNDAI
51712-C2000
HYUNDAI
51712-D7000
HYUNDAI / KIA
51712-J9100
HYUNDAI / KIA
51712-N7050
KIA
51712-D7000
KIA
51712-M7100
years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
---|
10.16~ | 1400 | G4LC | PG417 LHD | RN1653VRN1562V | PN0796PN0592 | RN2115 | PN0538PN0795 | |
10.16~ | 1400 | G4LD | PG417 LHD | RN1653VRN2114V | PN0796 | RN1601RN2115 | PN0538PN0795 | |
10.16~ | 1400 | G4LD | PG417 RHD FB | RN1653V | PN0796 | RN1601 | PN0538 | |
10.16~ | 1400 | G4LD | PG417 RHD HB | RN1653VRN2114V | PN0796 | RN1601RN2115 | PN0795PN0538 |
02.20~ | 1000 | G3LE | PG420 RHD WGN SG | RN1653V | PN0796 | RN1601 | PN0538 | |
10.16~ | 1400 | G4LD | PD | RN1653V | PN0796 | RN2115RN1601 | PN0795PN0538 |
02.18~10.20 | 150kW | HK281 RHD | RN1653V | PN0578 | RN2450 | PN0538 | ||
02.18~10.20 | 150kW | HK381 LHD KOREA | RN1653V | PN0578 | RN2450 | PN0538 | ||
10.20~ | EM16M 150KW | HK281 RHD | RN1653V | PN0578 | RN2450 | PN0538 | ||
08.18~ | 1600 | D4FE | RN1644VRN1653V | PN0373PN0052 | RN1549RN2229 | PN0436 | ||
07.17~ | 1600 | G4FJ | RN1653VRN1644V | PN0052 | RN2229RN1549 | PN0436 | ||
01.19~ | 1600 | G4LE | PCZ19 RHD | RN1653V | PN0578 | RN1601 | PN0538 | |
06.17~ | 2000 | G4NH | PJ918 LHD US | RN1653V | PN0578 | RN2229 | PN0436 |
07.17~09.20 | 1000 | G3LC | PJ918 | RN1548VRN1653V | PN0373PN0052 | RN1549 | PN0436 | |
07.17~09.20 | 1600 | G4FJ | PJ918 | RN1653V | PN0578 | RN1947 | PN0436 |
04.14~03.17 | 1700 | D4FD | PC114 LHD | RN1653V | PN0578 | RN1476 | PN0436 | FN11008 |
04.14~07.17 | 2400 | G4KJ | PC215 US/CND | RN1653V | PN0052PN0578 | RN1476 | PN0436 | FN11008 |
03.17~01.20 | 2000 | G4NG | RPE617 | RN1653V | PN0578 | PN0538 | ||
03.17~01.20 | 2400 | G4KE | PC117 LHD | RN1174VRN1653V | PN0704PN0578 | RN1476RN1601RN1307 | PN0436PN0538 | FN11008 |
09.20~ | 2000 | D4HD | PTLI20 | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
09.20~ | 2000 | G4NJ | PTLI20 | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
09.20~ | 2000 | G4NL | PGT22 | RN2399VRN1653V | PN6120PN6137 | RN2331 | PN6139PN6121 | |
09.20~ | 2500 | G4KN | PGT22 GL | RN1653V | PN6120 | RN2331 | PN6121PN6139 |
04.15~08.18 | 1600 | G4FJ | PD315 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
04.15~08.18 | 1700 | D4FD | PD315 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 2000 | D4HA | PD315 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
04.15~08.18 | 2000 | G4NA | PD315 LHD | RN1653V | PN0661 | RN2001RN1996 | PN0538PN0591 | FN0697 |
04.15~08.18 | 2000 | G4NA | PD315 RHD | RN1653V | PN0661 | RN2001RN1996 | PN0591PN0538 | FN0757FN0697 |
04.15~08.18 | 2000 | G4NC | PD315 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 2000 | G4NC | PD315 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 1600 | G4FD | PD716 | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
04.15~08.18 | 1600 | G4FJ | PD716 | RN1653V | PN0661PN0578 | RN2001 | PN0538 | FN0697FN0757 |
04.15~08.18 | 1600 | G4FJ | PD716 EU RHD | RN1653V | PN0578 | RN2001 | PN0538 | |
04.15~08.18 | 1700 | D4FD | PD716 EU LHD | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
04.15~08.18 | 2000 | D4HA | PD716 | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
04.15~08.18 | 2000 | D4HA | PD716 EU LHD | RN1653V | PN0578 | RN2001 | PN0538 | |
04.15~08.18 | 2000 | G4NA | PD716 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
04.15~08.18 | 2000 | G4NA | PD716 RUS | RN1653V | PN0578 | RN2001RN1996 | PN0436PN0538 | FN0757 |
01.18~03.21 | 1600 | D4FE | PD318 LHD KDOM | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 1600 | D4FE | PD718 EU | RN1653V | PN0578 | RN1996RN2001 | PN0436PN0538 | FN0757 |
01.18~09.20 | 1600 | G4FD | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 1600 | G4FJ | PD318 RHD | RN1653V | PN0661 | RN2001RN1996 | PN0591PN0538 | FN0697 |
01.18~09.20 | 1600 | G4FU | NX4 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 2000 | D4HA | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 2000 | G4NA | PD318 | RN1653V | PN0661 | RN1996 | PN0591PN0538 | FN0697 |
01.18~09.20 | 2000 | G4NA | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.18~09.20 | 2000 | G4NA | PD718 RUS | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
08.18~09.20 | 2000 | G4NC | PD318 RHD AU | RN1653V | PN0661 | RN2001 | PN0538PN0591 | FN0697 |
01.18~09.20 | 2400 | G4KJ | PD718 GEN | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
02.18~ | 1000 | G3LC | HB/SW/PRO | RN1562VRN2114VRN1653V | PN0796PN0578 | RN2115RN1601 | PN0538PN0795 | |
02.18~ | 1400 | G4LC | HB/SW/PRO | RN1653VRN1562VRN2114V | PN0592PN0796 | RN2115RN1601 | PN0538PN0795 | |
02.18~ | 1400 | G4LD | HB/SW/PRO | RN2114VRN1653VRN1562V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 | |
02.20~ | 1500 | G4LH | HB/SW/PRO | RN1562VRN2114VRN1653V | PN0592PN0796 | RN2115RN1601 | PN0538PN0795 | |
02.18~ | 1600 | D4FE | HB/SW/PRO | RN2114VRN1653VRN1562V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 | |
02.18~11.21 | 1600 | G4FG | PJ718 WGN RU | RN1653V | PN0796 | RN2115 | PN0538PN0795 | |
02.18~ | 1600 | G4FJ | HB/SW/PRO | RN1653VRN1562VRN2114V | PN0796PN0578 | RN1601RN2115 | PN0795PN0538 |
04.18~04.21 | 1600 | G4FJ | HB - 5DR 5P | RN1653V | PN0578 | RN2233 | PN0538 | |
04.18~04.21 | 1600 | G4FJ | SEDAN - 4DR 5P | RN1653V | PN0578 | RN2233 | PN0538 |
10.15~04.18 | 2000 | G4ND | PD416 LHD | RN1644VRN1653V | PN0578 | RN1476RN1601 | PN0436PN0538 | FN11008 |
02.18~01.20 | 2000 | G4ND | PD418 | RN1653VRN1644V | PN0578 | RN1601RN1476 | PN0538PN0436 | FN11008 |
03.16~ | 2000 | G4NG | PA816 | RN1653V | PN0578 | RN1601 | PN0538 | |
10.15~02.18 | 2400 | G4KJ | PD416 | RN1653V | PN0578 | RN1476 | PN0436 | FN11008 |
10.15~02.18 | 2400 | G4KJ | PD516 | RN1653V | PN0578 | RN1476 | PN0436 |
06.19~ | 1600 | G4FJ | PTH19 | RN1653V | PN0578 | RN1947 | PN6136 | |
06.19~ | 2000 | G4NH | PTH19 | RN1548VRN1653V | PN0373PN0578PN0799 | RN1549RN2229 | PN6136PN0436PN0538 |
07.18~07.21 | 1600 | D4FE | PD919 | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.19~07.21 | 1600 | D4FE | PF119 LHD | RN1653VRN1644V | PN0578 | RN1996RN2001 | PN0538PN0436 | FN0757 |
04.21~ | 1600 | D4FE | PHW22 RHD | RN1653V | PN6120 | RN2331 | PN6139 | |
01.19~07.21 | 1600 | G4FD | P#814 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0757FN0697 |
10.15~01.19 | 1600 | G4FD | PF116 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 1600 | G4FD | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
01.19~07.21 | 1600 | G4FD | PF119 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 1600 | G4FJ | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591PN0538 | FN0697 |
10.15~01.19 | 1600 | G4FJ | PF116 RU | RN1653V | PN0578 | RN2001 | PN0538 | FN0757 |
05.18~07.21 | 1600 | G4FJ | PF119 RHD | RN1653V | PN0661 | RN1996RN2001 | PN0591PN0538 | FN0697 |
10.15~01.19 | 1700 | D4FD | PD916 LHD | RN1653V | PN0578PN0661 | RN1996 | PN0591PN0436 | FN0697FN0757 |
10.15~01.19 | 2000 | D4HA | PD916 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | D4HA | PD916 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | D4HA | PD919 LHD | RN1653V | PN0661 | RN1996 | PN0591PN0436 | FN0697 |
10.15~01.19 | 2000 | D4HA | PF116 LHD | RN1653V | PN0578PN0661 | RN1996 | PN0436PN0591 | FN0697FN0757 |
10.15~01.19 | 2000 | D4HA | PF116 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | G4NA | PD916 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | G4NA | PD916 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | G4NA | PD919 LHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
05.18~08.21 | 2000 | G4NA | PD919 RHD | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
10.15~01.19 | 2000 | G4NA | PF116 RU | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
07.21~ | 2000 | G4NL | PHW22 LHD | RN1653V | PN6120 | RN2331 | PN6139 | |
10.15~11.18 | 2400 | G4KJ | PD916 RHD | RN1653V | PN0661 | RN2001 | PN0538 | |
10.15~11.18 | 2400 | G4KJ | PD916 US | RN1653V | PN0661 | RN1996 | PN0591 | FN0697 |
11.18~ | 2400 | G4KJ | PF119 RUS | RN1653V | PN0578 | RN1996 | PN0436 | FN0757 |
