ROTOR DISC » RN1549

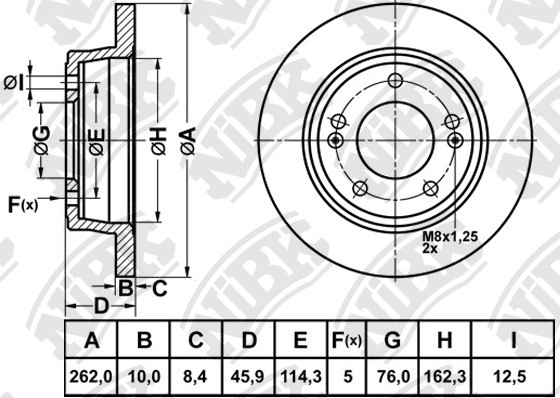

Specification
Type
Solid
Outter Ø
262
Num. of holes
5
Disc Thickness (Max)
10
Height
45.9
Centering Diameter
76
Pitch Circle Ø
114.3
Front/Rear
Rear
Drum Ø:
162
Disc Thickness (Min)
8.4
Structure Material
G3000
Cross Reference
HYUNDAI
58411-3Y300
HYUNDAI
58411-A6300
HYUNDAI / KIA
58411-3X300
KIA
58411-3X300
years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
---|
08.10~08.13 | 1600 | G4FD | PSD11 LHD KDOM | RN1548V | PN0537 | RN1549 | PN0538 | |
01.10~12.13 | 1600 | G4FG | PSD11 LHD | RN1548V | PN0537 | DN1106RN1549 | PN0538FN0609 | |
01.10~01.15 | 1600 | G4FG | PSD11 RHD | RN1548V | PN0537 | DN1106RN1549 | FN0609PN0538 | |
09.11~07.13 | 1800 | G4NB | PSD11 LHD | RN1548V | PN0537 | DN1106RN1549 | PN0538FN0609 |
08.13~08.15 | 1600 | D4FB | MD | RN1548V | PN0537 | RN1549 | PN0538 | |
07.13~09.15 | 1600 | G4FG | MD | RN1548V | PN0537 | RN1549 | PN0538 | |
07.13~09.15 | 1800 | G4NB | MD | RN1548V | PN0537 | RN1549 | PN0538 | |
01.14~01.16 | 1800 | G4NB | PSDA14 US | RN1548V | PN0537 | RN1549 | PN0538 | |
07.13~09.15 | 2000 | G4NA | MD | RN1548V | PN0537 | RN1549 | PN0538 |
09.15~07.19 | 1600 | D4FB | AD | RN1548V | PN0772 | RN1549 | PN0538 | |
09.15~07.19 | 1600 | D4FB | RPF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
09.15~07.19 | 1600 | G4FG | PF216 LHD | RN1548V | PN0772 | RN1549 | PN0538 | |
09.15~07.19 | 1600 | G4FG | PF216 RHD | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
09.15~07.19 | 1600 | L4FA | PF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
09.15~07.19 | 2000 | G4NA | AD | RN1548V | PN0772 | RN1549 | PN0538 |
08.18~08.20 | 1600 | G4FG | AD | RN1548V | PN0772 | RN1549 | PN0538FN0609 | |
08.18~08.20 | 2000 | G4NA | PF219 RHD | RN1548V | PN0772 | RN1549 | PN0538FN0609 | |
08.18~08.20 | 2000 | G4NH | AD | RN1548V | PN0772 | RN1549 | PN0538FN0609 |
08.16~05.21 | 1600 | G4FG | M017 RU | RN1348VRN1548V | PN0373 | RN2086RN1549 | PN0436 | |
07.21~ | 1600 | G4FG | PFZ21 | RN1562VRN1348V | PN0799PN0958 | RN1601RN1549RN2233 | PN0538 | |
08.16~05.21 | 2000 | G4NA | M017 RU | RN1348V | PN0373 | RN1549RN2086 | PN0436 | |
03.20~10.21 | 2000 | G4NA | M017 RU | RN1548VRN1348V | PN0373 | RN1549RN2086 | PN0436 | |
07.21~ | 2000 | G4NL | PFZ21 | RN1348V | PN0799 | RN1601RN2233RN1549 | PN0538 |
09.15~ | 1600 | G4FG | AD LHD PR | RN1548V | PN0772 | DN1106RN1549 | FN0609PN0538 | |
02.19~ | 2000 | G4NH | PF319 MEX | RN1548V | PN0772 | RN1549 | PN0538 |
01.15~07.17 | 1600 | D4FB | PA616 5DR RHD | RN1562V | PN0592PN0537 | RN1549 | PN0538 | |
09.11~03.15 | 1600 | G4FD | D351 | RN1547VRN1562V | PN11001PN0537 | RN1549RN1563 | PN0538 | |
09.11~04.15 | 1600 | G4FD | PA612 5DR | RN1562V | PN0537 | RN1549 | PN0538 | |
04.15~02.17 | 1600 | G4FG | D351 | RN1562V | PN0537 | RN1549 | PN0538 | |
09.11~03.15 | 1600 | G4FG | D351 5DR RHD | RN1548V | PN0537 | RN1549 | PN0538 | |
01.12~03.15 | 1600 | G4FG | PA612 3DR | RN1562V | PN0537 | RN1549 | PN0538 | |
01.15~07.17 | 1600 | G4FG | PA616 5DR LHD | RN1562V | PN0537 | RN1549 | PN0538 | |
01.15~07.17 | 1600 | G4FJ | PA616 5DR LHD | RN1547VRN1562V | PN0739 | RN1549 | PN0538 | |
09.11~03.15 | 1800 | G4NB | PA512 RHD | RN1548V | PN0537 | RN1549 | PN0538 |
09.20~ | 1000 | G3LE | PJ921 RHD | RN1548V | PN0373 | RN1549 | PN0436 | |
08.18~ | 1600 | D4FE | RN1644VRN1653V | PN0373PN0052 | RN2229RN1549 | PN0436 | ||
07.17~ | 1600 | G4FJ | RN1653VRN1644V | PN0052 | RN1549RN2229 | PN0436 | ||
09.20~ | 2000 | G4NS | PJ921 LHD | RN1548V | PN0373 | RN1549 | PN0436 |
01.12~01.15 | 1600 | G4FD | TC61D | RN1548V | PN0537 | RN1549 | PN0538 | |
01.15~02.18 | 1600 | G4FD | TC6AD | RN1548V | PN0537 | RN1549 | PN0538 | |
03.11~01.15 | 1600 | G4FD | TE61D | RN1548V | PN0537PN11001 | RN1549 | PN0538 | |
01.12~01.15 | 1600 | G4FG | TC61C | RN1548V | PN11001PN0537 | RN1549 | PN0538 | |
03.11~01.15 | 1600 | G4FJ | PGS11 RHD SG | RN1547V | PN11001 | RN1549 | PN0538 | |
03.11~01.15 | 1600 | G4FJ | PGS11 US | RN1348V | PN0739PN11001 | RN1549 | PN0538 | |
01.15~01.18 | 1600 | G4FJ | PGS15 RHD SG | RN1547V | PN11001 | RN1549 | PN0538 | |
01.15~02.18 | 1600 | G4FJ | PGS15 US | RN1348V | PN0739 | RN1549 | PN0538 |
04.19~ | 1600 | G4FG | PSN19 LHD CHL | RN1548V | PN0958 | RN1549 | PN0538 | |
04.19~ | 1600 | G4FG | PSN19 RHD | RN1548V | PN0958 | RN1549 | PN0538 | |
04.19~ | 1600 | G4FM | PSN19 RHD | RN1548V | PN0958 | RN1549 | PN0538 | |
09.19~ | 1600 | G4FM | QXI | RN1548V | PN0958 | RN1549 | PN0538 |
05.15~07.18 | 1000 | G3LC | HB/SW/PRO | RN1348VRN1562V | PN0592PN11001PN0537 | RN1563RN1549 | PN6148PN0538 | |
03.12~07.18 | 1400 | D4FC | HB/SW/PRO | RN1562VRN1348V | PN0537PN0592PN11001 | RN1549RN1563 | PN0538PN6148 | |
03.12~07.18 | 1600 | D4FB | HB/SW/PRO | RN1562VRN1348V | PN11001PN0592PN0537 | RN1549RN1563 | PN0538PN6148 |
03.12~08.15 | 1400 | G4FA | PA212 HB LHD | RN1548V | PN0537 | RN1549 | PN6148 | |
03.12~07.15 | 1600 | G4FD | PA212 WGN LHD | RN1548V | PN0537 | RN1549 | PN6148 | |
03.12~07.15 | 1600 | G4FG | PA212 HB LHD | RN1548V | PN0537 | RN1549 | PN6148 |
05.15~07.18 | 1400 | G4LC | A216 | RN1562V | PN0537 | RN1549 | PN6148 | |
05.15~07.18 | 1600 | G4FD | A216 | RN1562V | PN0537 | RN1549 | PN6148 | |
05.15~07.18 | 1600 | G4FG | A216 | RN1547V | PN0739 | RN1549 | PN6148 |
03.12~07.15 | 1600 | G4FC | A212 | RN1548V | PN0537 | RN1549RN1563 | PN6148PN0538 | |
05.15~07.18 | 1600 | G4FD | A216 | RN1562V | PN0537 | RN1549 | PN6148PN0538 |
01.18~04.21 | 1600 | G4FG | SEDAN - 4DR 5P LHD PR | RN1562V | PN0373 | DN1106RN1549 | PN0538FN0819 | |
01.18~04.21 | 1600 | G4FG | SEDAN - 4DR 5P RHD | RN1562V | PN0373 | DN1106RN1549 | FN0819PN0538 | |
02.18~ | 2000 | G4NA | SDN VTN | RN1562V | PN0373 | RN1549 | PN0538FN0797 | |
01.18~04.21 | 2000 | G4NA | SEDAN - 4DR 5P RUS | RN1562V | PN0373 | RN1549 | PN0538FN0819 |
04.21~ | 1600 | G4FG | PM621 SDN RHD | RN1562V | PN0373 | RN1549DN1106 | FN0819PN0538 | |
04.21~ | 2000 | G4NA | PM621 RU | RN1562V | PN0373 | RN1549 | PN0538 |
01.13~03.16 | 1600 | G4FJ | FZ61 LHD | RN1348V | PN0739 | RN1549 | PN0538 | |
01.13~03.16 | 1600 | G4FJ | FZ61 RHD | RN1348V | PN0739 | RN1549 | PN0538 | |
01.13~03.16 | 2000 | G4NA | FZ61 COUPE RHD | RN1562V | PN0537 | RN1549 | PN0538 |
06.13~02.16 | 1600 | F4FA | FZ414 | RN1562V | PN0537 | RN1549 | PN0538 | |
01.14~ | 1600 | G4FC | SDN LHD | RN1562V | PN0537 | DN1106RN1549 | FN0797PN0538 | |
06.12~03.16 | 1600 | G4FG | F#411 SDN LHD | RN1562V | PN0537 | RN1549DN1106 | PN0538FN0797 | |
09.11~03.16 | 1600 | G4FG | F#411 SDN LHD RUS | RN1562V | PN0537 | RN1549 | PN0538 | |
04.13~03.16 | 1600 | G4FG | F#411 SDN RHD | RN1562V | PN0739PN0537 | RN1549 | PN0538FN0797 | |
01.13~03.16 | 1600 | G4FG | FX41 | RN1562V | PN0739PN0537 | RN1549 | PN0538FN0797 | |
12.12~11.16 | 1600 | G4FG | FX41 RHD | RN1562V | PN0537PN0739 | DN1106RN1549 | FN0797PN0538 | |
01.13~03.16 | 1600 | G4FG | FZ511 5DR HB | RN1562V | PN0537 | RN1549 | PN0538 | |
01.16~03.18 | 1600 | G4FG | SA716 | RN1562V | PN0537PN0592 | DN1106RN1549 | PN0538FN0797 | |
08.12~03.16 | 2000 | G4NA | FK41 SDN LHD | RN1562V | PN0537 | RN1549 | PN0538 | |
01.15~04.21 | 2000 | G4NA | VTN | RN1562V | PN0537 | RN1549 | PN0538 |
03.16~08.20 | 1600 | D4FB | YD | RN1562V | PN0537PN0592 | RN1549DN1106 | FN0797PN0538 | |
03.16~08.20 | 1600 | G4FG | F#411 SDN RHD | RN1562V | PN0537PN0592 | RN1549 | PN0538 | |
03.16~08.20 | 1600 | G4FG | FZ511 | RN1562V | PN0592PN0537 | RN1549 | PN0538 | |
04.15~06.18 | 2000 | G4NA | FK51 HB AU | RN1562V | PN0592 | RN1549 | PN0538 | |
03.16~08.20 | 2000 | G4NA | YD SDN RU | RN1562V | PN0592 | RN1549 | PN0538 |
02.13~02.16 | 1800 | G4NB | FX4A SDN US | RN1562VRN1348V | PN0739PN0537 | RN1549 | PN0538 | |
04.15~06.18 | 2000 | G4NA | FK4A SDN US | RN1562V | PN0537PN0592 | RN1549 | PN0538 |
01.16~02.20 | 1600 | G4FD | COUPE VTN | RN1562V | PN0537PN0739 | RN1549 | FN0797PN0538 | |
04.13~03.16 | 1600 | G4FG | F#411 SDN RHD SG | RN1562V | PN0739PN0537 | RN1549 | PN0538FN0797 | |
12.12~02.18 | 1600 | G4FG | FX41 RHD | RN1562V | PN0537PN0739 | RN1549DN1106 | FN0797PN0538 | |
01.18~ | 1600 | G4FG | SEDAN - 4DR 5P | RN1562V | PN0373 | RN1549 | PN0538FN0819 | |
12.12~02.18 | 1600 | G4FJ | FZ41 | RN1562V | PN0537PN0739 | RN1549 | FN0797PN0538 | |
01.18~04.21 | 1600 | G4FM | PM618 SDN LHD | RN1562V | PN0373 | RN1549 | PN0538 | |
04.21~ | 1600 | G4FM | PM621 SDN LHD | RN1562V | PN0373 | RN1549RN1601 | PN0538 | |
12.12~02.18 | 2000 | G4NA | FZ41 | RN1562V | PN0537 | RN1549 | PN0538 |
06.19~ | 1400 | G4LD | PTI20 | RN1348V | PN0799 | RN1549 | PN0538 | |
06.19~ | 1600 | G4FG | PTI20 LHD | RN1348V | PN0799 | RN1549 | PN0538 | |
06.19~11.20 | 1600 | G4FG | PTI20 RHD | RN1348V | PN0799 | RN1549 | PN0538 | |
06.19~ | 2000 | G4NH | PTH19 | RN1653VRN1548V | PN0373PN0578PN0799 | RN2229RN1549 | PN0436PN6136PN0538 |
08.13~01.17 | 1600 | D4FB | PS | RN1412V | PN0704 | RN1549 | ||
08.16~01.19 | 1600 | G4FG | PB216 RHD | RN1562V | PN0373 | RN1549 | PN0538 | |
12.17~ | 1600 | G4FG | PSK19 RUS | RN1412V | PN0958 | RN1549 | PN0538 | |
08.13~01.17 | 1600 | G4FG | SPB213 LHD | RN1562VRN1412V | PN0704PN0373 | RN1549 | PN0538 | |
08.16~01.19 | 1600 | G4FG | SPB216 LHD | RN1547VRN1412V | PN0704 | RN1549 | PN0538 | |
11.18~ | 2000 | G4NA | PSK19 | RN1412V | PN0958PN6128 | RN1549 | PN0538 | |
08.13~01.17 | 2000 | G4NA | WAGON - 5DR 5P | RN1562V | PN0373 | RN1549 | PN0538 | |
08.13~01.17 | 2000 | G4NC | WAGON - 5DR 5P | RN1562V | PN0373 | RN1549 | PN0538 |
