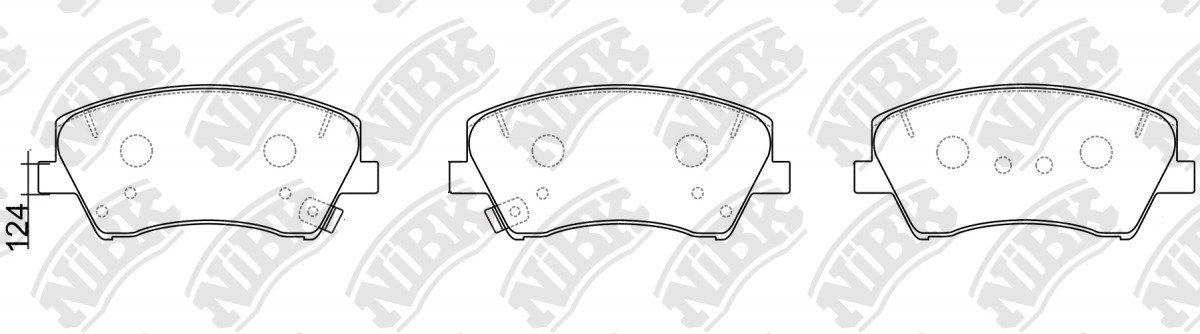

BRAKE PADS » PN0772
Specification
Length-1
132.5
Width-1
60
Length-2
132.5
Width-2
60
Thickness-1
16.7
Thickness-2
16.7
Pcs In Set
4
Brake System
Mando
Cross Reference
BENDIX AUS
DB2443
FMSI
D1912-9143
HYUNDAI
58101-F2A00
HYUNDAI
58101-F3A00
HYUNDAI
58101-G2A10
HYUNDAI / KIA
58101G2A10
KASHIYAMA
D11424MH
KIA
58101-G2A00
KIA
58101-G2A10
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.15~07.19 | 1600 | D4FB | AD | RN1548V | PN0772 | RN1549 | PN0538 | |
| 09.15~07.19 | 1600 | D4FB | RPF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 09.15~07.19 | 1600 | G4FG | PF216 LHD | RN1548V | PN0772 | RN1549 | PN0538 | |
| 09.15~07.19 | 1600 | G4FG | PF216 RHD | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 09.15~07.19 | 1600 | L4FA | PF216 | RN1548V | PN0772 | RN1549DN1106 | FN0609PN0538 | |
| 09.15~07.19 | 2000 | G4NA | AD | RN1548V | PN0772 | RN1549 | PN0538 | |
| 02.16~02.19 | 2000 | G4NH | PF316 US | RN1548V | PN0772 | DN1106 | FN0609 |
| 08.18~08.20 | 1600 | G4FG | PF219 RHD | RN1548V | PN0772 | RN1549 | FN0609PN0538 | |
| 08.18~08.20 | 2000 | G4NA | PF219 RHD | RN1548V | PN0772 | RN1549 | FN0609PN0538 | |
| 08.18~08.20 | 2000 | G4NH | AD | RN1548V | PN0772 | RN1549 | FN0609PN0538 |
| 09.15~ | 1600 | G4FG | AD LHD PR | RN1548V | PN0772 | DN1106RN1549 | FN0609PN0538 | |
| 08.18~08.20 | 1600 | G4FG | PF219 LHD | RN1548V | PN0772 | RN1549 | PN0538 | |
| 01.16~02.19 | 2000 | G4NH | PF316 US | RN1548V | PN0772 | DN1106 | FN0609 | |
| 02.19~ | 2000 | G4NH | PF319 MEX | RN1548V | PN0772 | RN1549 | PN0538 |
| 03.16~01.19 | 88kW | C#51 LHD | RN2232V | PN0772 | RN1601 | PN0538 | ||
| 03.16~01.19 | EM09 88kW | C851 RHD | RN2232V | PN0772 | RN1601 | PN0538 | ||
| 01.19~ | EM10 100kW | C851 SG | RN2232V | PN0772 | RN1601 | PN0538 | ||
| 03.16~01.19 | 1600 | G4LE | C75L US | RN2232V | PN0772 | RN2233 | PN0538 | |
| 03.16~01.19 | 1600 | G4LE | C851 | RN2232V | PN0772 | RN2233 | PN0538 | |
| 01.19~ | 1600 | G4LE | C851 | RN2232V | PN0772 | RN2233 | PN0538 |
| 08.18~ | EM16 | DE | RN1653VRN2232V | PN0772PN0578 | RN2450 | PN0538 | ||
| 09.21~ | 1600 | G4LE | PDE22 RHD PLUS | RN2232V | PN0772 | RN2616 | PN0538 | |
| 03.16~01.19 | 1600 | G4LE | PG516 RHD | RN2232V | PN0772 | RN2233 | PN0538 | |
| 03.16~01.19 | 1600 | G4LE | PG516 RHD SG | RN2232V | PN0772 | RN2233 | PN0538 | |
| 03.16~ | 1600 | G4LE | PG516 US | RN2232V | PN0772 | RN2233 | PN0538 | |
| 01.19~11.21 | 1600 | G4LE | PG519 RHD | RN2232V | PN0772 | RN2616 | PN0538 |
