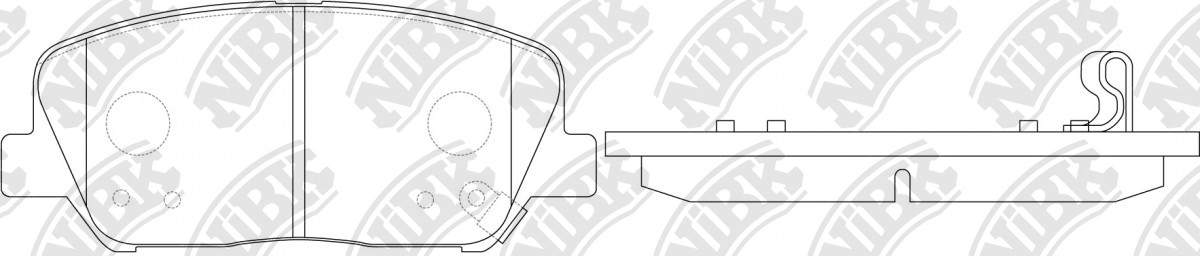

BRAKE PADS » PN11001
Specification
Length-1
140.8
Width-1
60
Thickness-1
16.5
Pcs In Set
4
Cross Reference
BENDIX AUS
DB2348
FMSI
D1413-8527
HYUNDAI
58101-2VA70
HYUNDAI
58101-A6A20
HYUNDAI / KIA
58101-2TA20
HYUNDAI / KIA
581012VA70
KIA
58101-2MA00
KIA
58101-2TA20
KIA
58101-2TA21
KIA
58101-2TA61
KIA
58101-2VA20
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.12~12.16 | 2000 | G4KF | DK12 US | PN11001PN0150S | RN2270 | PN0415PN0202W | FN0666 | |
| 11.08~03.12 | 3800 | G6DA | DK08 GNRL | PN0150SPN11001 | RN2270 | PN0415PN0202W | FN0666 | |
| 11.08~03.12 | 3800 | G6DA | DK08 US | PN0150SPN11001 | RN2270 | PN0202WPN0415 | FN0666 | |
| 03.12~08.14 | 3800 | G6DA | DK12 | PN0150SPN11001 | RN2270 | PN0202WPN0415 | FN0666 |
| 06.14~10.16 | 2400 | G4KE | HG | PN11001PN0537 | PN0778 | FN0716 | ||
| 11.11~06.14 | 2400 | G4KJ | HG | RN1644V | PN11001 | RN1601 | PN0778 | |
| 11.11~06.14 | 3000 | G6DG | HG | PN11001PN0537 | PN0778 | FN0716 | ||
| 06.14~10.16 | 3000 | G6DG | HG | PN0537PN11001 | PN0778 | FN0716 | ||
| 11.11~06.14 | 3300 | G6DH | HG | PN0537PN11001 | PN0778 | FN0716 | ||
| 06.14~10.16 | 3300 | G6DH | HG | PN11001PN0537 | PN0778 | FN0716 |
| 09.11~03.15 | 1400 | G4FA | D351 | RN1547VRN1562V | PN11001PN0537 | PN0538 | ||
| 09.11~03.15 | 1600 | G4FD | D351 | RN1547VRN1562V | PN11001PN0537 | RN1549RN1563 | PN0538 |
| 03.11~01.15 | 1600 | G4FD | TE61D | RN1548V | PN0537PN11001 | RN1549 | PN0538 | |
| 01.12~01.15 | 1600 | G4FG | TC61C | RN1548V | PN11001PN0537 | RN1549 | PN0538 | |
| 03.11~01.15 | 1600 | G4FJ | PGS11 RHD SG | RN1547V | PN11001 | RN1549 | PN0538 | |
| 03.11~01.15 | 1600 | G4FJ | PGS11 US | RN1348V | PN0739PN11001 | RN1549 | PN0538 | |
| 01.15~01.18 | 1600 | G4FJ | PGS15 RHD SG | RN1547V | PN11001 | RN1549 | PN0538 |
| 05.15~07.18 | 1000 | G3LC | HB/SW/PRO | RN1348VRN1562V | PN11001PN0537PN0592 | RN1563RN1549 | PN6148PN0538 | |
| 03.12~07.18 | 1400 | D4FC | HB/SW/PRO | RN1562VRN1348V | PN0592PN11001PN0537 | RN1563RN1549 | PN0538PN6148 | |
| 03.12~07.18 | 1600 | D4FB | HB/SW/PRO | RN1562VRN1348V | PN11001PN0592PN0537 | RN1549RN1563 | PN6148PN0538 |
| 06.13~07.15 | 2000 | G4KH | PTF14 | RN1644V | PN11001 | RN1601RN1307 | PN0591PN0538 | FN0716 |
| 05.10~06.13 | 2000 | G4NA | PTF11 | RN1174V | PN0635PN11001 | RN1601RN1307 | PN0538PN0591 | FN0716 |
| 02.18~12.20 | 2000 | G4ND | PD418 | RN1644V | PN11001PN0578 | RN1601 | PN0538 | FN0716 |
| 01.10~ | 2400 | G4KE | TF | PN0536PN11001 |
| 03.12~ | 2000 | G4KD | GN | RN1644V | PN0739PN11001 | RN1476 | PN0591 | FN0716 |
| 01.10~01.13 | 2000 | G4KD | PTF11 RHD | RN1174VRN1644V | PN11001PN0635 | RN1307RN1476 | PN0591 | FN0716 |
| 08.13~02.16 | 2000 | G4NA | GN41 | RN1644V | PN11001 | RN1601 | PN0538 | |
| 03.10~09.13 | 2000 | G4NA | PTF11 LHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
| 08.13~02.16 | 2000 | G4ND | GN | RN1644V | PN11001 | RN1601 | PN0538 | FN0716 |
| 02.12~08.13 | 2000 | G4ND | PTF11 RHD | RN1644V | PN11001 | RN1601 | PN0538 | |
| 03.10~09.13 | 2400 | G4KE | PTF11 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
| 04.13~03.16 | 2400 | G4KE | PTF14 RHD | RN1644V | PN11001 | RN1476 | PN0591 | FN0716 |
