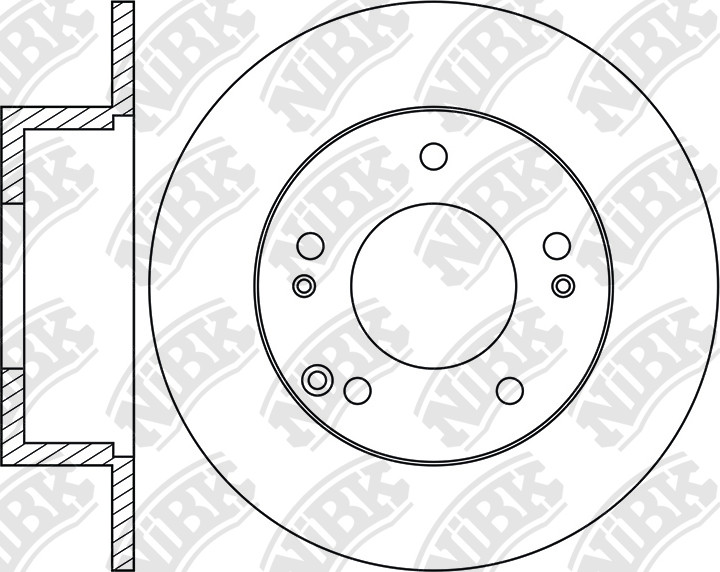

ROTOR DISC » RN1386
Specification
Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
61
Centering Diameter
76
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
262
Drum Ø:
168
Disc Thickness (Min)
8.4
Structure Material
G3000
Cross Reference
HYUNDAI
58411-39600
HYUNDAI
58411-3K300
HYUNDAI
584110A000
HYUNDAI
5841139300
KIA
58411-39600
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.04~12.07 | 2000 | G4KA | NF | RN1348VRN1174V | PN0377 | RN1386RN1476 | PN0539 | FN11004 |
| 09.06~12.07 | 2000 | L4KA | NF04 LHD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 09.04~12.07 | 2400 | G4KC | NF | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 09.04~12.07 | 2400 | G4KC | NFA US | RN1174V | PN0377 | RN1386 | PN0539 |
| 12.07~10.10 | 2000 | G4KD | NF08 LHD | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
| 12.07~10.10 | 2000 | G4KD | NF08 RHD | RN1174V | PN0377 | RN1386 | PN0591PN0539 | FN11004 |
| 12.07~01.13 | 2000 | L4KA | PNF08 LHD TAXI | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
| 12.07~10.10 | 2400 | G4KC | NF | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
| 12.07~10.10 | 2400 | G4KE | ET41 LHD | RN1174V | PN0377 | RN1386 | PN0591 | FN11004 |
| 10.06~12.09 | 2000 | G4GC | JM04 LHD EU | RN1174VRN1348V | PN0377 | RN1386RN1176 | PN0591PN0539 | FN11004FN0644 |
| 04.04~10.06 | 2000 | G4GC | PA04 | RN1174V | PN0377 | RN1386RN1176 | PN0539 | FN0644FN11004 |
| 04.04~10.06 | 2000 | G4GC | PA04 US | RN1174V | PN0377 | RN1176RN1386 | PN0539 | FN0644FN11004 |
| 10.98~04.05 | 2500 | G6AV | PN0103PN0115 | RN1386 | PN0539 | |||
| 10.98~04.05 | 3000 | G6CT | PN0103PN0115 | RN1386 | PN0539 | |||
| 07.03~04.05 | 3500 | G6CU | PN0115PN0103 | RN1386 | PN0539 |
| 10.05~11.10 | 2000 | G4KA | GE | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 06.09~01.11 | 2000 | G4KD | GG | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 06.09~01.11 | 2000 | L4KA | GH | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 09.06~08.08 | 2000 | D4EA | DD | RN1174V | PN0377 | RN1386 | PN0539 | |
| 05.08~05.10 | 2000 | D4EA | DD | RN1174V | PN0377 | RN1386 | PN0539 | |
| 04.06~06.09 | 2000 | D4EA | MG | RN1174V | PN0377 | RN1386 | PN0539 | |
| 06.09~01.11 | 2000 | D4EA | MG | RN1174V | PN0377 | RN1386 | PN0539 | |
| 09.06~08.08 | 2000 | G4KA | DD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 05.08~05.10 | 2000 | G4KA | DD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 03.05~03.08 | 2000 | G4KA | GE22 | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 05.08~01.11 | 2000 | G4KD | PMG09 LHD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 05.08~01.11 | 2000 | G4KD | PMG09 RHD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 04.06~06.09 | 2400 | G4KC | GE22 | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 10.05~09.06 | 2700 | G6EA | DD | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 04.06~06.09 | 2700 | G6EA | MG | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 06.09~01.11 | 2700 | G6EA | MG | RN1174V | PN0377 | RN1386 | PN0539 | FN11004 |
| 06.04~09.06 | 2000 | D4EA | JE5 | RN1412V | PN0377 | RN1386RN1176 | PN0539 | FN0644FN11004 |
| 09.04~09.06 | 2000 | G4GC | FQ RHD | RN1412V | PN0377 | DN1510RN1176RN1386 | FN0820PN0539 | FN11004FN0644 |
| 09.06~07.10 | 2000 | G4GC | FQ RHD | RN1174VRN1412V | PN0377 | RN1176RN1386DN1510 | FN0820PN0539 | FN0644FN11004 |
| 03.06~08.10 | 2000 | G4GC | FQ04 US | RN1412V | PN0377 | RN1386 | PN0539 | FN11004 |
