ROTOR DISC » RN1176

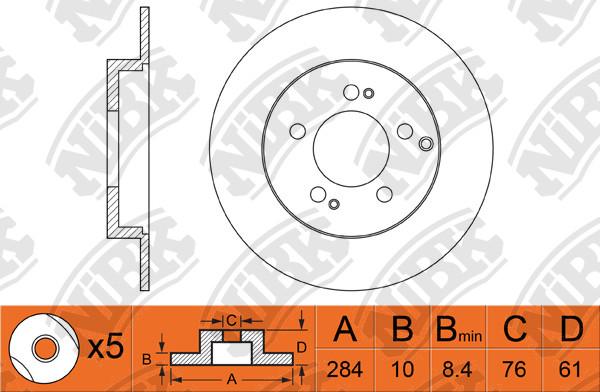

Specification

Type
Solid
Disc Thickness (Max)
10
Num. of holes
5
Height
61
Centering Diameter
76
Front/Rear
Rear
Outter Ø
284
Drum Ø:
190
Pitch Circle Ø
114.3
Disc Thickness (Min)
8.4
Structure Material
G3000

Cross Reference

BENDIX EUR
562454B
HYUNDAI
58411-2Y300
HYUNDAI
58411-3A300
KIA
58411-2Y300
KIA
58411-3A300
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.09~08.13 2000 D4HA TM10 AUS RN1348V PN0052 RN1176 PN0436 FN11006
01.10~08.13 2000 D4HA TMZ10 LHD RN1348V PN0052 RN1176 PN0436 FN11009
07.13~06.15 2000 D4HA TMZ14 RUS RN1348V PN0052 RN1176 PN0436 FN11009
11.09~06.15 2000 G4KD LM RN1348V PN0052 RN1176 PN0436 FN11009
11.09~08.13 2000 G4KD TM10 LHD RN1348V PN0052 RN1307RN1176 PN0436 FN11006FN11009
11.09~08.13 2000 G4KD TM10 RHD RN1348V PN0052 RN1307RN1176 PN0436 FN11006FN11009
08.09~09.13 2000 G4KD TMZ10 RUS RN1348V PN0052 RN1176RN1307 PN0436 FN11009FN11006
07.13~06.15 2000 G4NA TMZ14 RUS RN1348V PN0052 RN1307RN1176 PN0436 FN11006FN11009
11.10~12.15 2400 G4KE LM RN1348V PN0052 RN1176 PN0436 FN11009
06.00~03.06 2000 D4EA PA00 LHD RN1209VRN1178V PN0103 DN1521RN1176 PN0539FN0581 FN0644
06.00~03.06 2000 G4JP SM RN1178V PN0103 DN1521RN1176 PN0539FN0581 FN0644
06.00~03.06 2400 G4JS SM RN1178V PN0103 RN1176DN1521 PN0539FN0581 FN0644
06.00~07.04 2400 G4JS SM US RN1178V PN0103 RN1176DN1521 FN0581PN0539 FN0644
06.00~03.06 2700 G6BA KM8S US RN1209V PN0103 RN1176 PN0539 FN0644
06.00~03.06 2700 G6BA SM RN1209V PN0103 RN1176 PN0539 FN0644
10.99~10.03 2000 D4EA RN1178VRN1209V PN0103 DN1474RN1176 FN0581PN0539
10.04~09.08 2000 D4EA MH81 RN1178VRN1209V PN0103 RN1176DN1474 FN0581PN0539
10.04~09.08 2000 G4GC MH81 RN1178V PN0103 RN1176 PN0539 FN11005
10.99~09.04 2000 G4JP MH81 RN1178V PN0103 RN1176 PN0539 FN0644
10.99~09.04 2700 G6BA RN1209V PN0103 RN1176 PN0539
10.04~09.08 2700 G6BA MG81 RN1178V PN0103 RN1176 PN0539 FN11005
10.06~12.09 2000 D4EA JM04 LHD RN1174VRN1348V PN0377 RN1176 PN0539PN0591 FN0644
10.06~12.09 2000 D4EA JM04 RHD RN1174V PN0377 RN1176 PN0539 FN0644
04.04~10.06 2000 D4EA PA04 RN1174V PN0377 RN1176 PN0539 FN0644
07.04~10.06 2000 D4EA PA04 LHD DOM RN1174V PN0377 RN1176 PN0539 FN0644
10.06~12.09 2000 G4GC JM04 RN1174V PN0377 RN1176 PN0539
10.06~12.09 2000 G4GC JM04 LHD RU RN1348V PN0377 RN1176 PN0591 FN0644
04.04~10.06 2000 G4GC PA04 RN1174V PN0377 RN1386RN1176 PN0539 FN0644FN11004
04.04~10.06 2000 G4GC PA04 US RN1174V PN0377 RN1176RN1386 PN0539 FN0644FN11004
10.06~12.09 2700 G6BA JM04 RN1174V PN0377 RN1176 PN0539
04.04~10.06 2700 G6BA PA04 RN1174V PN0377 RN1176 PN0539 FN0644
10.09~08.13 2000 D4HA TM10 LHD RN1348V PN0052 RN1176RN1307 PN0436 FN11006FN11009
10.09~08.13 2000 D4HA TM10 RHD RN1348V PN0052 RN1176 PN0436 FN11009FN11006
11.09~08.13 2000 G4KD TM10 LHD RN1348V PN0052 RN1307RN1176 PN0436 FN11006FN11009
10.09~08.13 2400 G4KE TM10 LHD GL RN1348V PN0052 RN1176 PN0436 FN11009
10.09~08.13 2400 G4KE TM10 LHD US RN1348V PN0052 RN1176 PN0436 FN11009
10.09~08.13 2400 G4KE TM10 RHD RN1348V PN0052 RN1176 PN0436 FN11009
08.13~05.15 2000 D4HA PTM14 LHD RN1348V PN0052 RN1176 PN0436 FN11009FN11006
08.13~06.15 2000 G4NA PTM14 LHD RN1348V PN0052 RN1176RN1307 PN0436 FN11009FN11006
08.13~05.15 2000 G4NA PTM14 RHD RN1348V PN0052 RN1176RN1307 PN0436 FN11009FN11006
08.13~06.15 2400 G4KE PTM14 LHD RN1348V PN0052 RN1176 PN0436 FN11009
08.13~06.15 2400 G4KJ PTM14 US RN1348V PN0052 RN1176 PN0436 FN11009
08.10~04.14 1700 D4FD SL RN1348V PN0052 RN1176 PN0436 FN11009
01.14~03.16 1700 D4FD SL RN1348V PN0052 RN1176 PN0436 FN11009FN11006
03.06~08.10 2000 D4EA FQ RN1174V PN0377 RN1176 PN0539 FN0644
09.06~07.10 2000 D4EA FQ RHD RN1174V PN0377 RN1176 PN0539 FN0644
04.08~07.10 2000 D4EA FQZ ER RN1348V PN0052 RN1176 PN0436 FN11009
06.04~09.06 2000 D4EA JE5 RN1412V PN0377 RN1386RN1176 PN0539 FN11004FN0644
08.10~04.14 2000 D4HA SLZ10 LHD RN1348V PN0052 RN1176 PN0436 FN11009
09.06~07.10 2000 G4GC FQ LHD RN1174V PN0377 RN1176 PN0539 FN0644
09.04~09.06 2000 G4GC FQ RHD RN1412V PN0377 DN1510RN1176RN1386 PN0539 FN11004FN0644
09.06~07.10 2000 G4GC FQ RHD RN1174VRN1412V PN0377 RN1176RN1386DN1510 PN0539 FN11004FN0644
03.06~04.08 2000 G4GC K1F RN1412VRN1174V PN0377 RN1176DN1510 PN0539 FN11004FN0644
08.10~04.14 2000 G4KD PSL10 RHD RN1348VRN1174V PN0052PN0704 RN1176RN1307 PN0436 FN11009FN11008
08.10~10.15 2000 G4KD SL10 LHD RN1174VRN1348V PN0052PN0704 RN1307RN1176 PN0436 FN11008FN11009
06.10~04.14 2000 G4KD SLZ10 LHD RN1348V PN0052 RN1176 PN0436 FN11009
12.04~09.08 2700 G6BA FQ RN1174V PN0377 RN1176 PN0539 FN0644
03.06~04.08 2700 G6BA FQ RN1174V PN0377 RN1176 PN0539 FN0644
01.14~03.16 2000 D4HA SL14 RN1348V PN0052 RN1307RN1176 PN0436 FN11009FN11008
01.14~03.16 2000 G4NA SLZ14 RN1348V PN0052 RN1176 PN0436 FN11009
01.14~03.16 2400 G4KE SL14 RN1348V PN0052 RN1176 PN0436 FN11009

Exemption from liability: the catalog data is advisory and can be used for reference only
