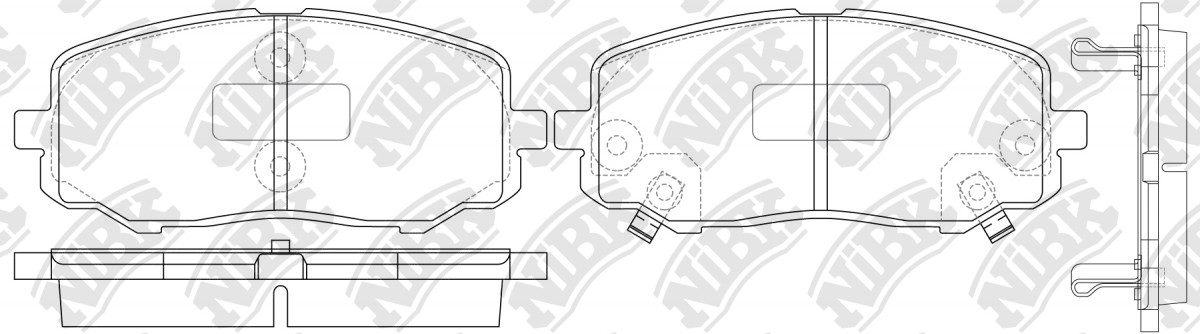

BRAKE PADS » PN0448
Specification
Length-1
116.2
Width-1
49
Thickness-1
16.8
Pcs In Set
4
Notes
HYUNDAI i20 Classic
Cross Reference
AKEBONO
AN-8142WK
BENDIX AUS
DB1755
FMSI
D1601-8815
FMSI
D1684-8913
HYUNDAI
58101-07A00
HYUNDAI
58101-07A10
HYUNDAI
58101-07A20
HYUNDAI
58101-0XA00
HYUNDAI
58101-0XA01
HYUNDAI
58101-0XA10
HYUNDAI
58101-1JA60
HYUNDAI / KIA
5810107A10
KASHIYAMA
D11154
KIA
58101-07A00
KIA
58101-07A10
WVA
24275
WVA
24410
WVA
24411
WVA
24910
WVA
24911
WVA
24924
WVA
24925
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.07~01.16 | 1000 | G3LA | PA | PN0438 | PN0526FN0609 | |||
| 10.07~09.10 | 1100 | D3FA | PA | RN11001V | PN0448 | RN1791 | PN0526 | |
| 09.10~01.16 | 1100 | G4HG | AM51B LHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 09.10~01.16 | 1100 | G4HG | AM51B RHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 01.07~09.10 | 1100 | G4HG | AN51B | RN11001V | PN0448 | DN1447 | FN11186 | |
| 01.08~01.14 | 1100 | G4HG | HB LHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 10.07~09.10 | 1200 | G4LA | PA07 | RN11001V | PN0448PN0438 | RN1791DN1447 | FN11186PN0526FN0609 | |
| 09.10~09.13 | 1200 | G4LA | PA07 | RN11001V | PN0448 | DN1447RN1791 | FN11186FN0609PN0526 |
| 03.12~12.15 | 1200 | G4LA | BA51 5DR RHD | RN2606V | PN0448 | DN1447 | FN0609 | |
| 10.08~12.12 | 1200 | G4LA | PB08 5DR RHD | RN2606V | PN0448 | DN1447 | FN0609 | FN0661 |
| 10.08~06.12 | 1200 | G4LA | PBT10 LHD | RN2606V | PN0448 | DN1447 | FN0609 | |
| 01.10~06.12 | 1200 | G4LA | PBT10 LHD | RN2606V | PN0448 | DN1447 | FN0609 | |
| 06.12~12.14 | 1200 | G4LA | PBT12 LHD | RN2606V | PN0448 | DN1447 | FN0609 | FN0661 |
| 06.12~12.14 | 1200 | G4LA | PPB12 LHD | RN2606V | PN0448 | DN1447 | FN0609 |
| 09.03~05.11 | 1100 | D3FA | PSA | RN11001V | PN0438 | DN1506 | FN0618 | |
| 09.03~12.07 | 1100 | G4HG | NK07 | RN11001V | PN0438 | DN1506 | FN0618 | |
| 09.03~12.07 | 1100 | G4HG | PSA04 RHD | RN11001V | PN0438 | DN1506 | FN0618 |
| 12.07~04.10 | 1000 | G4HE | PSA08 EU | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1000 | G4HE | PSA08 KOREA | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BJ51 RHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BK51 LHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BK51 RHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | PSA08 | RN11001V | PN0438 | DN1506 | FN0618 |
