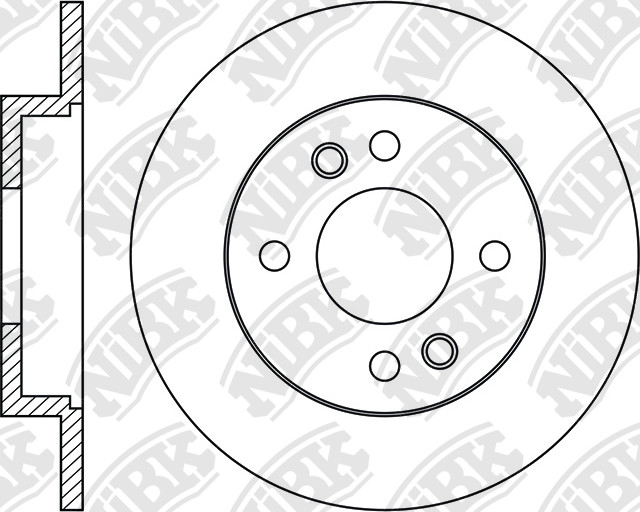

ROTOR DISC » RN1791

Specification

Type
Solid
Outter Ø
234
Num. of holes
4
Disc Thickness (Max)
10
Height
37.5
Centering Diameter
62.5
Pitch Circle Ø
100
Front/Rear
Rear
Drum Ø:
142
Disc Thickness (Min)
8,5
Structure Material
G3000

Cross Reference

HYUNDAI / KIA
5841107500
KIA
58411-07300
KIA
58411-07500
KIA
58411-0X500
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.07~09.10 1100 D3FA PA RN11001V PN0448 RN1791 PN0526
10.07~09.10 1200 G4LA PA07 RN11001V PN0448PN0438 RN1791DN1447 FN0609FN11186PN0526
09.10~09.13 1200 G4LA PA07 RN11001V PN0448 DN1447RN1791 FN11186FN0609PN0526
05.11~04.15 1200 G4LA PTA11 LHD RN11001V PN0580 RN1791 PN0436
05.11~04.15 1200 G4LA PTA11 RHD RN11001V PN0580 DN1455RN1791 PN0436FN0674
04.17~01.21 1200 G4LA PG617 RHD RN2159V PN0767 RN1791 PN0768
11.11~ 1000 G3LA TAM RN11001V PN0580 DN1506RN1791 PN0436
11.11~ 1000 G3LB TAM RN2405V PN0580 DN1506RN1791 PN0436

Exemption from liability: the catalog data is advisory and can be used for reference only
