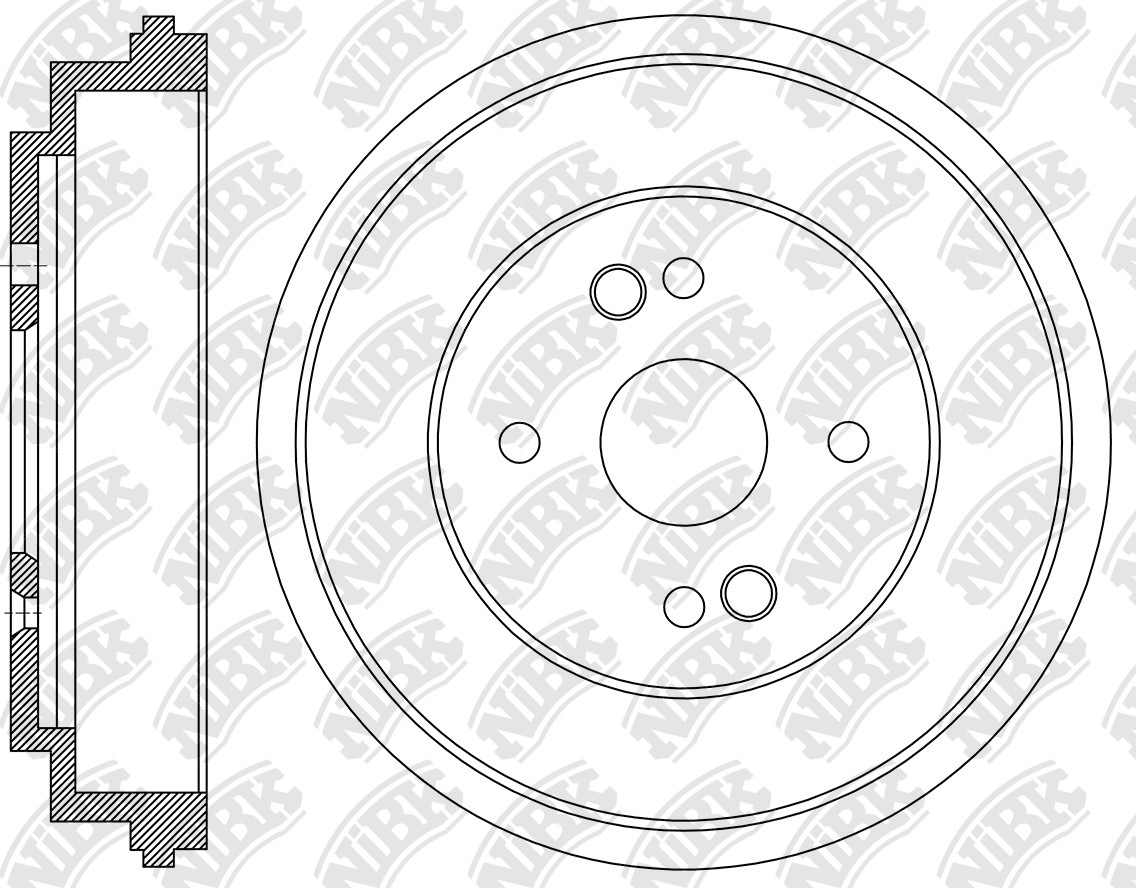

DRUM BRAKE » DN1455

Specification

Outter Ø
220
Num. of holes
4
Hole Ø
12.5
Centering Diameter
62.5
Height
53.4
Pitch Circle Ø
100
Drum Ø
180
Structure Material
G3000

Cross Reference

KIA
58411-1Y000
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
05.11~04.17 1000 G3LA PTA11 LHD RN11001V PN0580 DN1455 FN0674
05.11~04.15 1000 G3LA PTA11 RHD RN11001V PN0580 DN1455 FN0674
05.11~04.15 1200 G4LA PTA11 RHD RN11001V PN0580 RN1791DN1455 PN0436FN0674
04.15~01.17 1200 G4LA PTA15 LHD RN11001V PN0580 DN1455 FN0674
04.15~01.17 1200 G4LA PTA15 RHD RN11001V PN0580 DN1455 FN0674
04.15~04.17 1000 G3LA PTA15 RHD RN11001V PN0580 DN1455 FN0674

Exemption from liability: the catalog data is advisory and can be used for reference only
