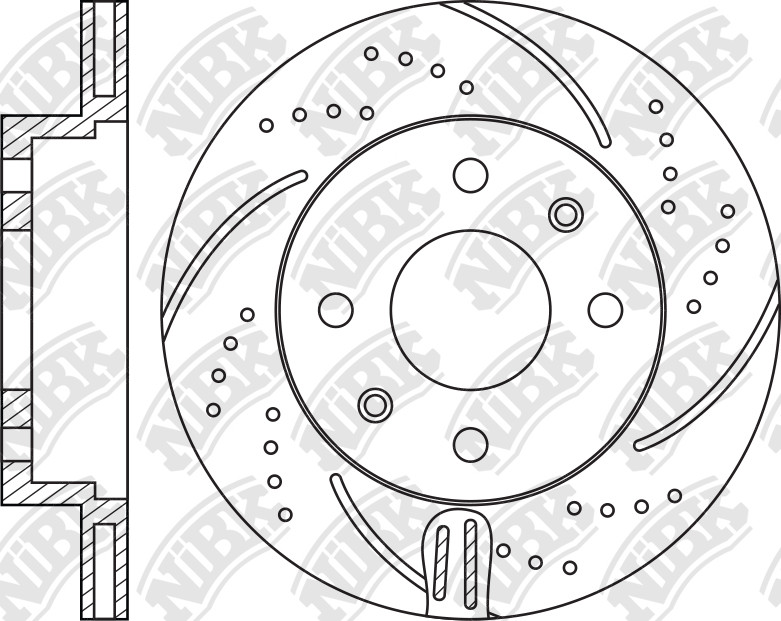

PERFORMANCE ROTOR DISC » RN11001DSET
Specification
Type 1:
Direction Vented
Outter Ø
241
Num. of holes
4
Disc Thickness (Max)
18
Height
49
Centering Diameter
62.2
Pitch Circle Ø
100
Front/Rear
Front
Variation
Cross Reference
HYUNDAI
51712-07000
HYUNDAI
51712-07500
HYUNDAI
51712-0X500
HYUNDAI / KIA
51712-0X000
KIA
51712-07500
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.13~01.17 | 1000 | G3LA | B9 | RN11001V | PN0858 | PN0538 | ||
| 10.07~09.10 | 1100 | D3FA | PA | RN11001V | PN0448 | RN1791 | PN0526 | |
| 09.10~01.16 | 1100 | G4HG | AM51B LHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 09.10~01.16 | 1100 | G4HG | AM51B RHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 01.07~09.10 | 1100 | G4HG | AN51B | RN11001V | PN0448 | DN1447 | FN11186 | |
| 01.08~01.14 | 1100 | G4HG | HB LHD | RN11001V | PN0448 | DN1447 | FN11186 | |
| 10.07~09.10 | 1200 | G4LA | PA07 | RN11001V | PN0448PN0438 | DN1447RN1791 | PN0526FN0609FN11186 | |
| 09.10~09.13 | 1200 | G4LA | PA07 | RN11001V | PN0448 | RN1791DN1447 | FN0609PN0526FN11186 |
| 09.03~05.11 | 1100 | D3FA | PSA | RN11001V | PN0438 | DN1506 | FN0618 | |
| 09.03~12.07 | 1100 | G4HG | NK07 | RN11001V | PN0438 | DN1506 | FN0618 | |
| 09.03~12.07 | 1100 | G4HG | PSA04 RHD | RN11001V | PN0438 | DN1506 | FN0618 |
| 12.07~04.10 | 1000 | G4HE | PSA08 EU | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1000 | G4HE | PSA08 KOREA | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BJ51 RHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BK51 LHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | BK51 RHD | RN11001V | PN0438 | DN1506 | FN0618 | |
| 12.07~05.11 | 1100 | G4HG | PSA08 | RN11001V | PN0438 | DN1506 | FN0618 |
| 05.11~04.17 | 1000 | G3LA | PTA11 LHD | RN11001V | PN0580 | DN1455 | FN0674 | |
| 05.11~04.15 | 1000 | G3LA | PTA11 RHD | RN11001V | PN0580 | DN1455 | FN0674 | |
| 05.11~04.15 | 1200 | G4LA | PTA11 LHD | RN11001V | PN0580 | RN1791 | PN0436 | |
| 05.11~04.15 | 1200 | G4LA | PTA11 RHD | RN11001V | PN0580 | DN1455RN1791 | PN0436FN0674 | |
| 04.15~01.17 | 1200 | G4LA | PTA15 LHD | RN11001V | PN0580 | DN1455 | FN0674 | |
| 04.15~01.17 | 1200 | G4LA | PTA15 RHD | RN11001V | PN0580 | DN1455 | FN0674 |
