ROTOR DISC » RN1150V

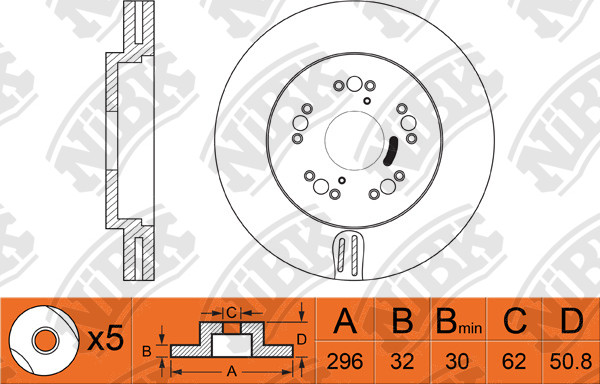

Specification
Type
Vented
Disc Thickness (Max)
32
Num. of holes
5
Height
50.8
Centering Diameter
62
Front/Rear
Front
Outter Ø
296
Hole Ø:
14.6
Disc Thickness (Min)
30
Pitch Circle Ø
114.3
Drum Ø:
143.7
Structure Material
G3000
Cross Reference
BENDIX
561644B
LEXUS
43512-30180
LEXUS
43512-53020
LEXUS
4351250100
LEXUS
4351250120
OEM
4351250040
OEM
4351250060
TOYOTA
43512-14190
TOYOTA
43512-24051
TOYOTA
43512-30180
TOYOTA
43512-30181
TOYOTA
43512-30190
TOYOTA
43512-30240
TOYOTA
43512-30241
TOYOTA
43512-30300
TOYOTA
43512-50060
TOYOTA
43512-50100
TOYOTA
43512-50110
TOYOTA
43512-50112
TOYOTA
43512-53010
TOYOTA
43512-53020
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 03.93~08.97 | 3000 | 2JZ-GE | JZS147 | RN1150V | PN1324 | RN1488V | PN1363 | FN0567 |
| 08.97~01.05 | 3000 | 2JZ-GE | JZS160L | RN1150V | PN1324 | RN1225 | PN1421 | FN0567 |
| 05.00~07.05 | 3000 | 2JZGE | JCE10L | RN1150V | PN1324 | RN1225 | PN1421 | FN0567 |
| 07.01~07.05 | 3000 | 2JZGE | JCE10R | RN1150V | PN1324 | RN1225 | PN1421 | FN0567 |
| 10.98~07.05 | 2000 | 1G-FE | GXE10 | RN1150VRN1305V | PN1324PN1550PN1228 | RN1485RN1225 | PN1421 | FN0692 |
| 06.01~07.05 | 2000 | 1G-FE | GXE10W | RN1305VRN1150V | PN1324PN1550 | RN1485RN1225 | PN1421 | FN0692 |
| 01.02~07.05 | 2000 | 1G-FE | GXE15W | RN1150VRN1305V | PN1324PN1228 | RN1225RN1485 | PN1421 | FN0692 |
| 10.98~07.05 | 2000 | 3S-GE | SXE10 | RN1305VRN1150V | PN1550PN1324 | RN1485RN1225 | PN1421 | FN0567 |
| 06.01~07.05 | 3000 | 2JZ-GE | JCE10W | RN1150V | PN1324 | RN1225 | PN1421 | FN0567 |
| 06.01~07.05 | 3000 | 2JZ-GE | JCE15W | RN1150VRN1305V | PN1324 | RN1225 | PN1421 | FN0567 |
| 10.91~08.97 | 3000 | 2JZ-G#E | JZS147 | RN1150VRN1531V | PN1231PN1324PN1228 | RN1488V | PN1363 | FN0567 |
| 01.97~01.05 | 3000 | 2JZ-GE | JZS160 | RN1150V | PN1324 | RN1225 | PN1421 | |
| 10.91~08.97 | 3000 | 2JZ-GTE | JZS147 | RN1150V | PN1324PN1231 | RN1488V | PN1363 | |
| 08.97~01.05 | 3000 | 2JZ-GTE | JZS161 | RN1150V | PN1324 | RN1225 | PN1421 | FN0567 |
| 11.89~10.94 | 4000 | 1UZ-FE | UCF10 | RN1150V | PN1324PN1228 | PN1326PN1363PN1252 | ||
| 11.89~10.94 | 4000 | 1UZ-FE | UCF11 | RN1150V | PN1228PN1324 | RN1488V | PN1326PN1252 |
| 10.92~09.96 | 2500 | 1JZ-G## | JZX90 | RN1150VRN1305V | PN1228PN1324 | RN2029VRN1487 | PN1323PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GTE | JZX100 (TOURER V) | RN1150V | PN1228PN1324 | RN2029V | PN1421PN1409 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GTE | JZX100 | RN1150V | PN1324PN1228 | RN2029V | PN1409PN1421 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-GTE | JZX90 | RN1150V | PN1324 | RN2029V | PN1323 | FN0669 |
| 09.99~12.03 | 2500 | 1JZ-G## | JZS171 | RN1305VRN1150V | PN1324PN1550 | RN1225RN1485 | PN1421 | FN0692FN0567 |
| 01.95~01.01 | 4000 | 1UZ-FE | UZS155 | RN1150V | PN1324 | RN1488V | PN1363 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX100 | RN1305VRN1150V | PN1228PN1324 | RN2029VRN1487 | PN1409PN1363PN1421 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-GE | JZX90 | RN1150VRN1305V | PN1324PN1228 | RN1487RN2029V | PN1323 | FN0669 |
