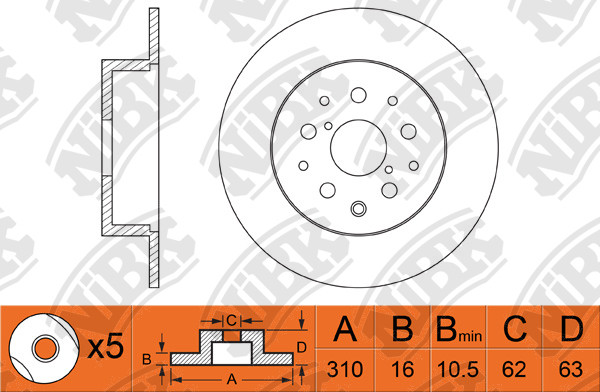

ROTOR DISC » RN1225

Specification

Type
Solid
Disc Thickness (Max)
12
Num. of holes
5
Height
63.7
Centering Diameter
62
Pitch Circle Ø
114.3
Front/Rear
Rear
Outter Ø
307
Hole Ø:
14.8
Disc Thickness (Min)
10.5
Drum Ø:
190
Structure Material
G3000

Cross Reference

LEXUS
42431-30260
LEXUS
42431-53011
TOYOTA
42431-30260
TOYOTA
42431-53011
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
08.97~01.05 3000 2JZ-GE JZS160L RN1150V PN1324 RN1225 PN1421 FN0567
08.97~07.00 4000 1UZ-FE UZS160 RN1150V PN1324 RN1225 PN1421 FN0567
07.00~01.05 4300 3UZ-FE UZS161 RN1150V PN1324 RN1225 PN1421 FN0567
01.99~07.05 2000 1G-FE GXE10 RN1150V PN1324 RN1225 PN1421 FN0567
05.00~07.05 3000 2JZ-GE JCE10 RN1150V PN1324 RN1225 PN1421 FN0567
05.00~07.05 3000 2JZGE JCE10L RN1150V PN1324 RN1225 PN1421 FN0567
07.01~07.05 3000 2JZGE JCE10R RN1150V PN1324 RN1225 PN1421 FN0567
01.01~07.10 4300 3UZ-FE UZZ40 RN1150V PN1324 RN1225 PN1421 FN0567
10.98~07.05 2000 1G-FE GXE10 RN1150VRN1305V PN1550PN1228PN1324 RN1485RN1225 PN1421 FN0692
06.01~07.05 2000 1G-FE GXE10W RN1305VRN1150V PN1550PN1324 RN1485RN1225 PN1421 FN0692
01.02~07.05 2000 1G-FE GXE15W RN1305VRN1150V PN1228PN1324 RN1225RN1485 PN1421 FN0692
10.98~07.05 2000 3S-GE SXE10 RN1150VRN1305V PN1324PN1550 RN1485RN1225 PN1421 FN0567
06.01~07.05 3000 2JZ-GE JCE10W RN1150V PN1324 RN1225 PN1421 FN0567
06.01~07.05 3000 2JZ-GE JCE15W RN1150VRN1305V PN1324 RN1225 PN1421 FN0567
01.97~01.05 3000 2JZ-GE JZS160 RN1150V PN1324 RN1225 PN1421
08.97~01.05 3000 2JZ-GTE JZS161 RN1150V PN1324 RN1225 PN1421 FN0567
09.99~07.04 4000 1UZ-FE UZS173 RN1150V PN1324 RN1225 PN1421 FN0567
09.99~12.03 2500 1JZ-G## JZS171 RN1305VRN1150V PN1550PN1324 RN1225RN1485 PN1421 FN0692FN0567
01.00~06.07 2500 1JZ-##E JZX110 RN1305VRN1150V PN1324PN1550 RN1225RN1485 PN1421 FN0567
07.01~04.04 2500 1JZ-##E JZX110 RN1150VRN1305V PN1550PN1324 RN1485RN1225 PN1421 FN0692FN0567

Exemption from liability: the catalog data is advisory and can be used for reference only
