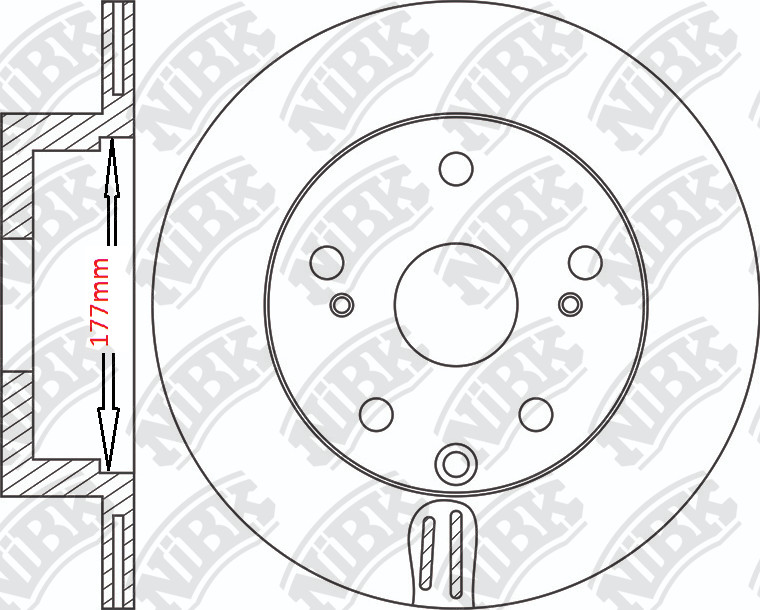

ROTOR DISC » RN2029V

RN2029V

Specification

Type
Vented
Outter Ø
307
Num. of holes
5
Disc Thickness (Max)
16
Height
67
Centering Diameter
62
Pitch Circle Ø
114.3
Front/Rear
Rear
Structure Material
G3000
Disc Thickness (Min)
15
Hole Ø:
14.6

Cross Reference

TOYOTA
42431-14150
TOYOTA
42431-14170
TOYOTA
42431-22170
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Chaser

10.92~09.96 2500 1JZ-G## JZX90 RN1150VRN1305V PN1228PN1324 RN2029VRN1487 PN1323PN1363 FN0669
09.96~07.01 2500 1JZ-GTE JZX100 (TOURER V) RN1150V PN1324PN1228 RN2029V PN1409PN1421 FN0669

TOYOTA   »   Cresta

09.96~07.01 2500 1JZ-GTE JZX100 RN1150V PN1228PN1324 RN2029V PN1409PN1421 FN0669
10.92~09.96 2500 1JZ-GTE JZX90 RN1150V PN1324 RN2029V PN1323 FN0669

TOYOTA   »   Mark II

09.96~07.01 2500 1JZ-GE JZX100 RN1150VRN1305V PN1228PN1324 RN1487RN2029V PN1363PN1421PN1409 FN0669
10.92~09.96 2500 1JZ-GE JZX90 RN1305VRN1150V PN1228PN1324 RN1487RN2029V PN1323 FN0669

TOYOTA   »   Supra

05.93~08.02 3000 2JZ-GE JZA80L RN2525DSETRN1150V PN1324PN1360 RN1488VRN2029V PN1361PN1363 FN0567
