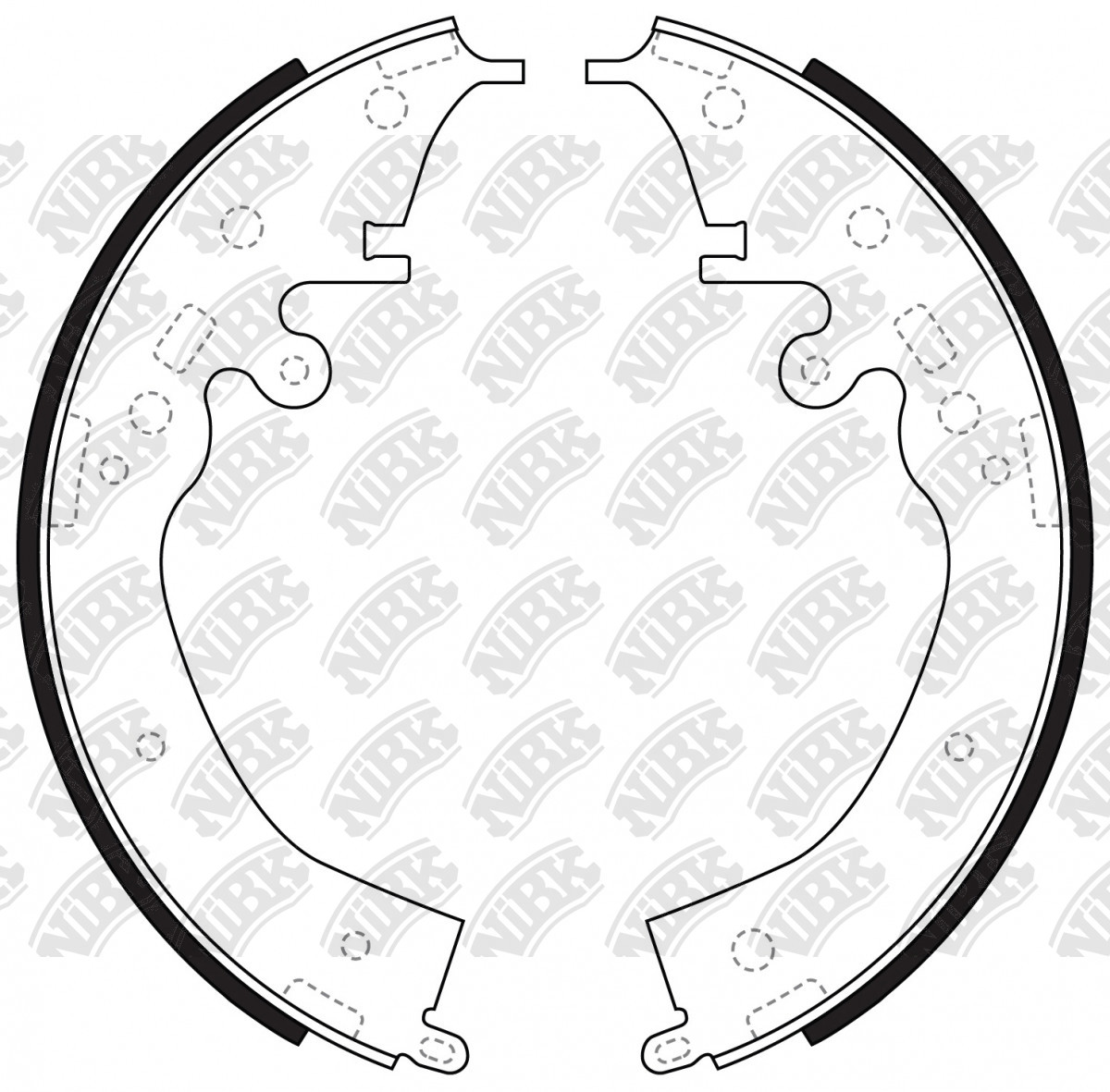

BRAKE SHOE » FN2402

Specification

Radius
127
Width
50
Pcs In Set
4
Thickness
6.5

Cross Reference

FMSI
S1105-1750
KASHIYAMA
K2427
TOYOTA
04495-0K130
TOYOTA
04495-0K140
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.15~ 2000 1TR-FE TGN120L RN1664V PN1803 DN1203 FN2402
09.18~ 2400 2GD-FTV GUN120R RN1664VRN2397V PN1803 DN1203 FN2402
05.15~ 2400 2GD-FTV GUN122L RN1664VRN2397V PN1803 DN1203 FN2402
05.15~ 2400 2GD-FTV GUN122R RN2397VRN1664V PN1803 DN1203 FN2402
05.15~ 2500 2KD-FTV KUN112 RN1664VRN2397V PN1803 DN1214 FN2402
01.15~ 2500 2KD-FTV KUN122L RN2397VRN1627VRN1319V PN1803 DN1203 FN2402FN2335
01.15~05.19 2500 2KD-FTV KUN122R RN1627VRN1319VRN2397V PN1803 DN1203 FN2402FN2335
06.15~ 2700 2TR-FE TGN121L RN2397VRN1664V PN1803 DN1203 FN2402
06.15~ 2700 2TR-FE TGN121R RN1664VRN2397V PN1803 FN2402
05.15~05.20 2800 1GD-FTV GUN123R RN2397VRN1664V PN1803 DN1203 FN2402
05.15~05.18 4000 1GRFE GGN120R RN2397V PN1803 DN1203 FN2402
12.23~ 2400 2GD-FTV GUN122L DN1203 FN2402
07.16~ 2000 1TR-FE TGN140L RN2397V PN1803 DN1203 FN2402
11.15~ 2700 2TR-FE TGN141L RN2397V PN1803 DN1203 FN2402
04.16~ 2800 1GD-FTV GUN143L RN2397V PN1803 DN1203 FN2402

Exemption from liability: the catalog data is advisory and can be used for reference only
