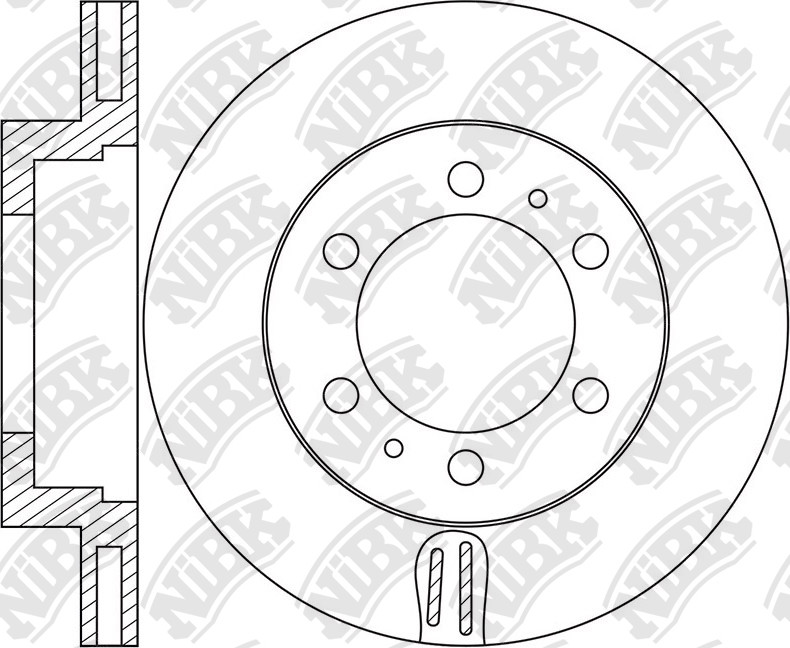

ROTOR DISC » RN1664V
Specification
Type
Vented
Outter Ø
319
Num. of holes
6
Disc Thickness (Max)
28
Height
67.2
Centering Diameter
108
Front/Rear
Front
Pitch Circle Ø
139.7
Drum Ø:
172
Disc Thickness (Min)
26
Structure Material
G3000
Cross Reference
TOYOTA
43512-0K090
TOYOTA
43512-0K100
TOYOTA
43512-0K101
TOYOTA
43512-0K110
TOYOTA
43512-0K140
TOYOTA
43512-0K150
TOYOTA
43512-0K160
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.05~04.16 | 2500 | 2KD-FTV | KUN60L | RN1664VRN1319V | PN1482PN1830PN0548 | DN1102 | FN0620 | |
| 01.05~04.12 | 2700 | 2TR-FE | TGN51L | RN1664V | PN1830PN1482 | DN1102 | FN0620 | |
| 01.06~11.16 | 2700 | 2TR-FE | TGN61L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 01.06~01.12 | 3000 | 1KD-FTV | KUN51L | RN1664V | PN1482 | FN0620 | ||
| 01.05~08.16 | 3000 | 1KD-FTV | KUN51R | RN1664VRN1319V | PN1482PN1830 | FN0620 | ||
| 09.05~12.15 | 3000 | 1KD-FTV | KUN61 | RN1664V | PN1482 | DN1102 | FN0620 | |
| 01.05~11.13 | 3000 | 5L-E | LAN50L | RN1664V | PN1482 | FN0620 | ||
| 08.08~10.15 | 4000 | 1GR-FE | GGN50L | RN1664V | PN1482 | FN0620 |
| 01.15~ | 2000 | 1TR-FE | TGN120L | RN1664V | PN1803 | DN1203 | FN2402 | |
| 09.18~ | 2400 | 2GD-FTV | GUN120R | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 05.15~ | 2400 | 2GD-FTV | GUN122L | RN1664VRN2397V | PN1803 | DN1203 | FN2402 | |
| 05.15~ | 2400 | 2GD-FTV | GUN122R | RN1664VRN2397V | PN1803 | DN1203 | FN2402 | |
| 05.17~ | 2400 | 2GD-FTV | GUN125 | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~ | 2400 | 2GD-FTV | GUN125L | RN1664V | PN1482PN0548 | DN1102 | FN0620 | |
| 05.15~ | 2400 | 2GD-FTV | GUN125R | RN1319VRN1664V | PN1482PN0548 | DN1102 | FN0620 | |
| 05.15~ | 2400 | 2GD-FTV | GUN135L | RN1446VRN1664V | PN1482 | DN1102 | FN0620FN0686 | |
| 05.15~ | 2400 | 2GD-FTV | GUN135R | RN1664VRN1446V | PN1482 | DN1102 | FN0620FN0686 | |
| 05.15~ | 2500 | 2KD-FTV | KUN112 | RN1664VRN2397V | PN1803 | DN1214 | FN2402 | |
| 05.15~07.17 | 2500 | 2KD-FTV | KUN125R | RN1664VRN1319V | PN0548PN1482 | DN1102 | FN0620 | |
| 05.15~ | 2500 | 2KD-FTV | KUN135L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~ | 2500 | 2KD-FTV | KUN135R | RN1664V | PN1482 | DN1102 | FN0686 | |
| 03.05~01.16 | 2500 | 2KD-FTV | KUN25R | RN1319VRN1664V | PN1482PN0548PN1830 | DN1102 | FN0620 | |
| 06.15~ | 2700 | 2TR-FE | TGN121L | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 06.15~ | 2700 | 2TR-FE | TGN121R | RN1664VRN2397V | PN1803 | FN2402 | ||
| 11.15~ | 2700 | 2TR-FE | TGN126L | RN1446VRN1664VRN1319V | PN0548PN1482 | DN1102 | FN0620 | |
| 01.21~ | 2700 | 2TR-FE | TGN127L | RN1664VRN1446VRN1319V | PN1482PN0548 | DN1102 | FN0620 | |
| 07.16~ | 2700 | 2TR-FE | TGN128L | RN1664VRN1446VRN1319V | PN0548PN1482 | DN1102 | FN0620 | |
| 07.16~ | 2700 | 2TR-FE | TGN138L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 01.04~01.18 | 2700 | 2TR-FE | TGN36L | RN1319VRN1664V | PN0548PN1830PN1482 | FN0620 | ||
| 01.04~01.18 | 2700 | 2TR-FE | TGN36R | RN1664VRN1319V | PN0548PN1482 | DN1102 | FN0620FN2305 | |
| 05.15~05.20 | 2800 | 1GD-FTV | GUN123R | RN2397VRN1664V | PN1803 | DN1203 | FN2402 | |
| 05.15~ | 2800 | 1GD-FTV | GUN126L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~ | 2800 | 1GD-FTV | GUN126R | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~ | 2800 | 1GD-FTV | GUN136R | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~07.17 | 3000 | 1KD-FTV | KUN126L | RN1446VRN1664V | PN1482 | DN1102 | FN0686FN0620 | |
| 05.15~01.18 | 3000 | 1KD-FTV | KUN126R | RN1664V | PN1482 | DN1102 | FN0686 | |
| 07.11~04.15 | 3000 | 1KD-FTV | KUN26L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 08.04~04.15 | 3000 | 1KD-FTV | KUN26R | RN1319VRN1664V | PN0548PN1482PN1830 | DN1102 | FN0620 | |
| 05.04~12.15 | 3000 | 1KD-FTV | KUN36R | RN1319VRN1664V | PN1830PN0548 | DN1102 | FN0620 | |
| 08.17~ | 4000 | 1GRFE | GGN125L | RN1664V | PN1482 | DN1102 | FN0620 | |
| 05.15~ | 4000 | 1GRFE | GGN125R | RN1664V | PN1482 | DN1102 | FN0620 | |
| 01.16~ | 4000 | 1GRFE | GGN135R | RN1664V | PN1482 | DN1102 | FN0686 |
