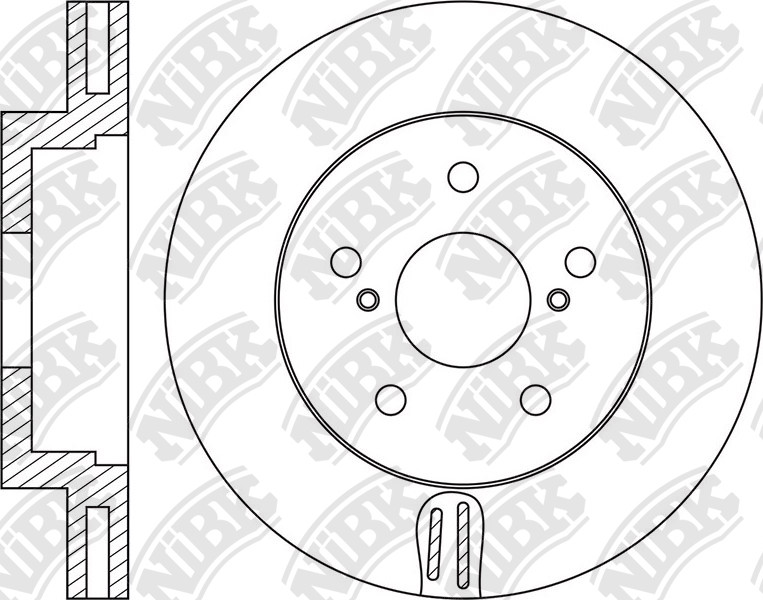

ROTOR DISC » RN1627V

Specification

Type
Vented
Outter Ø
275
Num. of holes
5
Disc Thickness (Max)
28
Height
58.3
Centering Diameter
62
Pitch Circle Ø
114.3
Front/Rear
Front
Disc Thickness (Min)
26
Structure Material
G3000
Drum Ø:
144

Cross Reference

TOYOTA
43512-0K120
TOYOTA
43512-0K240
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
02.05~12.15 2000 1TR-FE TGN15L RN1340VRN1627V PN1801PN1802 DN1203 FN2335
01.15~ 2500 2KD-FTV KUN122L RN2397VRN1627VRN1319V PN1803 DN1203 FN2402FN2335
01.15~05.19 2500 2KD-FTV KUN122R RN1319VRN2397VRN1627V PN1803 DN1203 FN2335FN2402
10.05~09.16 2500 2KD-FTV KUN15L RN1627VRN1340V PN1802PN1831PN1801 DN1203 FN2335
10.05~04.15 2700 2TR-FE TGN11L RN1627VRN1340V PN1802PN1801 DN1203 FN2335
08.08~07.11 2700 2TR-FE TGN16 RN1340VRN1627V PN1802PN1801 DN1203 FN2335
07.11~04.15 2700 2TR-FE TGN16L RN1627V PN1802 DN1203 FN2335
08.04~02.15 3000 1KD-FTV KUN16R RN1627VRN1340V PN1801PN1802 DN1203 FN2335
08.04~11.16 2000 1TR-FE TGN40R RN1340VRN1627V PN1801PN1802PN1831 DN1204 FN2335

Exemption from liability: the catalog data is advisory and can be used for reference only
