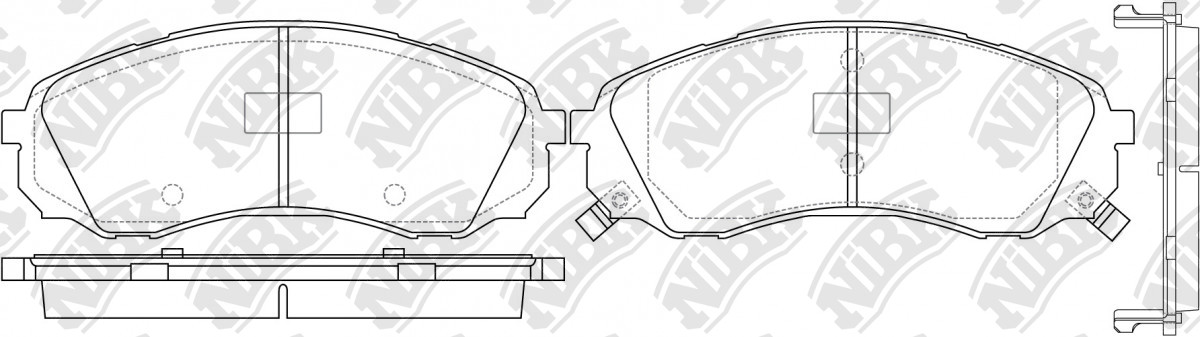

BRAKE PADS » PN0458
Specification
Length-1
164.5
Width-1
63.4
Thickness-1
17
Pcs In Set
4
Cross Reference
BENDIX AUS
DB1940
FMSI
D1566-8775
GREAT WALL
3501110XKV08A
GREAT WALL
3501110XKV08B
GREAT WALL
3501110XKV08C
HYUNDAI
58101-4DA00
HYUNDAI
58101-4DE00
HYUNDAI
58101-4HA00
HYUNDAI
58101-4HA01
HYUNDAI
58101-4HA05
HYUNDAI
58101-4HA10
HYUNDAI
58101-4HA15
HYUNDAI
58101-4HA30
HYUNDAI
58101-4HA50
HYUNDAI
58101-4HA60
HYUNDAI
581014DA00BR
HYUNDAI
S58101-4DE00
KASHIYAMA
D11236M
KASHIYAMA
D11236MH
KASHIYAMA
D11439MH
WVA
24598
WVA
24609
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.17~02.21 | 2000 | GW4C20A | RN2321V | PN0458 | RN2322V | PN6017 | ||
| 03.21~01.24 | 2000 | GW4C20B | RN2321V | PN0458 | PN6017 | |||
| 11.17~01.24 | 2000 | GW4D20T | RN2321V | PN0458 | RN2322V | PN6017 |
| 05.07~ | 2400 | G4KG | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 11P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 11P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 12P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P RHD | RN1457V | PN0458 | RN1656V | PN0457FN11001 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | VAN LONG - 3P LHD | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.07~08.15 | 2400 | G4KG | VAN LONG - 3P RHD | RN1457V | PN0458 | DN1498 | FN11001 | |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 3P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.18~ | 2500 | D4CB A2 | VAN LONG - 3P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 12.17~ | 2500 | D4CB A2 | WAGON LONG - 12P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 12.17~ | 2500 | D4CB A2 | WAGON LONG - 8P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P RHD | RN1457V | PN0458 | RN1656VDN1498 | FN11001PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 9P LHD | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.07~08.15 | 2500 | 4D56 | WAGON LONG - 12P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.07~08.15 | 2500 | 4D56 | WAGON LONG - 9P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.07~08.15 | 2500 | D4BH (4D56) | VAN LONG - 3P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 05.07~08.15 | 2500 | D4CB A2 | VAN LONG - 3P | RN1457V | PN0458 | RN1656VDN1498 | PN0457FN11002 | FN0715 |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 6P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 12P | RN1457V | PN0458 | RN1656VDN1498 | FN11001PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 8P | RN1457V | PN0458 | DN1498 | FN11001 | |
| 08.15~05.18 | 2500 | D4CB A2 | WAGON LONG - 8P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
