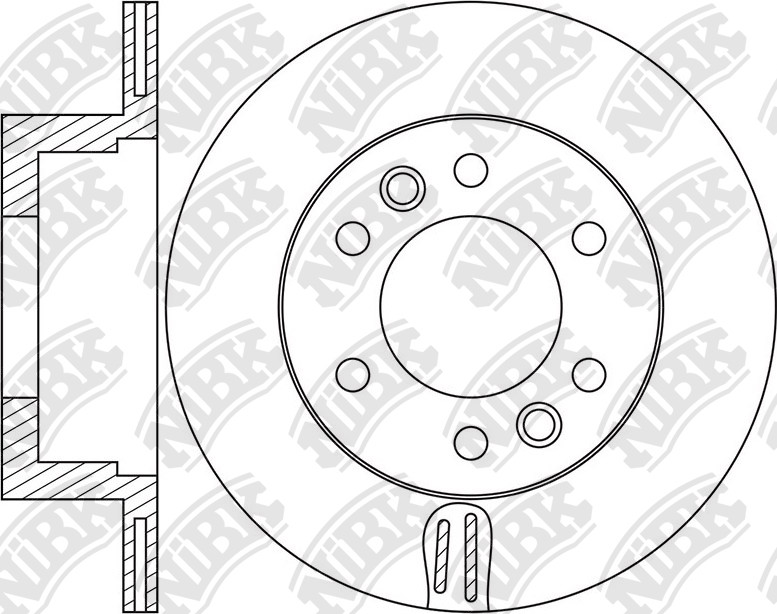

ROTOR DISC » RN1656V
Specification
Type
Vented
Outter Ø
324
Num. of holes
6
Disc Thickness (Max)
18
Height
82.5
Centering Diameter
96.3
Pitch Circle Ø
139.7
Front/Rear
Rear
Drum Ø:
210
Disc Thickness (Min)
16.4
Structure Material
G3000
Cross Reference
HYUNDAI
58411-4H300
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 05.07~ | 2400 | G4KG | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | TQ07 | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 11P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 11P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 01.18~ | 2500 | D4CB A2 | WGN 12P LHD | RN2433V | PN0458 | RN1656V | PN0457 | FN0715 |
| 08.15~12.17 | 2500 | D4CB A2 | WGN 12P RHD | RN1457V | PN0458 | RN1656V | FN11001PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P LHD | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2400 | G4KG | WAGON LONG - 12P RHD | RN1457V | PN0458 | DN1498RN1656V | FN11001PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | VAN LONG - 3P | RN1457V | PN0458 | RN1656VDN1498 | FN11002PN0457 | FN0715 |
| 08.15~05.18 | 2500 | D4CB A2 | VAN LONG - 6P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
| 05.07~08.15 | 2500 | D4CB A2 | WAGON LONG - 12P | RN1457V | PN0458 | DN1498RN1656V | PN0457FN11001 | FN0715 |
| 08.15~05.18 | 2500 | D4CB A2 | WAGON LONG - 8P | RN1457V | PN0458 | RN1656V | PN0457 | FN0715 |
