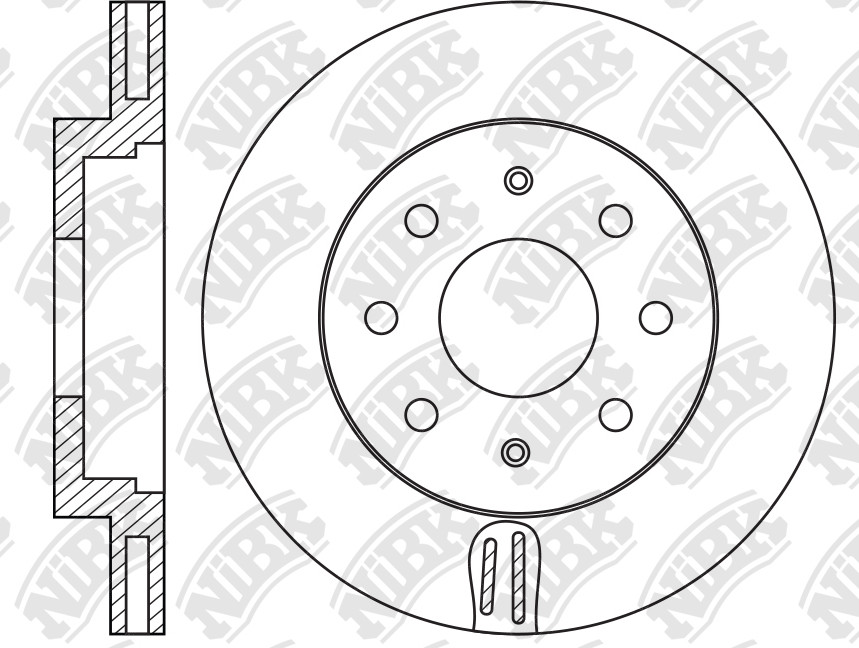

ROTOR DISC » RN1206V
Specification
Type
Vented
Disc Thickness (Max)
20
Num. of holes
6
Height
41
Centering Diameter
59
Pitch Circle Ø
100
Front/Rear
Front
Outter Ø
236
Drum Ø:
123
Disc Thickness (Min)
18
Structure Material
G3000
Cross Reference
CHEVROLET
96471274
CHEVROLET
96574633
DAEWOO
96574633
GM
09056028
GM
9056028
GM
96471274
GM
96574632
GM
96574633
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.05~01.08 | 1400 | F14D3 / L14 | 3DR HB CH | RN1206V | PN0370 | DN1680 | FN11174 | |
| 03.02~01.08 | 1400 | F14D3 / L14 | SA48 5DR HB | RN1206V | PN0374PN0370 | DN1668 | FN11174 | |
| 03.02~01.08 | 1400 | F14D3 / L14 | SDN CHL | RN1206V | PN0370PN0374 | DN1668 | FN11174 | |
| 03.02~02.08 | 1500 | F15S3 / LX6 | SA48 5DR HB RHD | RN1206V | PN0370 | DN1668DN1680 | FN11174 | |
| 03.02~02.08 | 1500 | F15S3 / LX6 | SF69 | RN1206V | PN0370 | DN1668DN1680 | FN11174 |
| 03.05~01.12 | 1400 | F14D3 / L14 | SA69 GEN | RN1206V | PN0370 | DN1680 | FN11174 | |
| 03.05~01.12 | 1400 | F14D3 / L14 | SF48 | RN1206V | PN0374PN0370 | DN1680 | FN11174 | |
| 03.05~01.12 | 1400 | F14D3 / L14 | SF69 | RN1206VRN2117V | PN0374PN0370 | DN1680 | FN11174 | |
| 12.07~01.12 | 1400 | F14D3 / L95 | SA69 EUR | RN1206V | PN0370 | DN1680 | FN11174 | |
| 12.07~01.12 | 1400 | F14D3 / L95 | SA69 GEN SDN | RN1206V | PN0370 | DN1680 | FN11174 |
| 01.08~01.12 | 1200 | B12D1 / LMU | SDN LHD | RN1206V | PN0370 | DN1680 | FN11174 | |
| 12.07~01.13 | 1400 | F14D3 / L95 | SA48 | RN1206V | PN0374PN0370 | DN1680 | FN11174 | |
| 12.07~01.13 | 1400 | F14D3 / L95 | TJ63 HB LHD | RN1206V | PN0370 | DN1680 | FN11174 | |
| 12.07~01.13 | 1400 | F14D4 / LDT | HB CHL | RN1206V | PN0370PN0374 | DN1680 | FN11174 | |
| 01.08~01.13 | 1500 | F15S | R69 | RN2117VRN1206V | PN0370PN0374 | DN1680 | FN11174 | |
| 01.08~01.13 | 1500 | F15S3 / LX6 | SA48 HB LHD | RN1206V | PN0374PN0370 | DN1680 | FN11174 | |
| 01.08~01.13 | 1500 | F15S3 / LX6 | TM63 HB RHD | RN2117VRN1206V | PN0370PN0374 | DN1680 | FN11174 | |
| 01.08~01.13 | 1500 | LV8 | SDN VTN | RN1206V | PN0370PN0374 | DN1680 | FN11174 |
| 01.10~01.17 | 800 | F8CV | HB LITE | RN1546RN1206V | PN0390 | DN1688 | FN11821 | |
| 05.07~01.19 | 800 | LBF / A08S3 | KA48 SG RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.10~01.16 | 1000 | B10D1 | MA48 | RN1206V | PN0570 | DN1680 | FN11174 | |
| 01.05~01.10 | 1000 | B10S1 | KF48 RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.13~01.16 | 1000 | LFM / B10D2 | RCE48 LHD | RN1206V | PN0570 | DN1680 | ||
| 01.10~01.16 | 1000 | LMT / B10D1 | 1C#48 | RN1206V | PN0570 | DN1680 | FN11174 | |
| 01.11~01.21 | 1200 | B12D1 / LMU | 1C#48 LHD | RN1206V | PN0570 | DN1680 | FN11174 | |
| 01.12~01.16 | 1200 | B12D1 / LMU | CT48 RHD | RN1206V | PN0570 | DN1680 | FN11174 |
