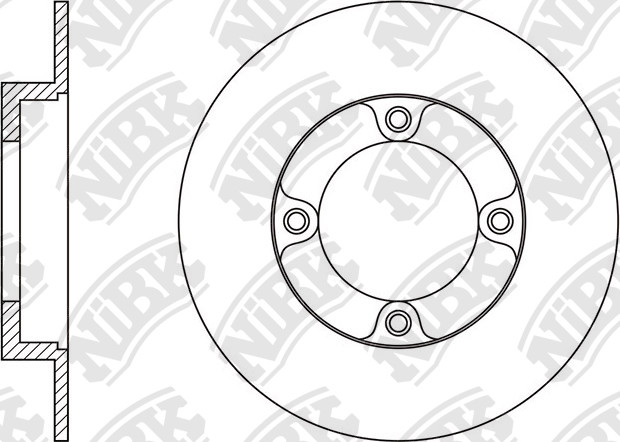

ROTOR DISC » RN1546
Specification
Type
Solid
Outter Ø
236
Num. of holes
4
Disc Thickness (Max)
12.5
Height
35.5
Centering Diameter
86
Pitch Circle Ø
102
Front/Rear
Front
Disc Thickness (Min)
11
Drum Ø:
107
Structure Material
G3000
Cross Reference
BENDIX
562138B
CHEVROLET
96284392
DAEWOO
96254392
DAEWOO
96284392
DAEWOO
96320531
GM
96284392
GM
96320531
GM
96455424
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M200 | RN1546 | PN0390 | DN1688 | FN11821 |
| 01.10~01.17 | 800 | F8CV | HB LITE | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 05.07~01.19 | 800 | LBF / A08S3 | KA48 SG RHD | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 800 | LBF / A08S3 | M04 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | M04 GEN RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 800 | LBF / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~05.07 | 800 | LQ2 / A08S3 | KA48 SG RHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.08 | 800 | LQ2 / A08S3 | MD6 GEN LHD | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~01.10 | 1000 | B10S1 | KF48 RHD | RN1546RN1206V | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | B10S1 | MJ61 GL | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.08~01.15 | 1000 | LA2 | M250 | RN1546 | PN0390 | DN1688 | FN11821 |
| 05.05~01.10 | 800 | F8CV | HB VTN | RN1206VRN1546 | PN0390 | DN1688 | FN11821 | |
| 01.98~08.00 | 800 | F8CV | M100 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~12.05 | 800 | F8CV | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 07.00~02.16 | 800 | F8CV | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 | |
| 08.07~01.11 | 800 | LBF / A08S3 | M200 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.03~05.05 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 01.05~09.13 | 1000 | B10S1 | M150 | RN1546 | PN0390 | DN1688 | FN11821 | |
| 09.04~02.16 | 1000 | B10S1 | M150 (UZ) | RN1546 | PN0390 | DN1688 | FN11821 |
