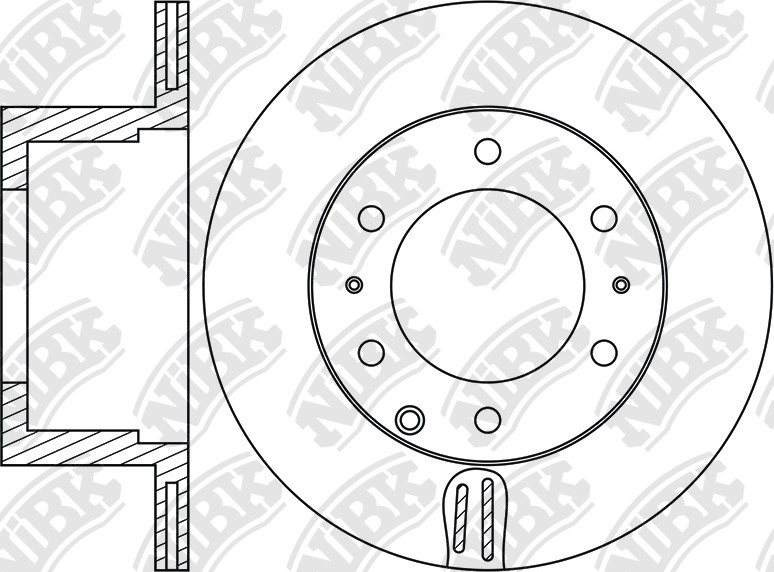

ROTOR DISC » RN1831V

RN1831V

Specification

Type
Vented
Outter Ø
312
Num. of holes
6
Disc Thickness (Max)
18
Height
102.5
Centering Diameter
106
Pitch Circle Ø
139.7
Front/Rear
Rear
Disc Thickness (Min)
16
Drum Ø:
210
Structure Material
G3000

Cross Reference

TOYOTA
42431-60080
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

TOYOTA   »   Land Cruiser

01.90~09.92 4000 3F-E FJ80G RN1090V PN1242 RN1831V PN1243 FN0642
01.90~09.92 4000 3F-E FJ80L RN1090V PN1242 RN1831VDN1222 FN1179PN1243FN2280 FN0642
01.90~09.92 4000 3F-E FJ80R RN1090V PN1242 DN1222RN1831V FN1179PN1243FN2280 FN0642
01.90~01.98 4200 1H-Z HZJ80L RN1090V PN1242 DN1222RN1831VDN1223 FN1179FN2280PN1243 FN0642
01.90~08.92 4200 1H-Z HZJ80R RN1090V PN1242 DN1222RN1157VRN1831VDN1223 FN2280PN1243FN1179 FN8905FN0642
01.90~08.92 4200 1HD-#T HDJ80L RN1066VRN1090V PN1242 RN1157VDN1222DN1223RN1831V FN1179FN2280PN1243 FN0642
01.90~08.92 4200 1HD-#T HDJ80R RN1090VRN1066V PN1242 DN1222RN1157VRN1831VDN1223 PN1243FN1179FN2280 FN0642
