ROTOR DISC » RN1093V

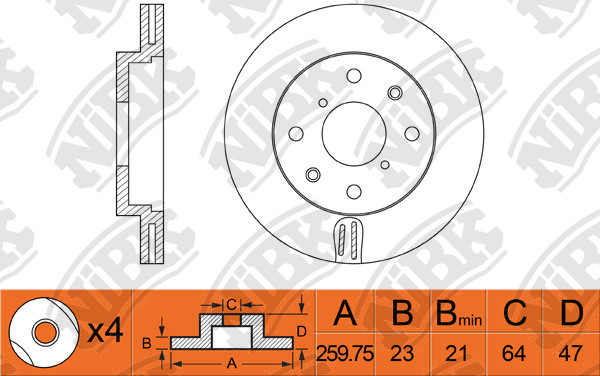

Specification
Type
Vented
Disc Thickness (Max)
23
Num. of holes
4
Height
47
Centering Diameter
64
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
260
Disc Thickness (Min)
21
Drum Ø:
141
Structure Material
G3000
Cross Reference
BENDIX
561713B
BENDIX EUR
561713B
HONDA
45251-S0A-940
HONDA
45251-S10-000
HONDA
45251-S1A-G60
HONDA
45251-SS0-000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.98~12.02 | 1600 | A16A5 | CF | RN1093V | PN8423 | RN1054 | FN28001 | |
| 01.99~01.03 | 1600 | D16B6 | CH5 | RN1093V | PN8106PN8526 | FN28001PN8109 | ||
| 09.97~10.02 | 1800 | F18B | CF3 | RN1093V | PN8423 | RN2402 | PN8398 |
| 10.95~09.01 | 2000 | B20B | RD1 JPN | RN1093VRN1104V | PN8254PN8484 | DN1387 | FN5524 | |
| 10.95~08.01 | 2000 | B20B | RD1 RHD | RN1104VRN1093V | PN8254PN8484 | DN1387 | FN5524 | |
| 11.96~08.01 | 2000 | B20B | RD3 | RN1093VRN1104V | PN8254PN8484 | DN1379 | FN5524 |
| 10.91~12.96 | 2000 | F20A | BB3 | RN1093V | PN8293 | RN2071 | PN8398 | |
| 11.96~10.01 | 2000 | F20A4 | BB9 | RN1093V | PN8293 | PN8398 | ||
| 09.91~11.96 | 2200 | F22A# | BA8 | RN1093V | PN8293 | RN2071 | PN8398 | |
| 01.91~10.96 | 2200 | F22B | BA8 JPN | RN1093V | PN8293 | RN2071 | PN8398 | |
| 10.96~08.00 | 2200 | F22B | BB5 | RN1093V | PN8293 | PN8398 | ||
| 11.96~10.01 | 2200 | F22B | BB7 | RN1093V | PN8293 | PN8398 |
