ROTOR DISC » RN1395V

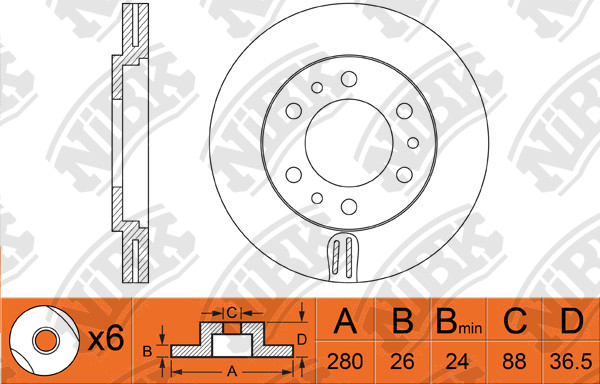

Specification
Type
Vented
Disc Thickness (Max)
26
Num. of holes
6
Height
36
Centering Diameter
88
Front/Rear
Front
Outter Ø
280
Hole Ø:
6xM12*1.25/ 3xM8*1.25
Pitch Circle Ø
109
Drum Ø:
145
Structure Material
G3000
Disc Thickness (Min)
24.6
Cross Reference
BENDIX
562063B
BENDIX
562064B
GREAT WALL
3103102-K00
GREAT WALL
3103102XK00XA
GREAT WALL
3103102XK00XB
ISUZU
8-94375-416-3
ISUZU
8-94375-416-4
ISUZU
8-94375-533-3
ISUZU
8-94375-533-4
ISUZU
8-94375553
ISUZU
8-97034-034-3
ISUZU
8-97034-035-3
ISUZU
8-97096-395-0
ISUZU
8-97207-701-0
ISUZU
97034035
OEM
569050
OEM
7943754163
OEM
8970460800
OEM
94375533
OPEL
569051
OPEL
97034034
VAUXHALL
94375416
VAUXHALL
94375553
VAUXHALL
97034035
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.92~12.97 | 3100 | 4JG2 | UBS69DW | RN1395V | PN4258 | RN1105V | PN4299 | FN83001 |
| 01.92~12.97 | 3100 | 4JG2 | UBS69GW | RN1395V | PN4258 | RN1105V | PN4299 | FN83001 |
| 02.98~08.02 | 3500 | 6VE1 | UBS26GW | RN1395V | PN4258 | RN1105V | PN4299 | FN83001 |
| 01.98~01.04 | 2200 | X22SE | UEB7VF | RN1395V | PN4258 | DN1436DN1437RN1105V | FN4462PN4299FNP4462 | FN83001 |
| 09.97~06.01 | 3200 | 6VD1 | UES7VF | RN2165VRN1395V | PN4258PN3414 | RN1105V | PN4299 | FN83001 |
