ROTOR DISC » RN1326V

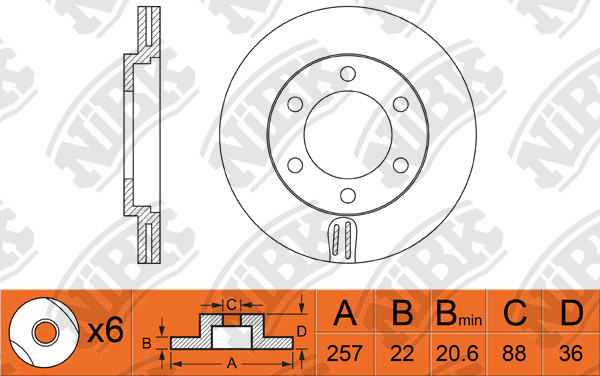

Specification
Type
Vented
Disc Thickness (Max)
22
Num. of holes
6
Height
36
Centering Diameter
88
Front/Rear
Front
Outter Ø
257
Drum Ø:
119
Hole Ø:
M12*1.25
Disc Thickness (Min)
20.6
Structure Material
G3000
Pitch Circle Ø
109
Cross Reference
BENDIX
561643B
GM
94172376
ISUZU
8-94172-376-1
ISUZU
8-94173-344
ISUZU
8-94173344-0
ISUZU
8941733441
ISUZU
8943619270
ISUZU
8943619271
ISUZU
8943724350
ISUZU
94172376
OEM
8941723760
OEM
8941733450
OEM
89436192701
OEM
93589243
OEM
9941723761
OEM
9943619271
OPEL
569801
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 04.98~05.02 | 2500 | 4JA1 | TFR54 | RN1326V | PN4196 | DN1423 | FN4452 | |
| 01.97~08.01 | 2500 | 4JA1-T | TF#54H | RN1326V | PN4196 | FNP4462FN4462 | ||
| 08.01~12.03 | 2500 | 4JA1-T | TF#54H | RN1326V | PN4196 | FNP4462FN4462 | ||
| 01.99~12.03 | 2800 | 4JB1 | TFS55 LHD | RN1326V | PN4196 | DN1577 | FN4462FNP4462 | |
| 01.99~12.03 | 2800 | 4JB1 | TFS55 RHD | RN1326V | PN4196 | DN1577 | FNP4462FN4462 | |
| 01.88~01.03 | 3100 | 4JG2 | TFR69HDK | RN1326V | PN4196 | DN1423 | FN4452 |
