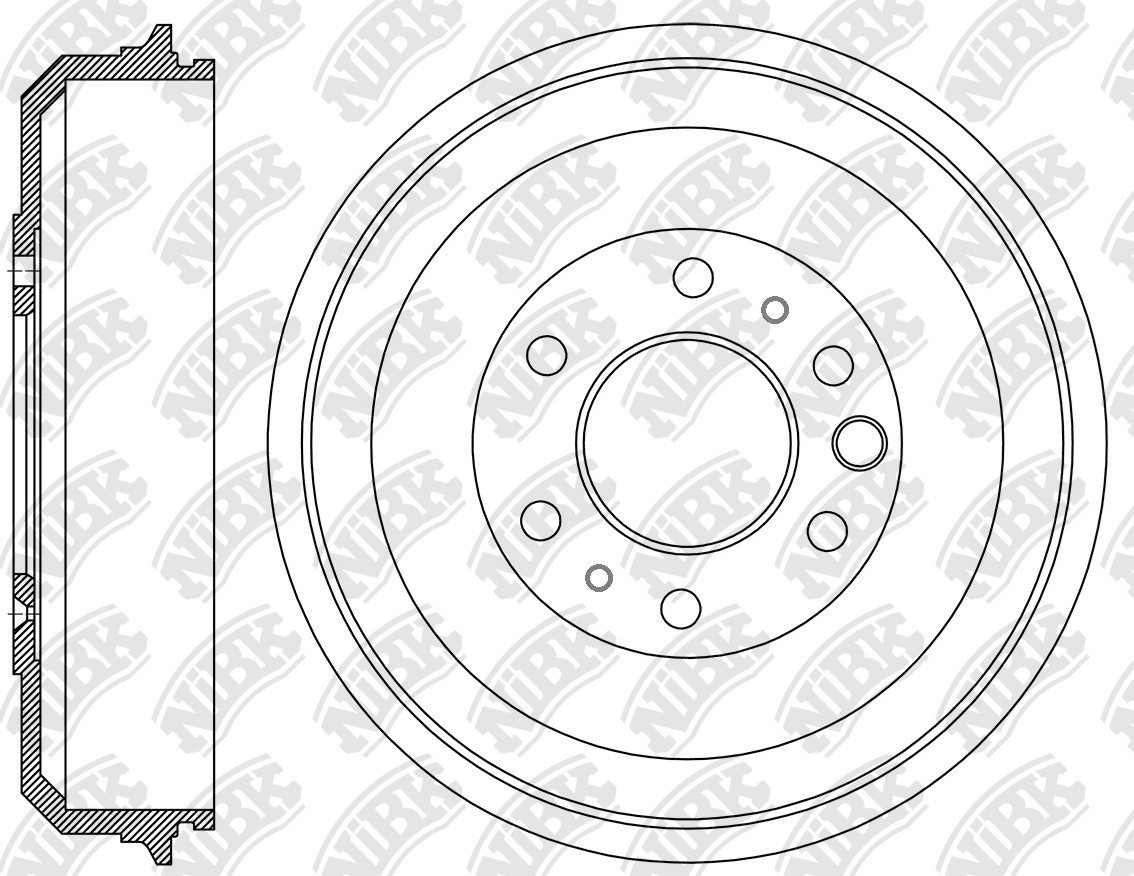

DRUM BRAKE » DN1124

DN1124

Specification

Outter Ø
335
Num. of holes
6
Hole Ø
12.4
Centering Diameter
101
Height
80.6
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000

Alternative

DN1426[NiBK]

Cross Reference

GREAT WALL
3502011-P00
ISUZU
8-97238-630-1
ISUZU
8-97360-506-0
ISUZU
8-98030-385-0
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

Great Wall Motors   »   Wingle 7

10.18~ 2000 GW4D20D CC1032PA RN1395V PN0502 DN1124RN2524V PN4299FN4467
Copyright © 2003-2024 JNBK Corporation. All Rights Reserved

Exemption from liability: the catalog data is advisory and can be used for reference only
