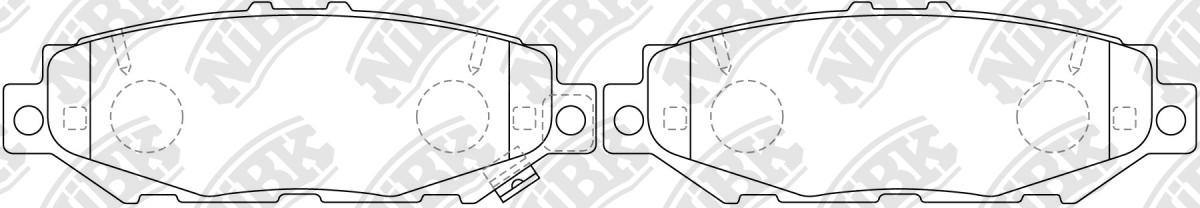

PERFORMANCE BRAKE PADS » PN1363S
Specification
Length-1
121.9
Width-1
41
Thickness-1
15.6
Variation
Cross Reference
AKEBONO
A-398WK
AKEBONO
AN-398
AKEBONO
AN-398WK
AKEBONO
AN369
AKEBONO
AN369WK
BENDIX EUR
DB1396
FMSI
D572-7452
HITACHI
NDP299C
KASHIYAMA
D2112
KASHIYAMA
D2125
KASHIYAMA
D2125M02
TOYOTA
04466-24010
TOYOTA
04466-24020
TOYOTA
04466-26010
TOYOTA
04466-26020
TOYOTA
04466-30020
TOYOTA
04466-30030
TOYOTA
04466-30100
TOYOTA
04466-30140
TOYOTA
04466-50040
TOYOTA
04466-50041
TOYOTA
0446630050
TOYOTA
04492-14150
TOYOTA
04492-14160
TOYOTA
04492-24060
TOYOTA
04492-24070
TOYOTA
04492-24080
TOYOTA
04492-24090
TOYOTA
04492-24100
TOYOTA
04492-30140
TOYOTA
04492-30150
TOYOTA
04492-50040
TOYOTA
04492-50060
TOYOTA
AY060-TY007
TOYOTA
AY060-TY017
TOYOTA
V9118-2014
TOYOTA
V9118-2016
TOYOTA
V9118-B014
TOYOTA
V9118-B016
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.91~08.97 | 3000 | 2JZ-G#E | JZS147 | RN1531VRN1150V | PN1324PN1228PN1231 | RN1488V | PN1363 | FN0567 |
| 10.91~08.97 | 3000 | 2JZ-GTE | JZS147 | RN1150V | PN1231PN1324 | RN1488V | PN1363 | |
| 10.92~08.97 | 4000 | 1UZ-FE | UZS143 | PN1324 | PN1363 | FN0567 |
| 08.98~07.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-G## | JZX90 | RN1150VRN1305V | PN1228PN1324 | RN1487RN2029V | PN1323PN1363 | FN0669 |
| 08.96~06.01 | 2500 | 1JZ-GE | JZX100 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.93~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.98~06.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX100 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 2500 | 1JZ-GE | JZX90 | RN1305V | PN1228 | RN1487 | PN1323PN1363 | FN0669 |
| 10.93~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1322PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~08.01 | 2000 | GS151 | PN1434PN1228PN1322 | PN1323PN1363PN1409 | ||||
| 08.95~12.01 | 2000 | 1G-FE | GS151H | RN1305V | PN1228 | RN1487 | PN1363 | |
| 08.95~09.99 | 2400 | 2L-TE | LS151H | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~08.01 | 2500 | 1JZ-GE | JZS151 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~08.01 | 2500 | 1JZ-GE | JZS153 | PN1228 | PN1363 | |||
| 12.95~12.01 | 3000 | 2JZ-GE | JZS155L | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.91~08.95 | 4000 | UZS141 | PN1228 | PN1363 | ||||
| 10.92~08.95 | 4000 | UZS143 | PN1324 | PN1363 | ||||
| 10.92~08.95 | 4000 | UZS145 | PN1324 | PN1363 | ||||
| 10.91~08.95 | 4000 | UZS147 | PN1228 | PN1363 |
| 10.91~08.95 | 3000 | 2JZ-GE | JZS147 | RN1531V | PN1228 | PN1363 | FN0567 | |
| 10.91~08.95 | 3000 | 2JZ-GE | JZS149 | PN1228 | PN1363 | |||
| 01.95~12.01 | 3000 | 2JZ-GE | JZS155 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 08.95~09.99 | 4000 | 1UZ-FE | UZS151 | RN1531V | PN1228 | PN1363 | FN0567 | |
| 01.95~01.01 | 4000 | 1UZ-FE | UZS155 | RN1150V | PN1324 | RN1488V | PN1363 | |
| 08.95~09.99 | 4000 | 1UZ-FE | UZS157 | PN1228 | PN1363 |
| 08.95~04.98 | 2700 | 3RZ-FE | RCH11W | RN1266V | PN1516PN1237 | RN1605VDN1115 | PN1363FN2330 | FN0567 |
| 08.96~05.02 | 3000 | 1KZ-TE | KCH10W | RN1266V | PN1516PN1237 | RN1605V | FN2330PN1363 | FN0567 |
| 10.95~05.02 | 3000 | 1KZ-TE | KCH16W | RN1304V | PN1237 | DN1252RN1633V | PN1363FN2330 | FN0567 |
| 05.97~05.02 | 3400 | 5VZ-FE | VCH10W | RN1266V | PN1237PN1516 | RN1605V | PN1363 | |
| 05.97~05.02 | 3400 | 5VZ-FE | VCH16W | RN1304V | PN1237 | RN1633V | PN1363 | FN0567 |
| 04.97~05.02 | 2700 | 3RZ-FE | RCH41W | RN1266V | PN1516PN1237 | RN1605V | PN1363 | FN0567 |
| 01.97~05.02 | 2700 | 3RZ-FE | RCH47W | RN1304V | PN1237 | RN1633V | PN1363 | FN0567 |
| 04.97~07.99 | 3000 | 1KZ-TE | KCH40G | RN1266V | PN1237PN1516 | RN1605V | PN1363 | FN0567 |
| 04.97~05.02 | 3000 | 1KZ-TE | KCH40W | RN1266V | PN1237PN1516 | RN1605V | PN1363 | FN0567 |
| 04.97~09.99 | 3000 | 1KZ-TE | KCH46G | RN1304V | PN1237 | RN1633V | PN1363 | |
| 04.97~05.02 | 3000 | 1KZ-TE | KCH46W | RN1304V | PN1237 | RN1633V | PN1363 | FN0567 |
| 08.98~01.01 | 2000 | 1G-FE | GX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 09.96~07.01 | 2500 | 1JZ-GE | JZX100 | RN1305VRN1150V | PN1228PN1324 | RN2029VRN1487 | PN1409PN1363PN1421 | FN0669 |
| 09.96~10.00 | 2500 | 1JZ-GE | JZX105 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 01.92~09.96 | 2500 | 1JZ-GE | JZX93 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
| 10.92~09.96 | 3000 | JZX91 | RN1305V | PN1228 | RN1487 | PN1363PN1323 | ||
| 09.96~07.01 | 3000 | 2JZ-GE | JZX101 | RN1305V | PN1228 | RN1487 | PN1363 | FN0669 |
