ROTOR DISC » RN1320V

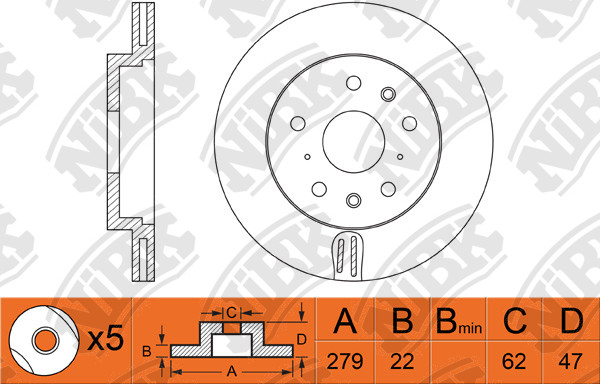

Specification
Type
Vented
Disc Thickness (Max)
22
Num. of holes
5
Height
47
Centering Diameter
62
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
279.6
Drum Ø:
145.5
Structure Material
G3000
Disc Thickness (Min)
20
Variation
Cross Reference
FIAT
71742850
FIAT
71768306
SUZUKI
55311-79J03
SUZUKI
55311-80J01
SUZUKI
55311-80J02
SUZUKI
55311-80J03
SUZUKI
5531179J01
SUZUKI
5531179J01000
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 06.06~ | 1600 | 189 | RN1320V | PN9803 | DN1371 | FN0634 | ||
| 06.06~ | 1600 | M16A | 189 | RN1320V | PN9803 | DN1371 | FN0634 | |
| 03.06~09.09 | 1900 | D19AA | 189 | RN1320V | PN9803 | DN1371RN1755 | PN8398FN0634 |
| 05.06~ | 1500 | M15A | YA11S | RN1320V | PN2201 | DN1372 | FN9801 | |
| 05.06~10.14 | 1500 | M15A | YB11S | RN1320V | PN2201 | DN1372 | FN9801 | |
| 06.07~ | 1500 | M15A | YC11S | RN1320V | PN2201 | DN1372 | FN9801 | |
| 06.06~12.15 | 1600 | 9HX | YY5 | RN1320V | PN9803 | RN1755 | FN0634PN8398 | |
| 07.06~03.16 | 1600 | M16A | GYA21S | RN1320V | PN2201 | RN1524RN1755DN1372 | FN9801PN8398 | |
| 06.06~12.15 | 1600 | M16A | GYC21S SDN | RN1320V | PN2201 | RN1524DN1372RN1755 | FN9801PN8398 | |
| 06.06~12.11 | 1600 | M16A | RW416 MAGYAR | RN1320V | PN9803 | RN1755DN1371 | FN0634PN8398 | |
| 02.08~11.11 | 1600 | M16A | RW416-4,5 HB RHD | RN1320V | PN2201 | RN1524 | PN8398 | |
| 11.11~12.15 | 1600 | M16A | RW416-6 RHD | RN1320V | PN2201 | RN1524 | PN8398FN9801 | |
| 06.06~12.15 | 1900 | D19AA | RW419 | RN1320V | PN9803 | PN8398 | ||
| 07.09~01.16 | 2000 | D20AA | GY | RN1320V | PN9803 | RN1755 | FN0634PN8398 | |
| 06.06~01.10 | 2000 | J20A | JS2YA4 | RN1320V | PN2201 | RN1524 | FN9801PN8398 | |
| 04.07~07.12 | 2000 | J20A | JS2YC4 SDN | RN1320V | PN2201 | DN1372RN1524 | FN9801PN8398 | |
| 07.06~05.09 | 2000 | J20A | YA41S | RN1320V | PN2201 | RN1524 | PN8398 | |
| 07.06~05.09 | 2000 | J20A | YB41S | RN1320V | PN2201 | RN1524 | PN8398 | |
| 07.09~04.14 | 2000 | J20B | JS2YA5 | RN1320V | PN2201 | RN1524 | PN8398 | |
| 07.09~04.14 | 2000 | J20B | JS2YB5 | RN1320V | PN2201 | RN1524 | PN8398 | |
| 07.09~04.14 | 2000 | J20B | JS2YC5 SDN | RN1320V | PN2201 | RN1524DN1372 | PN8398FN9801 | |
| 01.10~06.12 | 2000 | J20B | YB41S | RN1320VRN1692V | PN2201 | RN1524RN1693 | FN9801PN8398 | |
| 06.12~03.14 | 2000 | J20B | YB51S RHD | RN1320V | PN2201 | RN1524 | PN8398 |
