NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1199V

ROTOR DISC » RN1199V

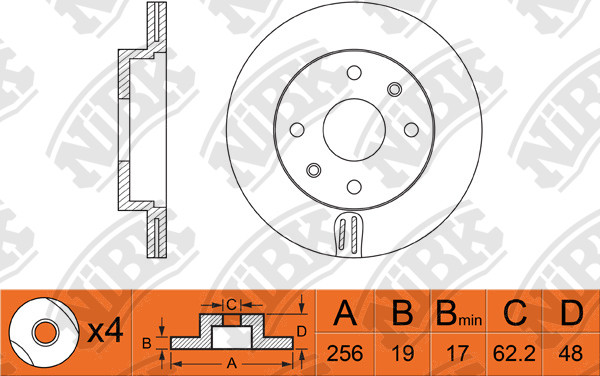

Specification

Type

Vented

Disc Thickness (Max)

19

Num. of holes

4

Height

48

Centering Diameter

62.2

Pitch Circle Ø

100

Front/Rear

Front

Outter Ø

256

Drum Ø:

126

Disc Thickness (Min)

17

Structure Material

G3000

Cross Reference

BENDIX EUR

562427B

HYUNDAI

51712-1C050

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » Getz

06.06~09.11	1100	G4HG	5DR HB VTN	RN1779V RN1199V	PN0091	DN1507 DN1508	FN0610 FN0609
07.02~12.06	1100	G4HG	BT51 5DR RHD	RN1199V RN1779V	PN0091	DN1507	FN0610
11.06~09.11	1100	G4HG	BT51 5DR RHD	RN1199V RN1779V	PN0091	DN1507	FN0610
07.02~10.06	1300	G4EA	BT31 3DR LHD	RN1199V	PN0091	DN1508	FN0609
09.02~10.05	1500	D3EA	PA02	RN1199V	PN0091	DN1508	FN0609
10.05~09.11	1500	D4FA	BT51 5DR	RN1199V	PN0091	RN1778 DN1508	FN0609 PN0539	FN0661
09.02~10.06	1600	G4ED	BU31 3DR RHD	RN1199V	PN0091	DN1508	FN0609
10.06~09.11	1600	G4ED	BU31 3DR RHD	RN1199V	PN0091	DN1508	FN0609
09.02~10.05	1600	G4ED	BU51	RN1199V	PN0091	DN1508	FN0609
