ROTOR DISC » RN1143V

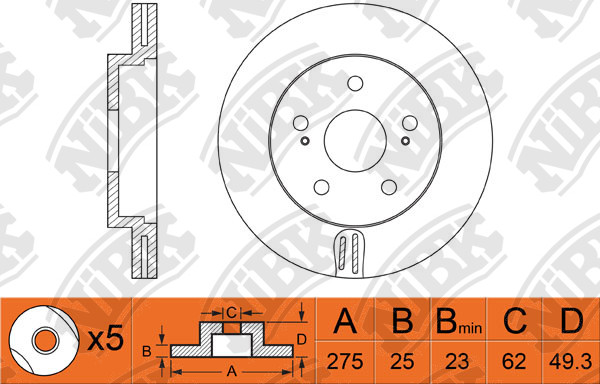

Specification
Type
Vented
Disc Thickness (Max)
25
Num. of holes
5
Height
49.3
Centering Diameter
62
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
275
Drum Ø:
141.2
Disc Thickness (Min)
23
Structure Material
G3000
Cross Reference
BENDIX
562269B
TOYOTA
43512-32250
TOYOTA
43512-42030
TOYOTA
43512-42031
TOYOTA
43512-42032
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.90~06.92 | 2000 | 1VZ-FE | VZV30 | RN1143V | PN1260 | RN1486 | PN1321 | FN0633 |
| 07.90~06.92 | 2000 | 1VZ-FE | VZV31 | RN1143V | PN1260 | RN1486 | PN1321 | FN0633 |
| 07.90~06.92 | 2500 | 4VZ-FE | VZV32 | RN1143V | PN1260 | RN1486 | PN1321 | FN0633 |
| 05.91~06.94 | 2500 | 4VZ-FE | VZV33 | RN1143V | PN1260 | RN1486 | PN1321 | FN0633 |
| 06.00~11.05 | 1800 | 1ZZ-FE | ZCA25L | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 1800 | 1ZZ-FE | ZCA25W | RN1143V | PN1447 | DN1211 | FN2404 | |
| 01.00~12.04 | 1800 | 1ZZ-FE | ZCA26L | RN1143V | PN1447 | RN1207DN1211 | PN1424FN2333FN2404 | FN0567 |
| 06.00~11.05 | 1800 | 1ZZ-FE | ZCA26W | RN1143V | PN1447 | DN1211 | FN2333FN2404 | |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA20R | RN1143V | PN1447 | DN1211RN1207 | FN2333PN1424 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA20W | RN1143V | PN1447 | RN1207DN1211 | FN2333PN1424 | FN0567 |
| 08.00~11.05 | 2000 | 1AZ-FE | ACA21L | RN1143V | PN1447 | RN1207DN1211 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA21R | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333FN2404 | FN0567 |
| 08.00~07.03 | 2000 | 1AZ-FE | ACA26L | RN1143V | PN1447 | DN1211 | FN2404FN2333 | |
| 05.00~11.05 | 2000 | 1AZ-FSE | ACA21W | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 2000 | 1CD-FTV | CLA21L | RN1143V | PN1447 | DN1211RN1207 | FN2333PN1424 | FN0567 |
| 01.00~11.05 | 2400 | 2AZ-FE | ACA22R | RN1143V | PN1447 | RN1207 | PN1424 | FN0567 |
| 07.03~11.05 | 2400 | 2AZ-FE | ACA28L | RN1143V | PN1447 | DN1211RN1207 | FN2404PN1424 | FN0567 |
