ROTOR DISC » RN1207

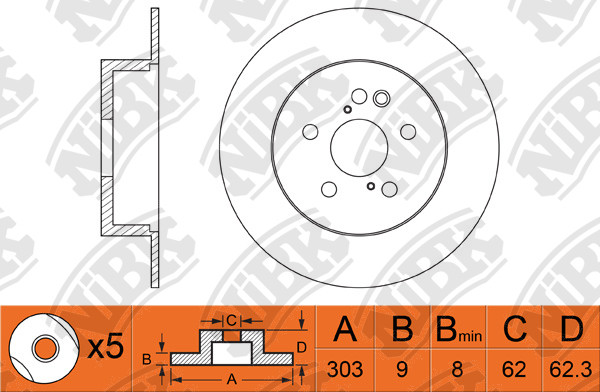

Specification
Type
Solid
Disc Thickness (Max)
9
Num. of holes
5
Height
62.3
Centering Diameter
62
Pitch Circle Ø
114.3
Front/Rear
Rear
Outter Ø
303
Hole Ø:
14.7
Drum Ø:
190
Disc Thickness (Min)
8
Structure Material
G3000
Variation
Cross Reference
Chery
T11-3502075
Chery
T11-6GN3502075
LIFAN
S3502110
TOYOTA
42431-42030
TOYOTA
42431-42040
TOYOTA
42431-42041
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 11.05~07.13 | 1600 | SQR481F | T11 | RN2551V | PN0838W | RN1207 | PN1424 | |
| 08.13~11.16 | 1600 | SQRE4G16 | T11 | RN2551V | PN0838W | RN1207 | PN0846 | |
| 11.08~07.12 | 1800 | SQR481FC | T11 | RN2551V | PN0838W | RN1207 | PN1424 | |
| 11.05~10.08 | 2400 | 4G64 | T11 | RN1347V | PN0018W | RN1207 | PN1424 |
| 06.00~11.05 | 1800 | 1ZZ-FE | ZCA25L | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333 | FN0567 |
| 01.00~12.04 | 1800 | 1ZZ-FE | ZCA26L | RN1143V | PN1447 | RN1207DN1211 | PN1424FN2333FN2404 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA20R | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA20W | RN1143V | PN1447 | RN1207DN1211 | FN2333PN1424 | FN0567 |
| 08.00~11.05 | 2000 | 1AZ-FE | ACA21L | RN1143V | PN1447 | RN1207DN1211 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FE | ACA21R | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333FN2404 | FN0567 |
| 05.00~11.05 | 2000 | 1AZ-FSE | ACA21W | RN1143V | PN1447 | RN1207DN1211 | PN1424FN2333 | FN0567 |
| 05.00~11.05 | 2000 | 1CD-FTV | CLA21L | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2333 | FN0567 |
| 08.96~05.00 | 2000 | 3S-#E | SXA10W | RN1120V | PN1322 | RN1207DN1211 | PN1424FN2333 | FN0567 |
| 04.95~05.00 | 2000 | 3S-#E | SXA11 | RN1120V | PN1322 | RN1207DN1211 | PN1424FN2333 | |
| 01.00~11.05 | 2400 | 2AZ-FE | ACA22R | RN1143V | PN1447 | RN1207 | PN1424 | FN0567 |
| 07.03~11.05 | 2400 | 2AZ-FE | ACA28L | RN1143V | PN1447 | DN1211RN1207 | PN1424FN2404 | FN0567 |
