NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1951V

ROTOR DISC » RN1951V

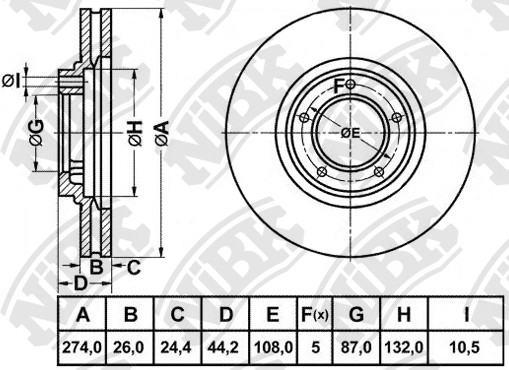

Specification

Type

Vented

Outter Ø

274

Num. of holes

5

Disc Thickness (Max)

26

Height

44.3

Centering Diameter

87

Pitch Circle Ø

108

Drum Ø:

132

Disc Thickness (Min)

24.4

Structure Material

G3000

Front/Rear

Front

Hole Ø:

10.5

Cross Reference

HYUNDAI

51712-4F000

HYUNDAI

58129-4A200

HYUNDAI / KIA

517124F100

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

HYUNDAI » H1 Pick-up Libero

10.06~12.07

2500

4D56

SR

RN1951V

HYUNDAI » H1 Starex

05.97~09.04	2400	G4CS	A1	RN1951V RN1121V	PN0434	DN1480 DN1477	FN0595
01.04~01.07	2400	G4JS	WAGON SHORT - 9P	RN1951V	PN0103	DN1481	FN11002
11.01~12.07	2400	L4CS	A1	RN1951V	PN0103 PN0434	DN1481 DN1480	PN0447
06.00~09.04	2500	D4CB A1	WAGON SHORT - 9P	RN1951V	PN0103	DN1481	PN0447 FN11002	FN11005

HYUNDAI » H100 Truck

02.04~	2500	D4CB A2	HR	RN1951V	PN0434 PN0600	DN1489	FN0814 FN3350
01.04~	2600	D4BB	HEH75B555	RN1951V	PN0600	DN1489 DN1457	FN0814
06.16~	2600	D4BB	HR17	RN1951V	PN0600	DN1457	FN0814
12.03~01.07	2600	D4BB	PA04 LHD	RN1951V	PN0600	DN1489	FN0814
01.04~	2600	D4BB	TRUCK VTN	RN1951V	PN0600	DN1457 DN1489	FN0814

HYUNDAI » Porter

12.03~08.16	2500	D4CB A1	HRU04	RN1951V	PN0600	DN1489	FN0814
12.03~08.16	2500	D4CB A2	HR04	RN1951V	PN0600	DN1489	FN0814
06.16~	2500	D4CB A2	HR17	RN1951V		DN1489	FN0814
