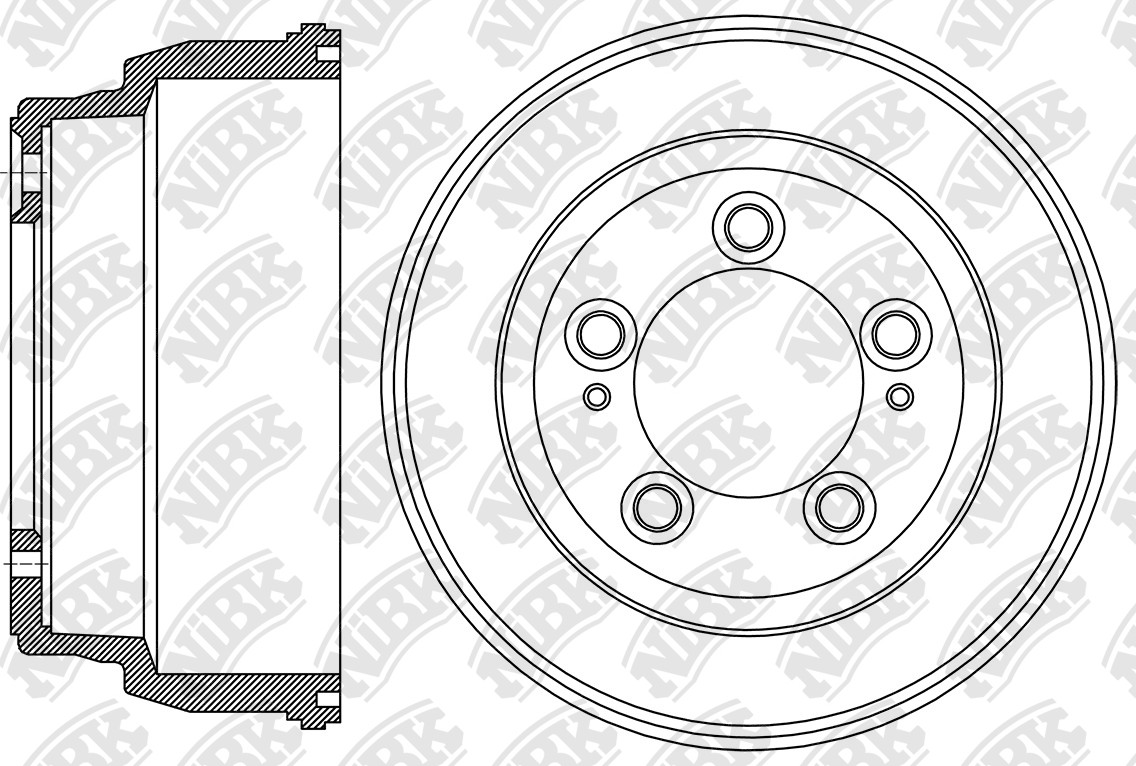

DRUM BRAKE » DN1489

DN1489

Specification

Outter Ø
259
Num. of holes
5
Hole Ø
13.6
Centering Diameter
113
Height
120
Pitch Circle Ø
150
Drum Ø
220
Structure Material
G3000

Cross Reference

HYUNDAI
58411-4F300
HYUNDAI / KIA
58411-4F000
HYUNDAI / KIA
58411-4F001
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe

HYUNDAI   »   H100 Truck

02.04~ 2500 D4CB A2 HR RN1951V PN0600PN0434 DN1489 FN0814FN3350
01.04~ 2600 D4BB HEH75B555 RN1951V PN0600 DN1457DN1489 FN0814
12.03~01.07 2600 D4BB PA04 LHD RN1951V PN0600 DN1489 FN0814
01.04~ 2600 D4BB TRUCK VTN RN1951V PN0600 DN1489DN1457 FN0814

HYUNDAI   »   Porter

12.03~08.16 2500 D4CB A1 HRU04 RN1951V PN0600 DN1489 FN0814
12.03~08.16 2500 D4CB A2 HR04 RN1951V PN0600 DN1489 FN0814
06.16~ 2500 D4CB A2 HR17 RN1951V DN1489 FN0814
Copyright © 2003-2024 JNBK Corporation. All Rights Reserved

Exemption from liability: the catalog data is advisory and can be used for reference only
