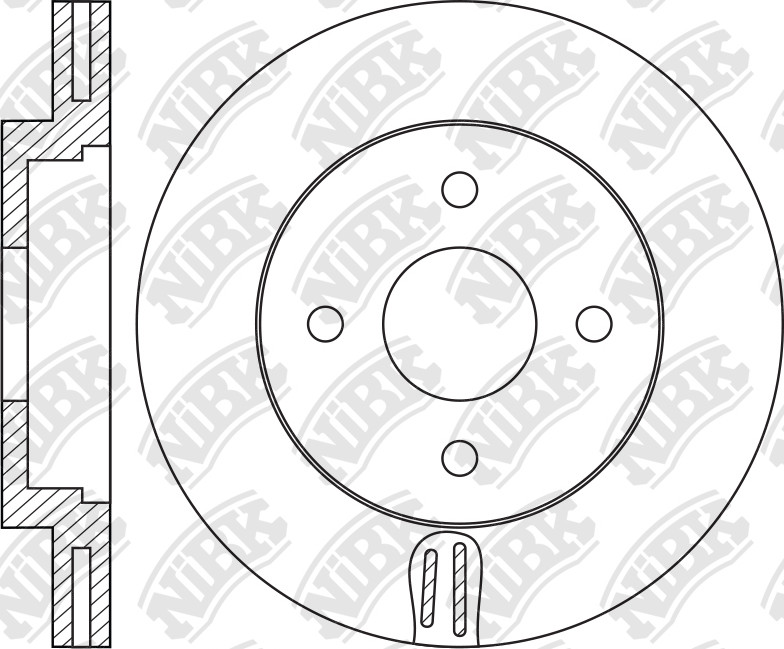

ROTOR DISC » RN1944V

Specification

Type
Vented
Outter Ø
270
Num. of holes
4
Disc Thickness (Max)
24
Height
45.2
Centering Diameter
64
Pitch Circle Ø
100
Drum Ø:
143.7

Cross Reference

MITSUBISHI
MN116736
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.04~01.10 1500 4A91 Z23W RN2034VRN1944V PN3462PN3500 DN1356RN1923DN1340 FN1267PN3314FN6729
10.04~06.12 1500 4G15 Z27W RN1944V PN3462 RN1923 PN3314
05.06~11.14 1500 4G15T Z27WG RN1944V PN3462 RN1923 PN3314
05.06~06.12 1500 4G15T Z27AG RN1114VRN1944V PN3462PN3126 RN1923 PN3593PN3314

Exemption from liability: the catalog data is advisory and can be used for reference only
