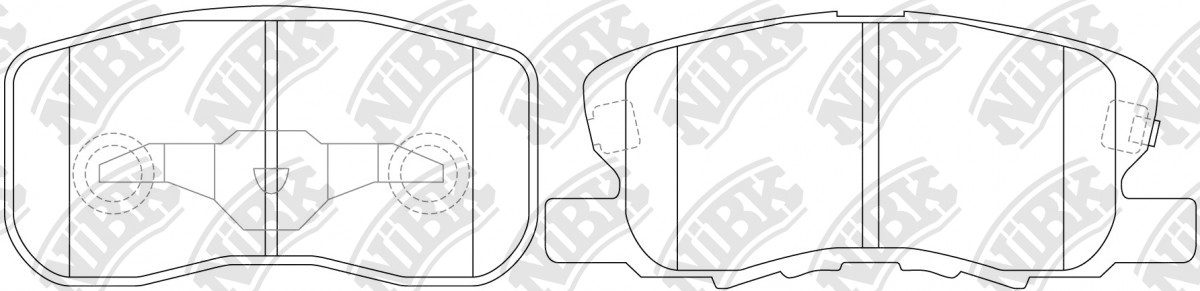

BRAKE PADS » PN3500

Specification

Length-1
121.9
Width-1
51.5
Thickness-1
15.3
Length-2
94
Width-2
50
Thickness-2
15.3
Pcs In Set
4

Cross Reference

AKEBONO
A-660WK
AKEBONO
AN-660WK
BENDIX
DB1796
FMSI
D1514-8723
HITACHI
NDP377C
KASHIYAMA
D6121
KASHIYAMA
D612102
MITSUBISHI
MN116151
years Eng Eng No BodyBody Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
10.04~07.12 1300 4A90 Z21A RN2034V PN3500 DN1340DN1356 FN1267FN6729
10.02~06.12 1300 4A90 Z22A PN3500 DN1340 FN6729
10.02~11.04 1300 4G19 Z25A RN2034V PN3500 DN1340 FN6729
10.02~10.04 1300 4G19 Z26A RN2034V PN3500 DN1340 FN6729
10.04~06.10 1500 4A91 Z23A RN2034V PN3500 DN1340DN1356 FN1267FN6729
10.02~06.12 1500 4A91 Z24A RN2034V PN3500 DN1340 FN6729
10.02~10.04 1500 4G15 Z28A PN3500 DN1340 FN6729
01.03~10.11 1500 4G15T Z27A RN2034V PN3500 DN1340 FN6729
06.03~11.04 1500 4G15T Z27A RN2034VRN1944V PN3500PN3462PN3126 DN1340RN1923 PN3593PN3314FN6729
11.06~06.12 1300 4A90 Z21W RN2034V PN3500 DN1356 FN1267
05.10~06.12 1300 4A90 Z22W RN2034V PN3500 DN1340 FN6729
10.04~01.10 1500 4A91 Z23W RN1944VRN2034V PN3462PN3500 DN1340DN1356RN1923 PN3314FN6729FN1267
10.04~07.12 1500 4A91 Z24W RN2034V PN3500 DN1340 FN6729

Exemption from liability: the catalog data is advisory and can be used for reference only
