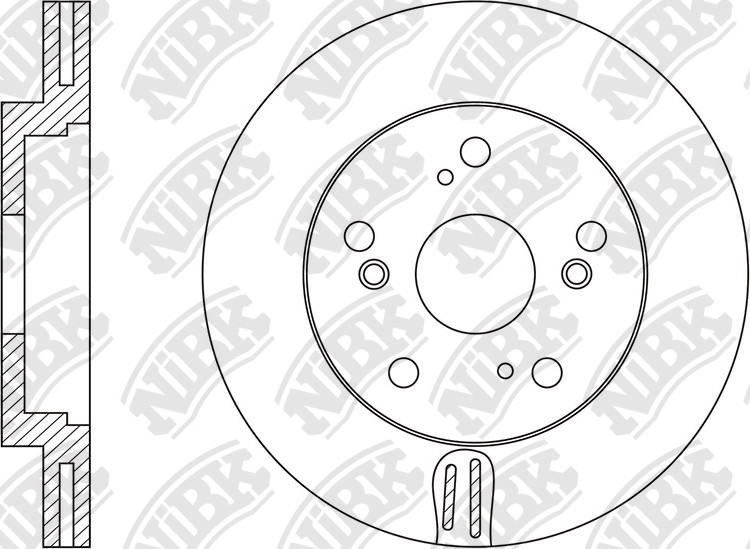

ROTOR DISC » RN1600V
Specification
Type
Vented
Outter Ø
293
Num. of holes
5
Disc Thickness (Max)
25
Height
47.3
Centering Diameter
64
Pitch Circle Ø
114.3
Front/Rear
Front
Drum Ø:
143
Disc Thickness (Min)
23.5
Structure Material
G3000
Cross Reference
HONDA
45251-T2B-J00
HONDA
45251-T2B-J01
HONDA
45251-T2F-A50
HONDA
45251-T2F-A51
HONDA
45251-T2G-A00
HONDA
45251-T2G-A01
HONDA
45251-T2J-H00
HONDA
45251-T2J-H01
HONDA
45251-T2J-H02
HONDA
45251-T2M-T00
HONDA
45251-T2M-T01
HONDA
45251-T3V-A00
HONDA
45251-T3V-A01
HONDA
45251-T7W-A01
HONDA
45251-T7W-A02
HONDA
45251-T8M-G01
HONDA
45251-TGN-E00
HONDA
45251-TV2-E00
HONDA
45251-TV2-E01
HONDA
45251-TV2-E02
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 07.17~ | 1500 | L15B# | CV1 LHD | RN1418V | PN28005 | RN1409 | PN8822 | |
| 10.20~ | 1500 | L15B# | CV1 RHD | RN1418V | PN28005 | PN8828 | ||
| 07.17~10.20 | 1500 | L15BE | CV1 US | RN1418VRN2227V | PN8819PN28005 | RN1409 | PN8822 | |
| 07.17~10.20 | 1500 | L15BG | CV1 RHD | RN1418V | PN28005 | PN8828 | ||
| 10.21~04.23 | 1500 | L15BN | CV1 KH CHINA | RN1418V | PN28005 | RN1409 | PN8828 | |
| 06.13~05.16 | 2000 | LFA | CR6 JPN | RN1418V | PN28005 | RN1609 | PN8807PN8397 | FN0663 |
| 06.13~03.16 | 2000 | LFA-MF8 | CR5 JPN | RN1418V | PN28005 | RN1609 | PN8807 | FN0663 |
| 06.13~09.15 | 2000 | LFA-MF8 | CR6 | RN1418V | PN28005 | RN1425 | PN8864 | |
| 09.15~09.17 | 2000 | LFA-MF8 | CR6 | RN1418V | PN28005 | RN1409 | PN8864 | |
| 11.16~08.19 | 2000 | R20Z | CR1 | RN1418V | PN28005 | RN1609 | PN8807 | FN0663 |
| 09.12~09.15 | 2000 | R20Z | CR1 RHD | RN1418V | PN28005 | RN1609 | PN8398PN8807 | FN0663 |
| 01.12~11.16 | 2400 | K24V3 | CR2 CH KY | RN1418V | PN28005 | RN2470 | PN8812 | |
| 09.15~09.17 | 2400 | K24W | CR2 US | RN1218VRN1418VRN1663V | PN28005PN0647PN8485 | RN1425 | PN8864 | FN0663 |
| 09.12~09.15 | 2400 | K24W | CR2 US KA | RN1418V | PN28005 | RN1425 | PN8864 | |
| 09.12~09.15 | 2400 | K24W | CR2 US KY | RN1418V | PN28005 | RN1425 | PN8864 | |
| 11.16~08.17 | 2400 | K24W# | CR2 LHD | RN1418V | PN28005 | RN1425RN1409 | PN8864 | |
| 11.16~08.18 | 2400 | K24W3 | CR2 RHD TH | RN1418V | PN28005 | RN1609 | PN8807 | FN0663 |
| 11.16~08.18 | 2400 | K24W6 | CR2 RHD MA | RN1418V | PN28005 | RN1609 | PN8807 | FN0663 |
| 01.12~11.16 | 2400 | K24WZ | CR2 RHD | RN1418V | PN28005 | RN1609 | PN8807 | FN0663 |
| 06.13~09.15 | 3500 | J35Y | CR3 GL | RN1418V | PN28005 | RN1425 | PN8864 | |
| 09.15~08.17 | 3500 | J35Y | CR3 GL | RN1418V | PN28005 | RN1425 | PN8864 | |
| 06.13~08.17 | 3500 | J35Y | CR3 GL CHINA | RN1418V | PN28005 | RN2470 | PN8812 | |
| 09.12~08.17 | 3500 | J35Y | CR3 US | RN1418V | PN28005 | RN1425 | PN8864 |
| 08.12~12.17 | 2400 | K24W | CT2 | RN1418V | PN28005 | RN1425 | PN8864 | |
| 08.12~12.17 | 3500 | J35Y | CT2 | RN1418VRN1663V | PN28005PN0647 | RN1425 | PN8864 |
| 05.17~ | 1000 | P10A2 | FK6 | RN1600V | PN8863 | RN2283 | PN8813 | |
| 05.16~08.19 | 1500 | L15B | FC1 LHD | RN1600V | PN8863 | RN2283 | PN8813 | |
| 05.16~03.21 | 1500 | L15B7 | FK7 RHD | RN1600V | PN8863 | RN2283 | PN8813 | |
| 05.17~03.21 | 1600 | N16A1 | FC8 | RN1600V | PN8863 | RN2283 | PN8813 | |
| 01.14~12.16 | 1600 | N16A1 | FK | RN1600V | PN8863 | RN1599 | PN1840 | |
| 02.13~12.16 | 1600 | N16A1 | FK3 | RN1600V | PN8863 | RN1599 | PN1840 | |
| 02.12~12.16 | 1800 | R18Z4 | FK | RN1600V | PN8863 | RN1599 | PN1840 | |
| 01.12~01.15 | 1800 | R18Z4 | FK2 HB | RN1600V | PN8863 | RN1599 | PN1840 |
| 11.14~09.18 | 1500 | L15 | RU1(LHD) | RN1418V | PN28005 | RN1409 | PN8812 | |
| 09.18~ | 1500 | L15BY | JHMRU1 LHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 01.15~01.18 | 1500 | L15Z | RU1 RHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 01.18~08.21 | 1500 | L15Z | RU1 RHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 05.15~ | 1600 | N16A3 | RU8 RHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 08.18~ | 1800 | R18Z7 | RU5 LHD PR | RN1418V | PN28005 | RN1409 | PN8812 | |
| 11.14~09.18 | 1800 | R18Z9 | RU5 LHD KD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 08.18~ | 1800 | R18Z9 | RU5 LHD KY | RN1418V | PN28005 | RN1409 | PN8812 | |
| 11.14~09.18 | 1800 | R18Z9 | RU6 LHD US | RN1418V | PN28005 | RN1409 | PN8812 | |
| 09.18~05.22 | 1800 | R18Z9 | RU6 LHD US | RN1418V | PN28005 | RN1409 | PN8812 | |
| 08.18~ | 1800 | R18ZF | RU5 | RN1418V | PN28005 | RN1409 | PN8812 | |
| 01.14~09.18 | 1800 | R18ZF | RU5 RHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 11.14~09.18 | 1800 | R18ZG | RU5 LHD US | RN1418V | PN28005 | RN1409 | PN8812 | |
| 01.14~09.18 | 1800 | R18ZG | RU5 RHD | RN1418V | PN28005 | RN1409 | PN8812 | |
| 09.18~05.22 | 1800 | R18ZG | RU5 RHD | RN1418V | PN28005 | RN1409 | PN8812 |
| 02.16~ | 2000 | LFA | RC4 JPH | RN1418V | PN28005 | RN1259 | PN8807 | FN8003 |
| 12.21~ | 2000 | LFB11 | RC4 LHD | RN1418V | PN28005 | RN2470 | PN8812 | |
| 10.13~ | 2400 | K24W | MRC1 | RN1218VRN1418V | PN28005 | RN1259 | PN8807 | FN8003 |
| 10.17~10.20 | 2400 | K24W | RC1 LHD | RN1418V | PN28005 | RN1259 | PN8807 | FN8003 |
| 02.14~01.18 | 2400 | K24W | RC1 RHD | RN1418V | PN28005 | RN1259 | PN8807 | FN8003 |
