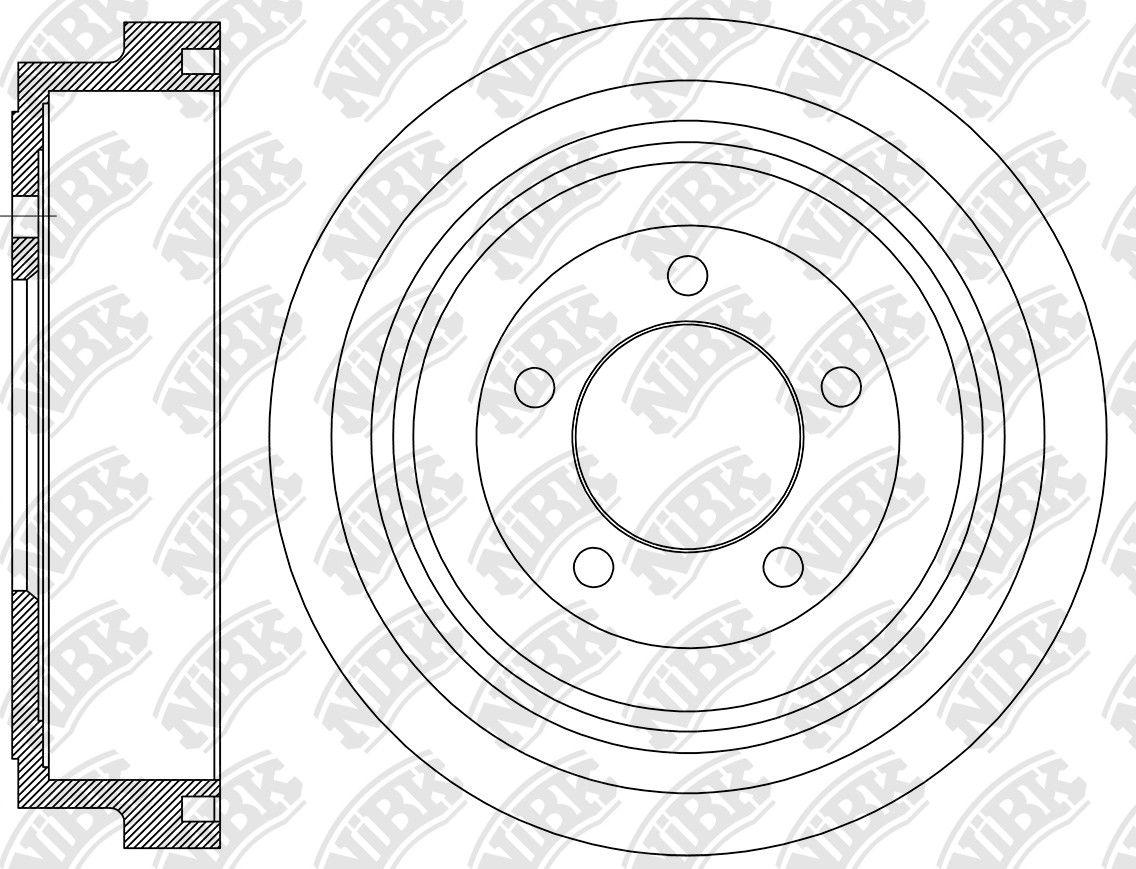

DRUM BRAKE » DN1405
Specification
Outter Ø
262
Num. of holes
5
Hole Ø
12.9
Centering Diameter
100
Height
63.8
Pitch Circle Ø
139,7
Drum Ø
220
Structure Material
G3000
Cross Reference
GM
18039993
GM
30020933
GM
30023805
MAZDA
1A51-26-251
SUZUKI
43511-65D00
SUZUKI
43511-65D00-000
SUZUKI
43511-67D00
SUZUKI
43511-81A00
SUZUKI
43511-81A00-000
SUZUKI
43511-81A02
SUZUKI
43511-81A02-000
SUZUKI
43511-82A00
SUZUKI
43511-82A00-000
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 10.98~ | 660 | K6A | JB23W | RN1038RN1658 | PN9118 | DN1405 | FN5524 | |
| 01.98~04.00 | 1300 | G13B | JB33W | RN1038 | PN9118 | DN1405 | FN5524 | |
| 10.98~10.02 | 1300 | G13BB | JB33V | RN1038 | PN9118 | DN1405 | FN5524 | |
| 07.12~05.19 | 1300 | M13A | JB4# LHD | RN1038RN1658 | PN9118 | DN1405 | FN5524 | |
| 10.98~08.05 | 1300 | M13A | JB43V LHD | RN1038 | PN9118 | DN1405 | FN5524 | |
| 10.98~07.12 | 1300 | M13A | JB43V RHD | RN1038RN1658 | PN9118 | DN1405 | FN5524 | |
| 07.12~05.19 | 1300 | M13A | JB43V RHD | RN1658 | PN9118 | DN1405 | FN5524 | |
| 01.98~ | 1300 | M13A | JB43W JPN | RN1038 | PN9118 | DN1405 | FN5524 |
