NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN1140V

Product
Application

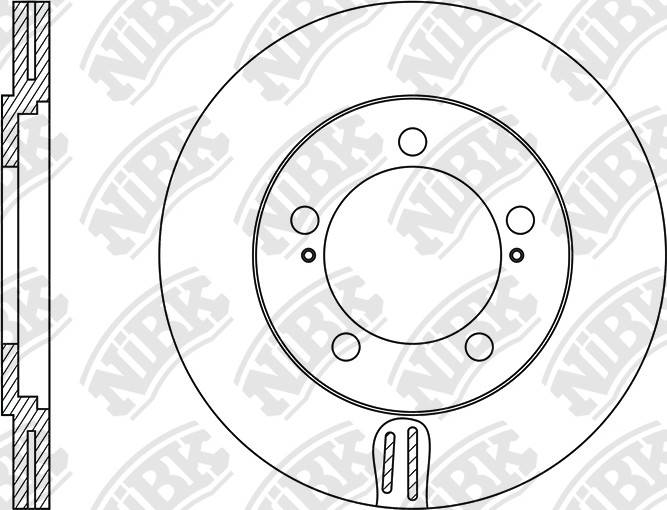

ROTOR DISC » RN1140V

Specification

Type

Vented

Disc Thickness (Max)

22

Num. of holes

5

Height

29

Centering Diameter

108.3

Front/Rear

Front

Pitch Circle Ø

140

Outter Ø

310

Drum Ø:

181

Hole Ø:

12.7

Disc Thickness (Min)

20

Structure Material

G3000

Cross Reference

SUZUKI

55211-65D13

SUZUKI

55211-65D14

SUZUKI

55211-65D21

SUZUKI

5521165D10

SUZUKI

5521165D10000

SUZUKI

5521165D11

SUZUKI

5521165D11000

SUZUKI

5521165D12

SUZUKI

5521165D12000

years	Eng	Eng No	BodyBody	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

SUZUKI » Escudo

11.98~03.05	2000	J20A	TL52W	RN1140V	PN9382		FN9958
02.98~04.00	2000	RF	TD32W	RN1140V	PN9382		FN9958
02.98~06.03	2500	H25A	TD62W	RN1140V	PN9382		FN9958
11.00~05.05	2700	H27A	TX92W	RN1140V	PN9382		FN9968

SUZUKI » Grand Vitara

06.00~01.05	2000	J20A	TL52W	RN1140V	PN9382	DN1676	FN9958
01.98~10.03	2000	RFM	SQ420WD	RN1140V	PN9382	DN1405 DN1676	FN9958
01.98~12.05	2500	H25A	TD62V LHD	RN1140V	PN9382	DN1676	FN9958
01.98~12.05	2500	H25A	TD62V RHD	RN1140V	PN9382	DN1676	FN9958

SUZUKI » Grand Vitara XL-7

01.04~12.06	2000	RHW	JA420WD	RN1140V	PN9806	DN1404	FN9968
05.01~08.03	2700	H27A	TX92V LHD	RN1140V	PN9382	DN1404	FN9968
08.03~01.07	2700	H27A	TX92V LHD	RN1140V	PN9382	DN1404	FN9968
05.01~01.07	2700	H27A	TX92W RHD	RN1140V	PN9382	DN1404	FN9968
