ROTOR DISC » RN1415V

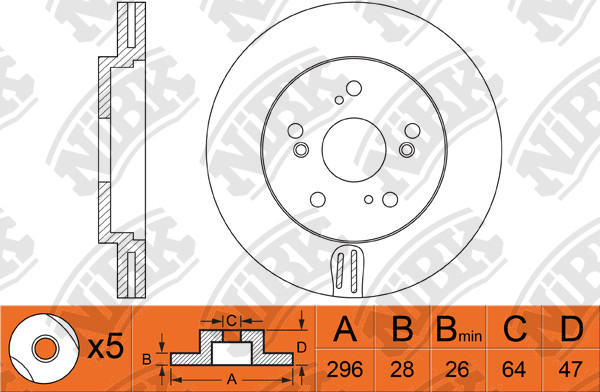

Specification
Type
Vented
Disc Thickness (Max)
28
Num. of holes
5
Height
47.2
Centering Diameter
64.2
Front/Rear
Front
Pitch Circle Ø
114.3
Outter Ø
296
Drum Ø:
153
Disc Thickness (Min)
26
Structure Material
G3000
Alternative
Cross Reference
GREAT WALL
3501011XKZ16A
HAVAL
3501011XKZ16A
HONDA
45251-STK-A00
HONDA
45251-STK-A20
HONDA
45251-SWA-A00
HONDA
45251-SWA-A20
HONDA
45251-SWA-A21
HONDA
45251-SWA-A22
HONDA
45251-SWE-000
HONDA
45251-SWN-000
HONDA
45251-SWN-010
HONDA
45251-SXS-A00
HONDA
45251-SXS-A01
HONDA
45251-T0G-A00
HONDA
45251-T0N-000
| years | Eng | Eng No | BodyBody | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 09.14~ | 1500 | GW4G15 | H6 | RN1415VRN2556V | PN8802 | RN2492 | PN8397PN8813 | FN8003 |
| 04.17~ | 2000 | GW4C20 | H6 | RN2556VRN1415V | PN6048PN6046 | RN2619V | PN8813 | |
| 09.14~ | 2000 | GW4D20 | H6 | RN1415V | PN8802 | RN2492 | PN8397 | FN8003 |
| 09.14~ | 2400 | RN1415V | PN6046 | PN8813 |
| 01.07~01.11 | 2000 | R20A | RE1 | RN1415V | PN8802 | RN1259 | PN8807PN8398 | FN8003 |
| 01.06~09.09 | 2000 | R20A | RE2 | RN1415V | PN8802 | RN1259 | PN8807PN8398 | FN8003 |
| 09.09~08.12 | 2000 | R20A | RE2 | RN1415V | PN8802 | RN1259 | PN8807PN8398 | FN8003 |
| 10.11~01.19 | 2000 | R20A | RM1 JPN | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.11~01.19 | 2000 | R20A | RM1 RHD | RN1415VRN1243V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.11~01.19 | 2000 | R20A5 | RM1 LHD PH | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 12.11~10.14 | 2000 | R20A5 | RM2 RHD | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.14~01.19 | 2000 | R20A5 | RM6 MEX | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.11~09.16 | 2400 | K24 | RM3 | RN1415V | PN8802 | RN1618RN1259 | PN8807 | FN8003 |
| 12.11~08.15 | 2400 | K24 | RM4 RHD | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.06~11.11 | 2400 | K24A | RE3 JPN | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.06~11.11 | 2400 | K24A | RE4 JPN | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 12.11~09.16 | 2400 | K24A | RM4 JPN | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 08.11~08.15 | 2400 | K24A | RM4 LHD | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.14~10.16 | 2400 | K24W | RM3 LHD KY | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 03.07~03.13 | 2400 | K24Z | RE3 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.09~08.12 | 2400 | K24Z | RE4 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.06~09.09 | 2400 | K24Z | RE4 CHN LHD | RN1415V | PN8802 | RN1603 | PN8807 | FN8003 |
| 12.11~10.14 | 2400 | K24Z | RM3 LHD KK | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 12.11~10.14 | 2400 | K24Z | RM3 RHD KU | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.06~09.09 | 2400 | K24Z1 | RE4 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.12~01.21 | 2400 | K24Z9 | RM3 VTN | RN1415V | PN8802 | RN1618RN1259 | PN8807 | FN8003 |
| 12.11~10.14 | 2400 | K24 | RM4 US | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.14~10.16 | 2400 | K24 | RM4 US | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 10.06~09.09 | 2400 | K24Z | RE3 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.09~01.12 | 2400 | K24Z | RE3 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.06~09.09 | 2400 | K24Z | RE4 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 09.09~12.11 | 2400 | K24Z | RE4 | RN1415V | PN8802 | RN1259 | PN8807 | FN8003 |
| 12.11~10.14 | 2400 | K24Z7 | RM3 US KA, KK | RN1415V | PN8802PN8485 | RN1259 | PN8807 | FN8003 |
