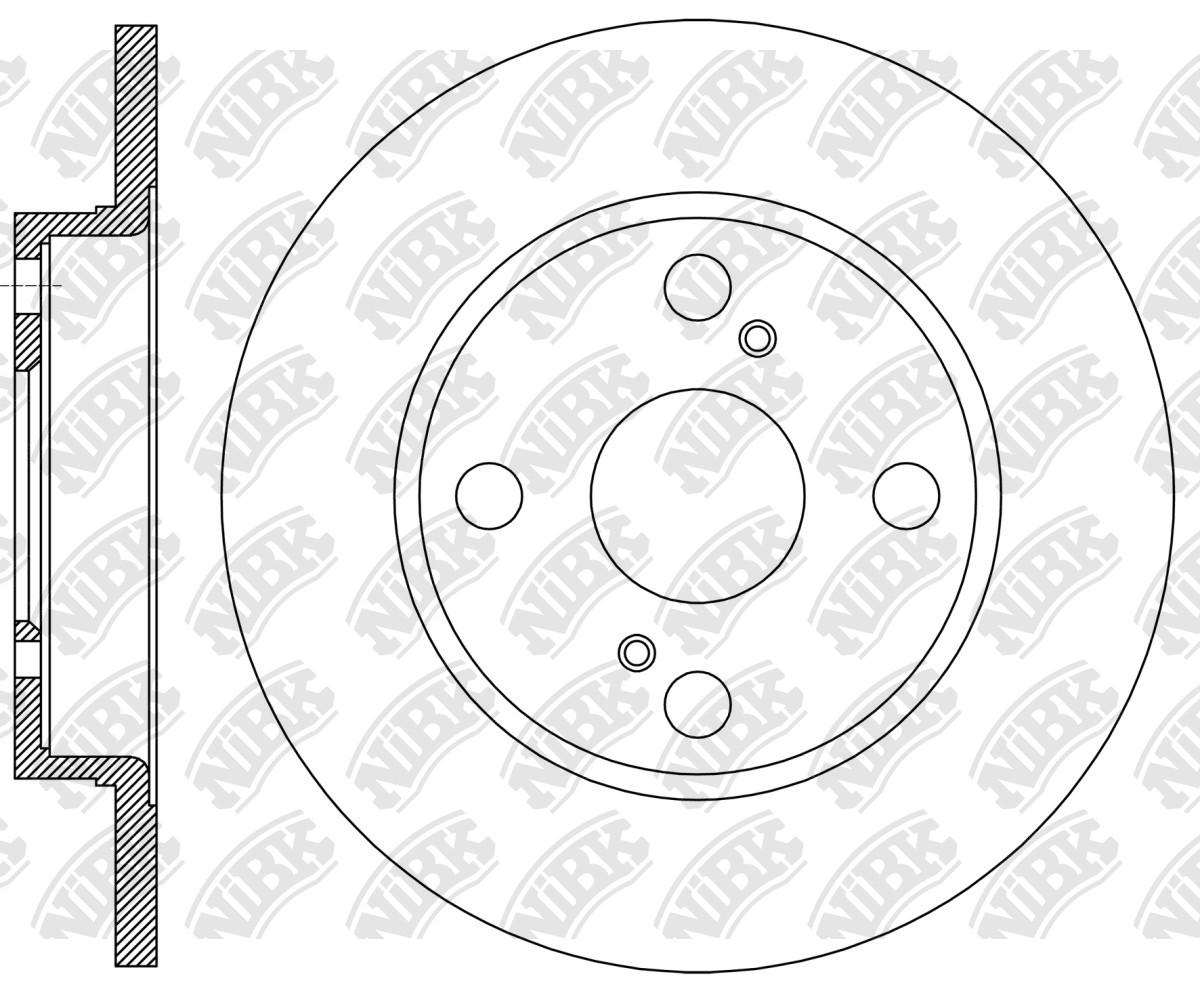

ROTOR DISC » RN2394
Specification
Type
Solid
Outter Ø
228
Num. of holes
4
Hole Ø:
12.7
Disc Thickness (Max)
9
Disc Thickness (Min)
8
Height
34.2
Centering Diameter
62
Pitch Circle Ø
100
Drum Ø:
127
Front/Rear
Rear
Structure Material
G3000
Cross Reference
BENDIX
BDS2137
SUZUKI
55611-52R00
SUZUKI
55611-52R01
SUZUKI
55611-M68P00
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 02.16~01.22 | 1000 | K10C | WB42S | RN2393V | PN5562 | RN2394 | PN9808FN9805 | |
| 02.16~01.22 | 1200 | K12C | WB32S | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 06.15~01.22 | 1400 | K14B | WB52S LHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 06.15~01.22 | 1400 | K14B | WB52S RHD | RN2393V | PN5562 | RN2394 | FN9805PN9808 | |
| 10.18~01.22 | 1400 | K14B | WB52S RHD | RN2393V | RN2394 | FN9805 |
| 12.16~ | 1000 | K10C-T | A2L310 RHD | RN2393V | PN5562 | RN2394 | PN9808 | |
| 12.16~ | 1000 | K10C-T | ZC13S JPN | RN2393V | PN5562 | RN2394 | PN9808 | |
| 01.20~ | 1200 | K12D | A2L412-4 RHD | PN5562 | RN2394 | PN9808 | ||
| 01.17~03.20 | 1200 | K12M | ZC63S RHD HB | RN2393V | PN5562 | RN2394 | PN9808 | |
| 03.20~01.24 | 1200 | K12M | ZC6C LHD HB | RN2393V | PN5562 | RN2394 | PN9808 | |
| 01.17~ | 1200 | K12MS | ZC63S | RN2393VRN2461V | PN5562PN9812 | RN2394DN1131 | PN9808FN9806 |
