NiBK Brakes:: Application Cross Reference and Image for NiBK : ROTOR DISC : RN25001

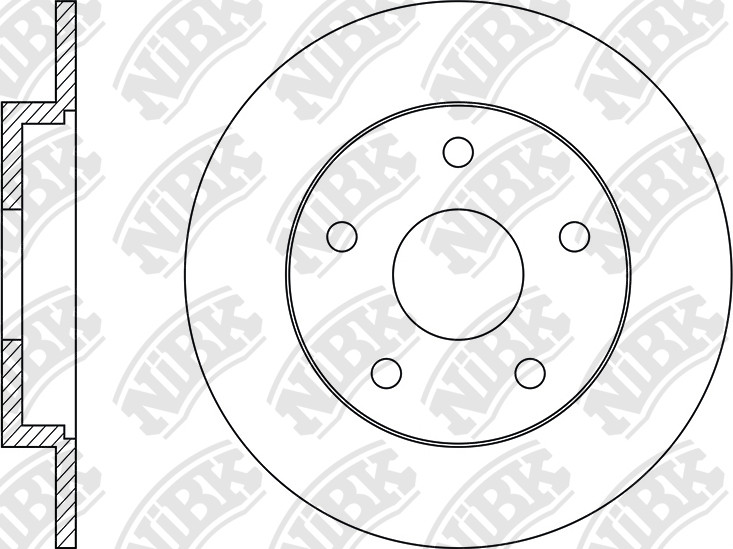

ROTOR DISC » RN25001

Specification

Type

Solid

Outter Ø

302

Num. of holes

5

Disc Thickness (Max)

11

Height

40.8

Centering Diameter

72

Pitch Circle Ø

114.3

Front/Rear

Rear

Disc Thickness (Min)

9

Drum Ø:

152

Structure Material

G3000

Cross Reference

MAZDA

C23Y26251A

MAZDA

C26Y-26-251

MAZDA

C26Y-26-251A

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

MAZDA » Biante

07.08~05.13	2000	LF-VD	CCEAW	RN1194V	PN0365	RN25001	PN2702
07.08~05.13	2000	LF-VD	CCEFW	RN1194V	PN0365	RN25001	PN2702
06.09~05.13	2000	LF-VDS	CCEFW	RN1194V	PN0365	RN25001	PN2702
05.13~03.18	2000	PE-VPS	CC1071 RHD	RN1194V	PN0365	RN25001	PN2702
05.13~03.18	2000	PE-VPS	CCFFW JPN	RN1194V	PN0365	RN25001	PN2702
07.08~05.13	2300	L3-VE	CC3FW	RN1194V	PN0365	RN25001	PN2702

MAZDA » Mazda 5

06.10~08.17	1600	Y6	CW	RN1193V RN1194V	PN0365	RN25001 RN1373	PN2702
06.10~08.17	1800	L8	CW	RN1193V RN1194V	PN0365	RN1373 RN25001	PN2702
02.05~10.10	1800	L823	CR	RN1194V RN1193V	PN0365	RN25001 RN1373	PN2702
06.10~08.17	2000	LF-VE	CW	RN1193V RN1194V	PN0365	RN25001 RN1373	PN2702
06.10~08.17	2000	LF5H	CW	RN1194V RN1193V	PN0365	RN25001 RN1373	PN2702
02.05~06.10	2000	LFF7	CR	RN1193V RN1194V	PN0365	RN25001 RN1373	PN2702
02.05~06.10	2000	LFF7	CR19 EU LHD	RN1194V RN1193V	PN0365	RN1373 RN25001	PN2702
10.10~08.17	2000	PE-VPS	CW	RN1193V RN1194V	PN0365	RN1373 RN25001	PN2702
02.05~06.10	2000	RF7J	CR	RN1193V RN1194V	PN0365	RN25001 RN1373	PN2702
03.08~10.10	2300	L3-V#	AUCV02 US	RN1193V RN1194V	PN0365	RN25001	PN2702
09.04~03.08	2300	L3-VE	CR	RN1193V RN1194V	PN0365	RN1373 RN25001	PN2702
06.10~08.17	2500	L5-VE	CW	RN1194V	PN0365	RN25001	PN2702

MAZDA » Premacy

02.05~07.10	2000	FS7#	CR19	RN1194V	PN0365	RN25001	PN2702
12.04~08.07	2300	L3-VE	CR3W	RN1193V RN1194V	PN0365	RN1369 RN25001	PN2702
08.07~07.10	2300	L3-VE	CR3W	RN1194V	PN0365	RN25001	PN2702
