ROTOR DISC » RN1193V

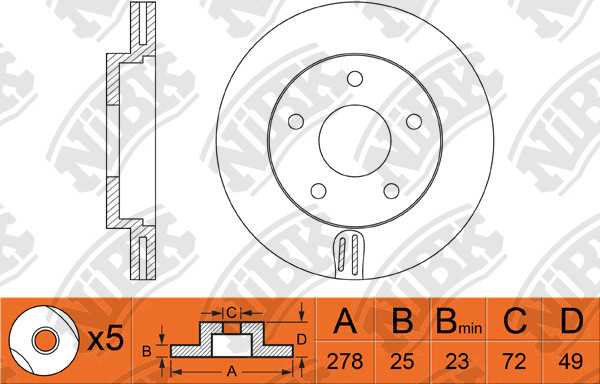

Specification
Type
Vented
Disc Thickness (Max)
25
Num. of holes
5
Height
49
Centering Diameter
72
Pitch Circle Ø
114.3
Front/Rear
Front
Outter Ø
278
Drum Ø:
140
Disc Thickness (Min)
23.4
Structure Material
G3000
Variation
Alternative
Cross Reference
MAZDA
BP4Y3325XB
MAZDA
BP4Y3325XC
MAZDA
BP4Y3325XD
MAZDA
C24Y3325XA
MAZDA
C24Y3325XB
MAZDA
C24Y3325XC
MAZDA
C24Y3325XD
NISSAN
40206-HA00B
NISSAN
40206-HA00D
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.09~01.13 | 1500 | ZY-5 | BL5FW | RN1193V | PN0365 | RN1369 | PN2702 | |
| 10.03~06.09 | 1500 | ZY-VE | BK5P | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 01.09~12.13 | 1500 | ZY-VE | BL5FP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.09~11.13 | 1600 | Z6 | BL6FJ | RN1193V | PN0365 | RN1369 | PN2702 | |
| 03.06~03.09 | 2000 | LF# | SDN LHD | RN1193V | PN0365 | RN1369 | PN2702 | |
| 10.03~06.06 | 2000 | LF-DE | BKEP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.09~09.11 | 2000 | LF-VDS | BLEFP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.09~09.11 | 2000 | LF-VDS | BLEFW | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.06~06.09 | 2000 | LF-VE | BKEP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.09~09.11 | 2000 | LF-VE | BLEAP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.11~11.13 | 2000 | LF-VE | BLEAP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.09~09.11 | 2000 | LF-VE | BLEAW | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.11~11.13 | 2000 | LF-VE | BLEAW | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.11~11.13 | 2000 | PE-VPS | BLFFP | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.11~11.13 | 2000 | PE-VPS | BLFFW | RN1193V | PN0365 | RN1369 | PN2702 |
| 06.03~07.06 | 1300 | ZJ | AEBA10 HB EUL | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.03~08.11 | 1300 | ZJ | BK | RN1193V | RN1369 | PN2702 | ||
| 01.09~11.13 | 1600 | B6-ZE | BL SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 11.08~07.11 | 1600 | Y6 | AEBA12 HB | RN1193V | PN0365 | RN1369 | PN2702 | |
| 07.11~07.13 | 1600 | Y6 | AEBA13 HB | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.03~08.11 | 1600 | Y6 | BK | RN1193V | RN1369 | PN2702 | ||
| 11.08~11.13 | 1600 | Y6 | BL SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.03~03.09 | 1600 | Z6 | 6BK SDN | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 05.06~03.09 | 1600 | Z6 | 7BK HB | RN1193V | PN0365 | FN51001 | ||
| 06.03~06.06 | 1600 | Z6 | 7BK SDN | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 11.08~11.11 | 1600 | Z6 | ABBA12 HB | RN1193V | PN0365 | RN1369 | PN2702 | |
| 03.06~02.09 | 1600 | Z6 | AEBA11 SD LHD | RN1193V | PN0365 | RN1369 | PN2702 | |
| 11.08~07.11 | 1600 | Z6 | AEBA12 SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 07.11~07.13 | 1600 | Z6 | AEBA13 HB | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.11~11.13 | 1600 | Z6 | ALBA 14 SDN LHD | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.03~05.06 | 1600 | Z6 | ALBA11 SD LHD | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 05.06~02.09 | 1600 | Z6 | ALBA12 SD LHD | RN1193V | PN0365 | FN51001 | ||
| 01.03~08.11 | 1600 | Z6 | BK HB | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 01.03~03.09 | 1600 | Z6 | BK SDN US | RN1193V | PN0365 | RN1369 | PN2702FN51001 | |
| 05.06~11.13 | 1600 | Z6 | BK12 SDN CHL | RN1193V | PN0365 | PN2702FN51001 | ||
| 11.08~11.13 | 1600 | Z6 | BL SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 09.03~04.06 | 1600 | Z6 | HB ABBA10 RHD | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.03~07.06 | 1600 | Z6 | ZBK SDN LHD | RN1193V | PN0365 | RN1369 | FN51001PN2702 | |
| 07.06~03.09 | 2000 | LF | BK SDN US | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.03~07.06 | 2000 | LF# | ABBA10 SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 02.11~11.13 | 2000 | LF# | JM0BL HB | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.09~11.13 | 2000 | LF-VDS | BL | RN1193V | PN0365 | RN1369 | PN2702 | |
| 03.06~03.09 | 2000 | LF-VE | ABBA11 SDN | RN1193V | PN0365 | RN1369 | PN2702 | |
| 01.09~11.13 | 2000 | LF-VE | PP1BL10 | RN1193V | PN0365 | RN1369 | PN2702 | |
| 11.08~10.11 | 2000 | LF17 | BL SDN US | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.11~11.13 | 2000 | PE-VPS | BL SDN US | RN1193V | PN0365 | RN1369 | PN2702 | |
| 06.11~11.13 | 2000 | PE-VPS | JM0BL SDN | RN1193V | PN0365 | RN1369 | PN2702 |
| 06.10~08.17 | 1600 | Y6 | CW | RN1193VRN1194V | PN0365 | RN25001RN1373 | PN2702 | |
| 06.10~08.17 | 1800 | L8 | CW | RN1194VRN1193V | PN0365 | RN25001RN1373 | PN2702 | |
| 02.05~10.10 | 1800 | L823 | CR | RN1193VRN1194V | PN0365 | RN1373RN25001 | PN2702 | |
| 06.10~08.17 | 2000 | LF-VE | CW | RN1194VRN1193V | PN0365 | RN1373RN25001 | PN2702 | |
| 06.10~08.17 | 2000 | LF5H | CW | RN1193VRN1194V | PN0365 | RN1373RN25001 | PN2702 | |
| 02.05~06.10 | 2000 | LFF7 | CR | RN1194VRN1193V | PN0365 | RN25001RN1373 | PN2702 | |
| 02.05~06.10 | 2000 | LFF7 | CR19 EU LHD | RN1194VRN1193V | PN0365 | RN25001RN1373 | PN2702 | |
| 10.10~08.17 | 2000 | PE-VPS | CW | RN1193VRN1194V | PN0365 | RN1373RN25001 | PN2702 | |
| 02.05~06.10 | 2000 | RF7J | CR | RN1194VRN1193V | PN0365 | RN1373RN25001 | PN2702 | |
| 03.08~10.10 | 2300 | L3-V# | AUCV02 US | RN1193VRN1194V | PN0365 | RN25001 | PN2702 | |
| 09.04~03.08 | 2300 | L3-VE | CR | RN1194VRN1193V | PN0365 | RN1373RN25001 | PN2702 |
| 02.05~07.10 | 2000 | LF# | CR19 | RN1193V | PN0365 | RN1369RN1373 | PN2702 | |
| 02.05~09.07 | 2000 | LF-DE | CREW | RN1193V | PN0365 | RN1369RN1373 | PN2702 | |
| 08.07~07.10 | 2000 | LF-V# | CREW | RN1193V | PN0365 | RN1369RN1373 | PN2702 | |
| 05.10~07.16 | 2000 | LF-VD# | CWEFW | RN1193V | PN0365 | RN1369 | PN2702 | |
| 05.10~02.18 | 2000 | LF-VE | CWEAW | RN1193V | PN0365 | RN1373 | PN2702 | |
| 01.13~02.18 | 2000 | PE-VPS | CWFFW | RN1193V | PN0365 | PN2702 | ||
| 12.04~08.07 | 2300 | L3-VE | CR3W | RN1193VRN1194V | PN0365 | RN25001RN1369 | PN2702 |
