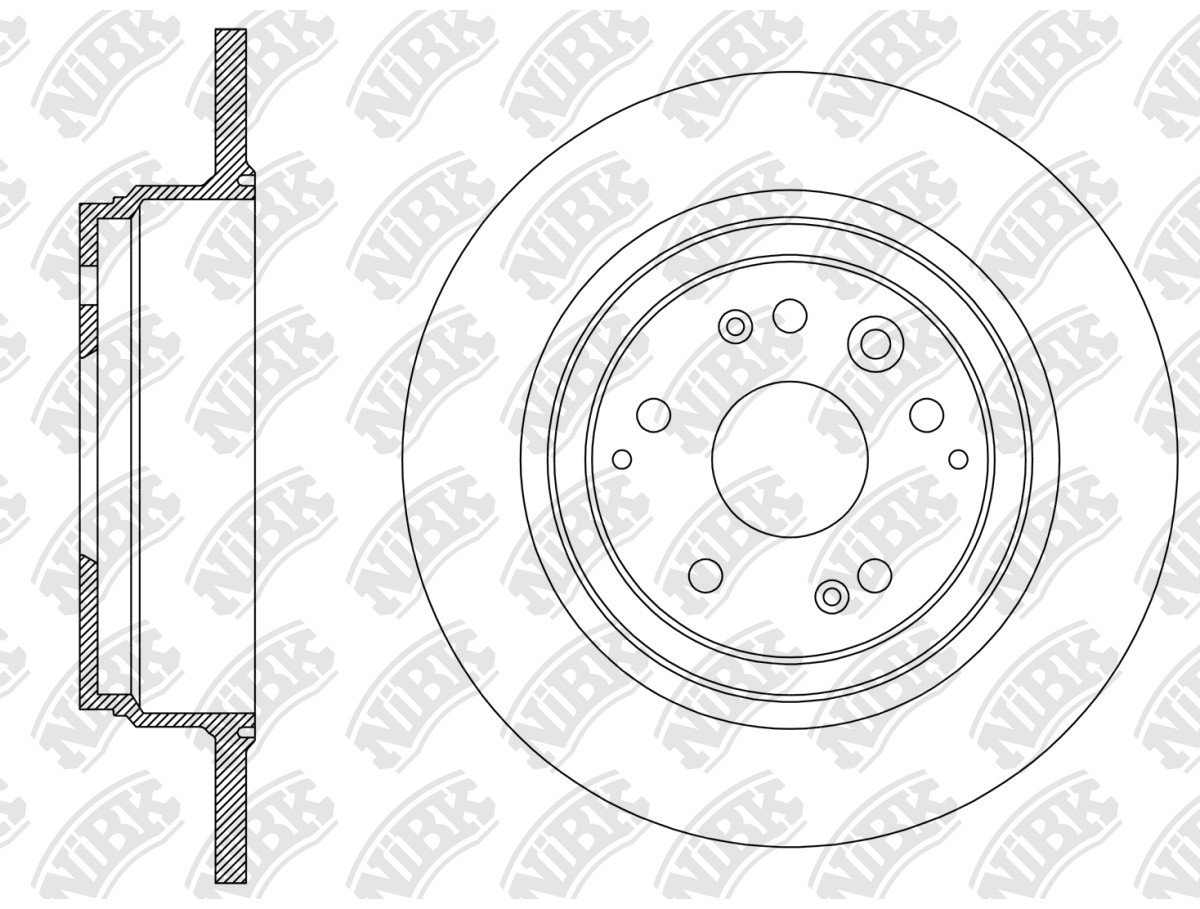

ROTOR DISC » RN2226

Specification

Type

Solid

Outter Ø

282

Num. of holes

5

Hole Ø:

12.7

Disc Thickness (Max)

9

Disc Thickness (Min)

7.5

Height

59.1

Centering Diameter

64.1

Pitch Circle Ø

114.3

Drum Ø:

170

Front/Rear

Rear

Structure Material

G3000

Cross Reference

BENDIX

145423

HONDA

42510-S0K-A00

HONDA

42510-SCV-A00

HONDA

42510-SEP-A00

years	Eng	Eng No	Body	Front Rotor	Front Brake	Rear Rotor	Rear Brake	Parking Shoe

ACURA » TL

03.01~09.03	3200	J32A1	UA5	RN1413V	PN8465	RN2226	PN8397	FN0570
10.03~08.08	3200	J32A3	UA6	RN2533V RN1413V	PN8465 PN0150W	RN2226	PN8397	FN0570

ACURA » TL Type-S

06.01~09.03	3200	J32A2	UA5	RN1413V	PN8465	RN2226	PN8397	FN0570
10.06~08.08	3500	J35A8	UA7	RN2533V	PN0150W	RN2226	PN8397	FN0570

HONDA » Element

04.03~07.05	2400	K24A	YH2 JPN	RN1218V	PN8485	RN2226	PN8397	FN0570
12.02~08.08	2400	K24A	YH2 US	RN1218V	PN8485	RN2226	PN8397	FN0570
08.08~05.11	2400	K24A	YH2 US	RN1218V	PN8485	RN2226	PN8397	FN0570

HONDA » Inspire

10.98~06.03	2500	J25A	UA4	RN1218V	PN8254	RN2226	PN8397	FN0570
10.98~06.03	3200	J32A	UA5	RN1413V	PN8465	RN2226	PN8397	FN0570
