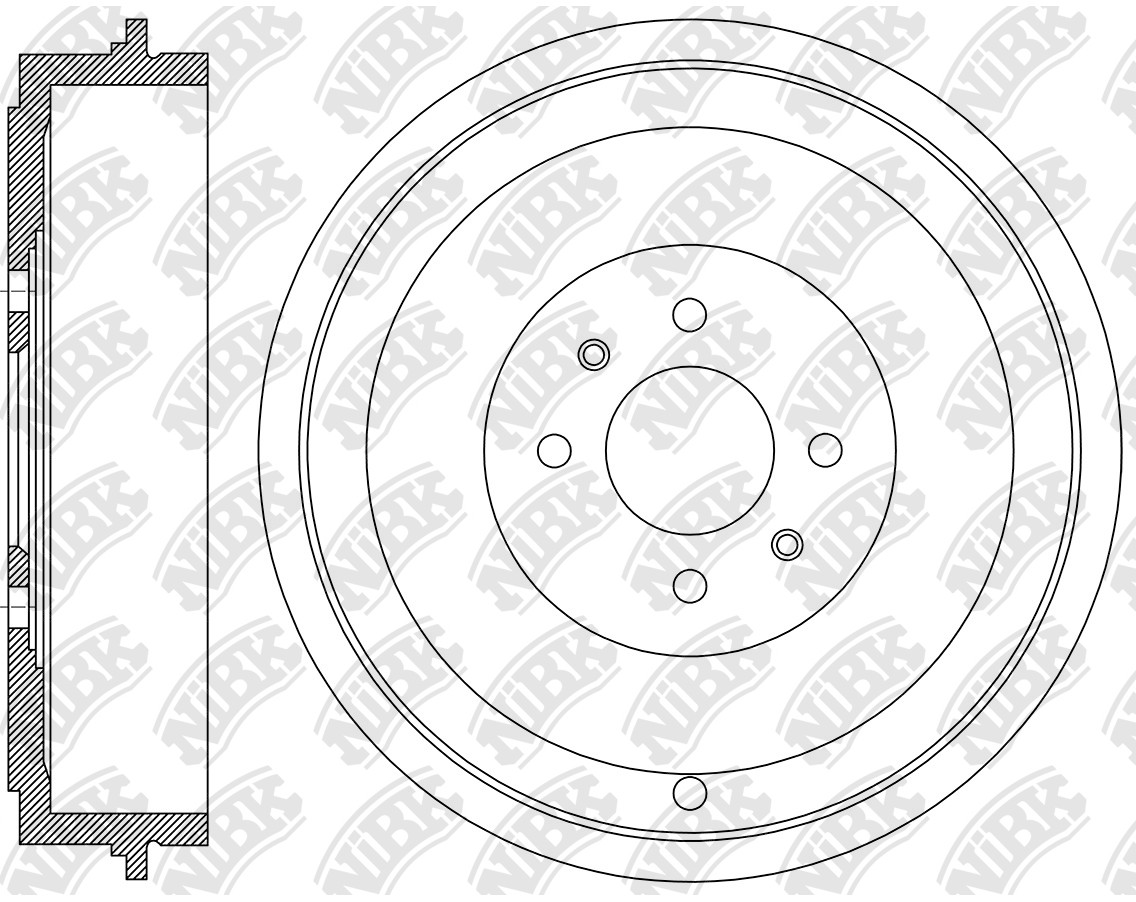

DRUM BRAKE » DN1697
Specification
Outter Ø
268
Num. of holes
4
Hole Ø
13.2
Centering Diameter
59
Height
61.1
Pitch Circle Ø
98
Drum Ø
228.3
Structure Material
G3000
Cross Reference
ALFA ROMEO
60810025
ALFA ROMEO
60814839
FIAT
51816526
FIAT
51903659
FIAT
52015299
FIAT
7569600
FIAT
7769850
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.09~01.15 | 1300 | 199 A3.000 | 263.122.0.5 | RN1022V | PN0748WPN0187W | DN1697 | FN41002 | |
| 10.05~01.16 | 1400 | 350 A1.000 | 223.116.2.0 | RN2026VRN1068V | PN0211W | DN1697 | FN41002 | |
| 01.09~01.15 | 1400 | 843 A1.000 | 263.111.0.5 | RN1022V | PN0748WPN0187W | DN1697 | FN41001 | |
| 01.09~01.15 | 1600 | 198 A3.000 | 263.223.0.5 | RN3007V | PN0187W | DN1697 | FN41001 | |
| 01.09~01.16 | 1600 | 263 A5.000 | 263.216.0.5 | RN3007V | PN0187WPN0748W | DN1697 | FN41001 |
| 11.04~ | 1300 | 188 A9.000 | 223.117.1.0 | RN1060V | PN0131 | DN1697 | FN0518 | |
| 11.05~ | 1300 | 199 A2.000 | 223.317.2.0 | RN2026VRN1068V | PN0187PN0211W | DN1697 | FN41002 | |
| 01.03~01.04 | 1900 | 223 A6.000 | 223.AXE.1.A | RN1060V | PN0131 | DN1697 | FN0518 | |
| 01.04~01.05 | 1900 | 223 A7.000 | 223.313.1.0 | RN1060V | PN0131 | DN1697 | FN0518 | |
| 01.05~01.16 | 1900 | 223 B1.000 | 223.313.2.0 | RN1068VRN2026V | PN0187PN0211W | DN1697 | FN41002 |
| 01.09~10.15 | 1300 | 4146296 | 8113877 | RN1022V | PN0187W | DN1697 | FN41001 | |
| 01.05~10.16 | 1300 | 5803907 | 7021886 | RN1068V | PN0211W | DN1697 | FN41002 |
| 06.99~04.01 | 1200 | 178 B5.000 | 178E | DN1697 | ||||
| 05.01~05.06 | 1200 | 188 A4.000 | 178E | DN1697 | ||||
| 06.06~ | 1300 | 178E | RN1060V | DN1697 | FN0800 | |||
| 06.99~06.02 | 1700 | 176 A3.000 | 178E | DN1697 | ||||
| 12.00~06.03 | 1900 | 178E | DN1697 | |||||
| 06.02~05.06 | 1900 | 188 A2.000 | 178E | DN1697 |
| 02.00~ | 1200 | 178 B5.000 | RN1060V | PN0631W | DN1697 | FN0800 | ||
| 02.00~ | 1200 | 188 A4.000 | RN1060V | PN0631W | DN1697 | FN0800 | ||
| 02.00~05.01 | 1700 | 176 A3.000 | RN1060V | PN0631W | DN1697 | FN0800 | ||
| 06.01~ | 1900 | 223 A6.000 | RN1060V | PN0631W | DN1697 | FN0800 |
| 09.04~ | 1900 | 188 B2.000 | DN1697 |
