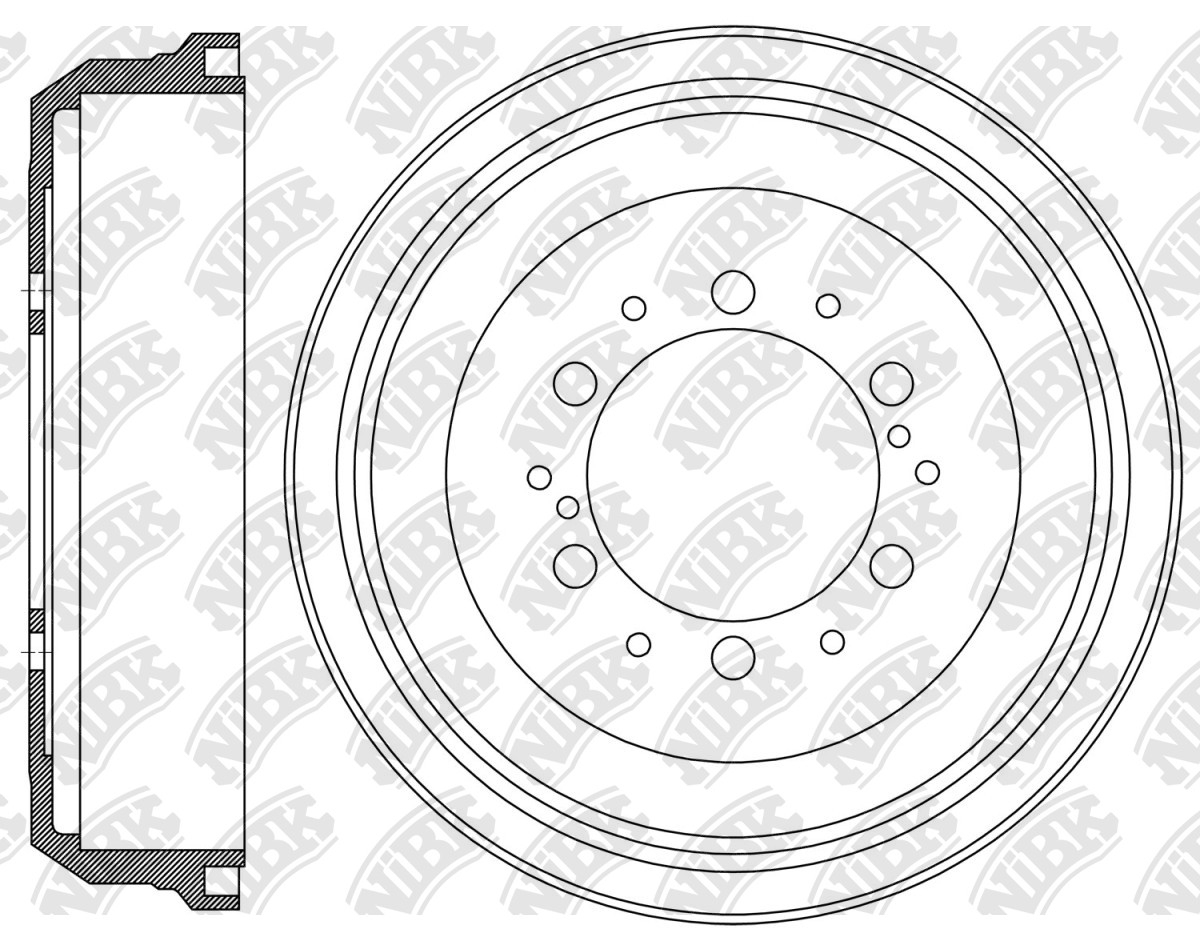

DRUM BRAKE » DN1254

Specification

Outter Ø
343
Num. of holes
6
Centering Diameter
107
Height
83
Pitch Circle Ø
139.7
Drum Ø
295
Structure Material
G3000
Hole Ø
14.5

Cross Reference

TOYOTA
42431-26210
years Eng Eng No Body Front Rotor Front Brake Rear Rotor Rear Brake Parking Shoe
01.05~ 2500 2KD-FTV KDH222L RN1330V PN1516 DN1210DN1254DN1103 FN2378FN2305
08.04~05.12 2500 2KD-FTV KDH222R RN1330V PN1516 DN1210DN1103DN1254 FN2305FN2378
01.05~02.14 3000 1KD-FTV KDH223R RN1330V PN1516 DN1103DN1210DN1254 FN2305FN2378
01.05~02.19 3000 5L-E LH222R RN1330V PN1516 DN1254DN1103 FN0686FN2378FN2305
01.05~ 2500 2KD-FTV KDH222R RN1330V PN1516 DN1210DN1103DN1254 FN2378FN0686FN2305

Exemption from liability: the catalog data is advisory and can be used for reference only
